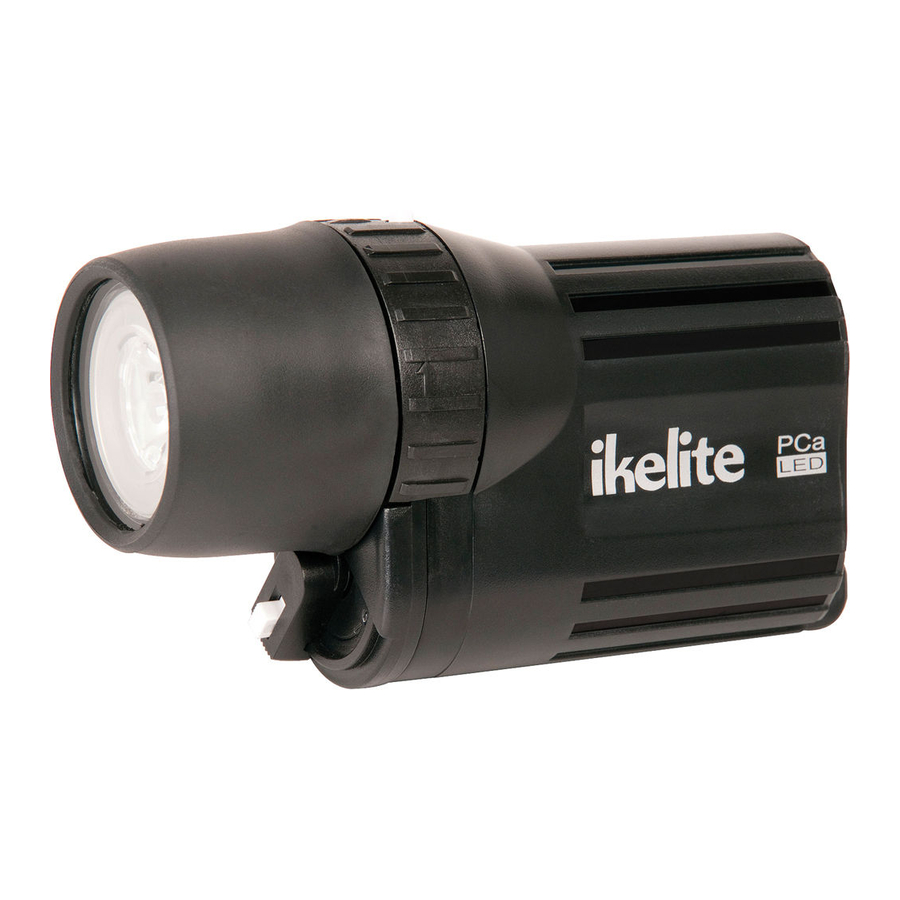

Ikelite PCa - LED Light Manual

PCa_LED_Light_Inst:Layout 1
The White Collar Lock Button must be
pushed "forward" and held to release
the Collar. Hold the body with one
hand while pushing the White Collar
Lock button forward with your finger.
Slide the Collar up about 1 /4" to
its "open" position while holding the
Collar Lock Button forward.
The Collar Lock Button can now be
released and the front of lite can be
pulled from the body.
Removable Battery Plate
N N O O T T E E : : Lithium-ion batteries are not recommended. Use of
lithium-ion batteries can lead to shortened LED life or LED failure.
Lift out the removable top battery plate and load six "AA" size alkaline
batteries into the body. Note the polarity chart is engraved on top of the
removable plate. Install batteries into the light body and then place the
top plate back into the body.
The "O" ring must be clean and have a very light coating of
silicone lube on the surface. Push the front into the body, h h o o l l d d i i n n g g i i t t
t t i i g g h h t t l l y y i i n n p p l l a a c c e e while pushing the Collar Lock back to the closed position.
Check that the Collar Lock Button has clicked into place securely.
1/24/08
O RING
Switch
Switch Lock
12:27 PM Page 1
Push White Collar Lock
button forward
and hold
Slide Collar Up 1 /4"
to its Open Position
Pull front of Lite
from body
Collar
Collar Lock Button
