  • Page 2: Product Overview

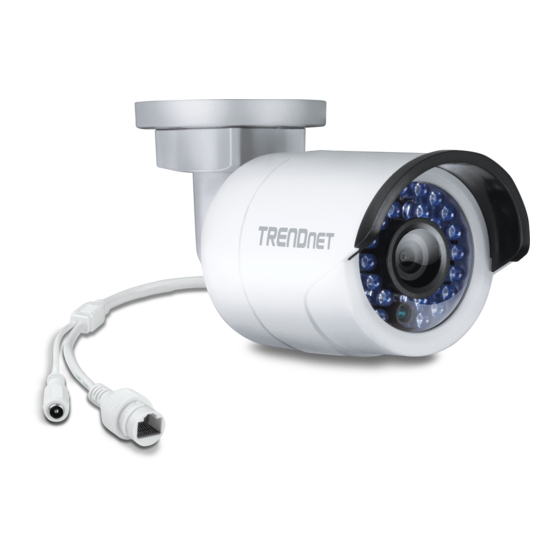

    3 Megapixel Features Record 2048 x 1538 pixel video at 15 fps in H.264 compression The Outdoor 3 MP PoE Day/Night Network Camera, model TV-IP310PI, Night Vision provides powerful 3 megapixel night vision in complete darkness for up to Night vision up to 30 meters (100 ft.) in complete darkness 30 meters (100 ft.) This ultra-compact camera is outdoor ready with an IP66...
  • Page 3 Mounting Screws See live video on a mobile device with free Apple® and Android™ apps Complimentary Software Complimentary pro-grade software to manage up to 32 TRENDnet cameras Network Cable Waterproof Accessories If any package content is missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

  • Page 4: Front View

    Loosen to adjust the camera position. Tighten to hold the camera position. Ambient Light Detects the brightness in the environment and enable Sensor day/night modes automatically. IR LEDs DC Power 12V DC 1A Infra-red LEDs for night vision. (Optional) © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 5 • To avoid heat accumulation, good ventilation is required for a proper operating environment. • Keep out of water and any liquid. • While shipping, the camera should be packed in its original packing. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 6: Installation Procedure

    • Moisture: Avoid damp or moist environments whenever you can. The Installation Procedure TV-IP310PI is an IP66 grade water proof camera, and it will work in moist environments. However, rain may affect the picture quality, There are number of factors involved in a successful camera installation.

  • Page 7: Setup Your Camera With Cd

    * A power adapter (sold separately) can be used instead of PoE switch. then click the Install Camera. 4. Wait while the utility is searches for the camera. 2. Write down the MAC Address of the camera. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 8 MAC address. Select the camera and then click you are using. Click Next. Next. 6. Select the DHCP option to assign IP address dynamically, or select Fixed IP to assign the camera an IP address, and then click Next. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 9 Change Password box and click next to get the link to access your camera.) 9. Click here to access to the camera’s web page or click Next for mobile app installation. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 10: Hardware Installation

    Waterproof cap The TV-IP310PI itself is IP66 grade water and dust proof. There is a set of network cable water proof caps that comes with the package as well. Run your cable going through the accessories, and then crimp the cable with an RJ45 module.

  • Page 11: Mount Your Camera

    Fix the mounting base on the ceiling or the wall with the screws that come with the package. Route the cables to the cable hole. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 12: Access Your Camera With The Web Browser

    IP address on your home gateway.), and then press Enter. and download the software. If you didn’t go through the TV-IP310PI CD installation wizard or you have reset the TV-IP310PI to factory defaults by pressing and holding reset...
  • Page 13 TV-IP310PI camera. install the plug- in. 6. Click Next to install the plug-in. 4. Download the plug-in to your computer and then and close your browser. Launch the plug-in installation to install the plug-in. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 14 8. Open the browser and login again. 9. (Go to step 11 if you already changed your password with the setup CD). The TV-IP310PI will ask you to change your password from default setting. Please enter the new password twice and click OK. The password must be between 8 and 16 characters.

  • Page 15: Logging-In To The Camera For The First Time (Os X)

    IP address on your home gateway), and then press Enter. 2. Enter the user name, admin, and the default password, admin, and then click OK. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 16 7. Click Continue to install the plug-in. the WebComponents.pkg and then click Open. (If you are install the plug-in from the CD, just browse to /Mac folder and double click the WebComponents.pkg file.) © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 17 TV-IP310PI 8. Select a destination to install the plug-in. Then click Continue. 10. Enter your password and click Install Software 9. Use the default location and click Install. 11. Installation will process automatically. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 18 15. Click Trust (You’ll have to do this again when your camera changes to a 13. Open the browser and login again with the default IP 192.168.10.30 or new IP address.) the IP that was dynamically assigned by your router. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 19 TRENDnet User’s Guide TV-IP310PI 16. The TV-IP310PI will ask you to change your password from the default 18. The Live View page shows up and the video starts to stream. setting. Please enter the new password twice and click OK. The password must be between 8 and 16 characters.

  • Page 20: Multi-Language

    See Live View Settings on page 29 for recording video, and successfully icon. to exit full screen mode. details. taking a snapshot. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 21 Click the date selection, and then choose a date as the date range of searching. Click Search to start searching. then click to confirm selection and then click X to close this dialog box. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 22 Click this button to stop clipping a video from playback. Where can I find saved files? Videos and snapshots captured from Playback will be saved to your computer Live View Settings on page 29 for details. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 23 Download. Where can I find saved files? Videos and snapshots captured from Playback will be saved to your computer Live View Settings on page 29 for details. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 24 Search for logs Click the type of log and then the Start Time and End Time. Click Search to The log of the TV-IP310PI will be saved on the network storage. You can start searching. search the relevant records and save to your local computer. (See Network Storage on page 50 to setup the storage.)

  • Page 25: System Information

    TRENDnet User’s Guide TV-IP310PI System Information System Information page shows the TV-IP310PI’s basic information. Click System then click System Info to show the page. Basic Information Device Name: Human readable device name for easy identification. Firmware Version: Firmware version MAC Address: The MAC address of Ethernet Interface System Time: The system time setup in the camera.

  • Page 26: System Configuration

    Un-checking this box will allow everyone access to this video stream without authentication. Default: Checked. HTTP: TV-IP310PI can be accessed via password protected web management interface. Un-checking this box will allow anyone to access this camera and change its settings.

  • Page 27: User Accounts

    (RTSP). Only one logging. You can synchronize the system time with your computer, or administrator account can be setup to configure the TV-IP310PI and cannot automatically check the time accuracy with a network time server (NTP be deleted.

  • Page 28: Daylight Savings

    Check the Sync. with computer time to copy the time DST Bias Enter how much time the daylight saving adjusted by from your computer. daylight savings. Click Save to save the changes Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 29: Live View Settings

    Medium size can have moderate TRENDnet/PlaybackFiles. Click Browse and then video stream smoothness and time delay. choose a new destination if you want to save the file somewhere else. Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 30: Maintenance

    Status: Shows the status in firmware upgrade. TRENDnet may periodically release firmware upgrades that might add features or fix problems associated with your TRENDnet model and version. To find out if there is a firmware upgrade available for your device, please check your TRENDnet model and version using the link.

  • Page 31: Network Settings

    DHCP: Check this box if the IP address is assigned by DHCP server. IPv4 Address: The IPv4 dynamic or static address Subnet Mask: Network range of the subnet Default Gateway: The default route going further from TV-IP310PI IPv4 subnet Multicast Multicast address for video streaming.
  • Page 32 TRENDnet User’s Guide TV-IP310PI Port DDNS You can change the service port numbers of TV-IP310PI and enable/disable Dynamic Domain Name Service, DDNS, allows you to find your camera from RTSP or HTTPS services. the Internet with an easy to remember domain name.
  • Page 33 Enable PPPoE: Check this box to enable PPPoE connection. Dynamic IP: The IP address assigned by ISP User Name: Enter the account name. Password: Enter the password. Confirm: Enter the password again. Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 34 Choose the privacy key to encrypt SNMP messages: Algorithm: DES or AES. Private-key Specify the privacy key between 8 to 32 letters. Password: Write User SNMP v3 manager user name. Name: Security Level: Choose one of the security levels. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 35: Ip Address Filter

    Enter the IP address then click OK Delete: To delete an entry on the list, highlight the entry by clicking on it. Then, click Delete Clear: To clear all entries, click Clear Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 36: Quality Of Service (Qos)

    Click Save to save the changes IP Address Filter Video/Audio Enter Video/Audio DSCP. Default: 0. DSCP: Event/Alarm Enter Event/Alarm DSCP. Default: 0. DSCP: Management Enter Management DSCP. Default: 0. DSCP: Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 37: Video Settings

    H.264 and MJPEG videos are always streaming and can be configured separately. Resolution: H.264 MJPEG Bitrate Type: Choose between variable bit rate or constant bit rate for video compression. The default is variable rate. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 38: Display Settings

    Default: 50 Hue: Use the slider or enter a number (0-100) to adjust the color shade. Default: 50 Sharpness: Use the slider or enter a number (0-100) to adjust the image sharpness. Default: 50 © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 39 Sensitivity: The light sensor sensitivity. Switch Time: The time delayed to switch between modes. Longer switch time can prevent unnecessary mode flipping if an object is blocking the light source temporarily. Range: 5-120 seconds, default: 5 seconds. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 40: On Screen Display Settings

    OSD Size: Select the text size from 16 to 64 or adjusted by frames. Range: 0-100%, default : 100% screen size automatically. Click Reset to reset the display adjustments Move the red box to position the text. Click Save to save the changes. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 41: Text Overlay

    44 English letters or 20 non-English Clear All: Click this button to clear all the masking characters. areas. Move the red box to position the text. Click Save to save the changes Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 42: Video Recording

    Click Save to save the changes 5. Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 43: Motion Detection

    Tracking: status of motion detection. The motion tracking is displayed with grids in green. The grid area represents the camera motion is happening. Click Save to save the choices. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 44 4. Click Select All or the weekday you want to have the same schedule on different day. 5. Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 45: Video Tamper

    Storage: when motion is detected. manager to check the camera. Upload to FTP: Check this box to send snapshots to an FTP server when motion is detected. Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 46 Click OK when you have finished your settings. Notification Send Email: Check this box to send an e-mail notification when motion is detected. Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 47 Exception Type: First, choose the exception type, and then choose the corresponding action. Send Email: Check this box to send an e-mail notification when motion is detected. Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 48 Resolution: Uses the same resolution set in Video Format for the snapshot resolution. Quality: Choose a compression quality for snapshots. Interval: State the time interval between snapshots. The default interval is 10 seconds. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 49 587 and 465. Please consult your email service provider and ISP Sender’s Enter sender’s email address. for detail. Address: SMTP Server: Simple Mail Transportation Protocol Server address, the outgoing email server address. It may be has © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 50: Network Storage

    Just create the folder and enter the The TV-IP310PI supports two formats of network storage file systems: NFS correct path name here. and CIFS. NFS, Network File System, is natively supported by Linux Capacity: Enter the size of the disk space you want to assign for this computers and most NAS, Network Attached Storage.

  • Page 51: Storage Management

    Note: The formatting progress depends on the size of the storage and the network bandwidth. It takes a while if you are formatting a big volume or the network connection is not stable. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 52 Directory:  Use Camera Name: Use the camera name to organize the saved files.  Use Camera IP: Use the camera IP address to organize the saved files. Click Save to save the changes © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 53: Get Better Video Stream On Trendnet View Pro

    Get better video stream on TRENDnet View Pro The TRENDnet View Pro is installing the TV-IP310PI sub stream video by default for better connectivity. If your TRENDnet View Pro server is located on the same local network with your camera and you have good enough available bandwidth, you can change the setting on TRENDnet View Pro to get the main stream RTSP video with better picture quality.
  • Page 54 Select Video Input tab. And then choose RTSP (RFC 2326) mainstream video. Click RTSP tab if you want to check or change the default RTSP settings. Click Property to setup the camera property. Click Next or make your changes through the wizard . © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 55: Federal Communication Commission Interference Statement

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 56: Europe - Eu Declaration Of Conformity

    Malti [Maltese] Hawnhekk, TRENDnet, jiddikjara li dan TV-IP310PI jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li Česky [Czech] TRENDnet tímto prohlašuje, že tento TV-IP310PI je ve shodě se hemm fid-Dirrettiva 2004/108/KE u 2006/95/KE. základními požadavky a dalšími příslušnými ustanoveními Magyar Alulírott, TRENDnet nyilatkozom, hogy a TV-IP310PI megfelel a...

  • Page 57: Limited Warranty

    Customers shipping from outside of the USA and Canada are section and look for the desired TRENDnet product to access to the GPL Code or responsible for return shipping fees. Customers shipping from outside of the USA LGPL Code.
