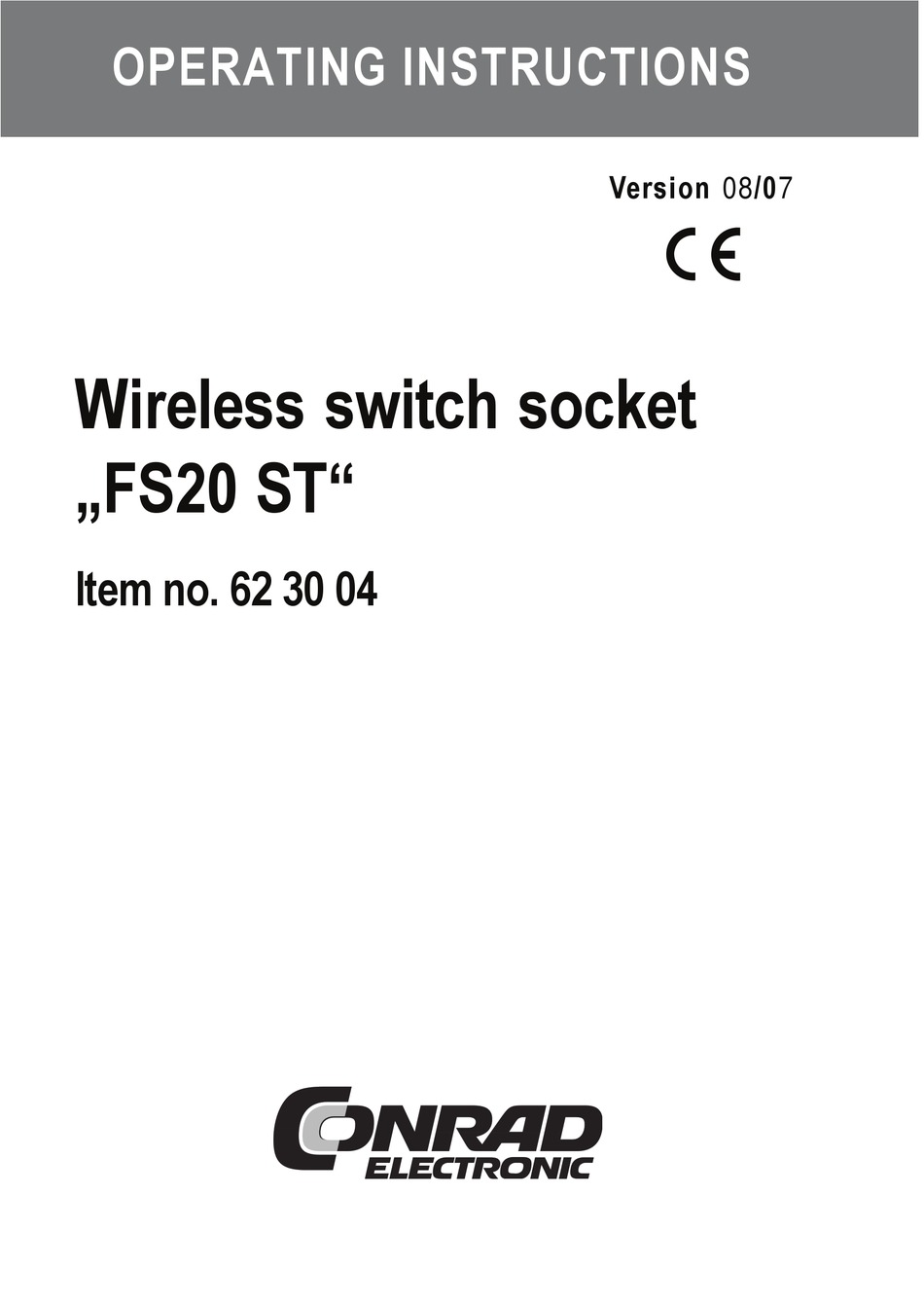

- Page 1 OPERATING INSTRUCTIONS Version 08/07 Wireless switch socket „FS20 ST“ Item no. 62 30 04...
- Page 2 All rights reserved. For more inquiries, contact or consult our technical service: Germany: Tel. no.: +49 9604 / 40 88 80 Fax. no.: +49 9604 / 40 88 48 e-mail: tkb@conrad.de Mon. to Thur. 8.00am to 4.30pm Fri. 8.00am to 2.00pm...
-
Page 3: Table Of Contents
Table of contents Page 1. Prescribed use ................. 4 2. Scope of delivery ................4 3. Explanation of icons ................. 5 4. Safety instructions ................5 5. Control panel ..................7 6. Registering a FS20 transmitter ............8 7. Operation ..................9 a) Remote control operation ............ -
Page 4: Prescribed Use
1. Prescribed use The wireless switch socket ‘FS20 ST’ functions exclusively in conjunction with the FS20 wireless control system. The wireless control system can switch a device that is connected to the wireless switch socket on or off or dim the device without the use of cables (refer to technical specifications and features). -
Page 5: Explanation Of Icons
3. Explanation of icons The icon with a lightning flash in a triangle is used to alert you to potential personal injury hazards such as electric shock. The icon with an exclamation mark in a triangle points to important instructions in this user manual that must be ob- served. - Page 6 • The product is designed in accordance with protection class I. The only voltage source that may be used is that of the correct power socket-outlet (230V~/50Hz) with the protective earth conductor of the public power supply system. • The product is not a toy and should be kept out of the reach of children. Therefore take particular care when children are around! •...
-
Page 7: Control Panel
(230V~/50Hz). Quick function test • Plug the ‘FS20 ST’ into a power socket with an earth connector (operat- ing voltage 230V~/50Hz). • For example, using a lamp as a load, plug it into the socket on the front side of the wireless switch socket. -
Page 8: Registering A Fs20 Transmitter
FS20 wireless control system or other devices, such as the load monitor ‘FS20 FMS’), proceed as follows: • Press and hold the control button on the ‘FS20 ST’ for at least 15 seconds. The control indicator/LED on the wireless switch socket starts to blink and the device is now in programming mode. -
Page 9: Operation
7. Operation a) Remote control operation Switching on: Briefly press the right button of the programmed button combination Switching off: Briefly press the left button of the programmed button combination b) Controlling the FS20 device The procedure varies, depending upon the FS20 device. Please refer to the user manual of the specific FS20 device. -
Page 10: Timer Function
8. Timer function The wireless switch socket can also be used as a timer. As soon as a switching time has been programmed, the ‘FS20 ST’ remains switched on for the programmed length of time after each power-on command. After this time has expired, it automatically switches off. -
Page 11: B) Timer Operation
Please note: If the time measurement is not ended manually, the timer programming mode will automatically be ended after 270 minutes (4 hours 30min). The timer is then programmed for a on-time of 270 minutes (4 hours 30min). b) Timer operation Starting the timer There are two different ways of doing this: •... -
Page 12: Temporary Switching To Permanent Service
• The control indicator/LED on the wireless switch socket blinks. • Now briefly press the control button on the wireless switch socket. The timer programming mode is ended and the timer function is removed. You can now use the wireless switch socket again in its normal manual operation mode. -
Page 13: Integrating The Wireless Switch Socket Into The Fs20 Address System
To delete a reception channel from the saved list, proceed as follows: • Place the ‘FS20 ST’ in programming mode as described in section 6 (press and hold the control button on the ‘FS20 ST’ for at least 15 seconds, until the control indicator/LED begins to blink). -
Page 14: Resetting The Default Settings
• Now press and hold (for at least 0.4 seconds) your remote control button that has been assigned to the reception channel that you wish to delete. • Afterwards the programming mode is automatically ended and the corresponding channel is deleted from the address list of the wireless switch socket. -
Page 15: Handling
11. Handling The product should only be used in dry indoor areas. The following unfavourable conditions at the installation site, during opera- tion or transport are to be avoided: - Moisture or excessive air humidity - Extreme cold or heat - Direct sunlight - Dust or flammable gases, vapours or solvents - Strong vibrations... -
Page 16: Maintenance And Cleaning
‘FS20 ST’. Then clean the ‘FS20 ST’ using a soft, clean, dry and lint-free cloth. To remove heavier dirt, use a cloth which is slightly moistened with lukewarm water. Never use solvent-based cleaning agents, as these may damage the surface of the plastic casing and its inscription. -
Page 17: Information On The Range
14. Information on the range • The FS20 wireless control system, including the ‘FS20 ST’, works in the 868MHz range. This range is also used by other devices and radio services. Therefore devices that operate on the same or neighbouring frequency may restrict both the operation of the ‘FS20 ST’... - Page 18 Please note: Do not place several wireless receivers (for example switch sockets) directly next to each other, because they can nega- tively affect each other (range may be reduced!). Keep them separated by a distance of at least 20cm.
-
Page 19: Declaration Of Conformity (Doc)
15. Declaration of conformity (DOC) We, Conrad Electronic, Klaus-Conrad-Straße 1, D-92240 Hirschau (Ger- many), hereby declare that this product complies with the fundamental requirements and other relevant regulations of directive 1999/5/EG. You can find the declaration of conformity for this product at www.conrad.com. - Page 20 CONRAD IM INTERNET http://www.conrad.com Imprint These operating instructions are published by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau/Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.
