VisionNet M504 Quick Start Manual

M504 – Four Port Ethernet/USB ADSL2+ Modem

Before You Start...

1. Identify your modem model by checking the label underneath your hardware.
2. Make sure your PC is equipped with either an Ethernet or a USB interface.

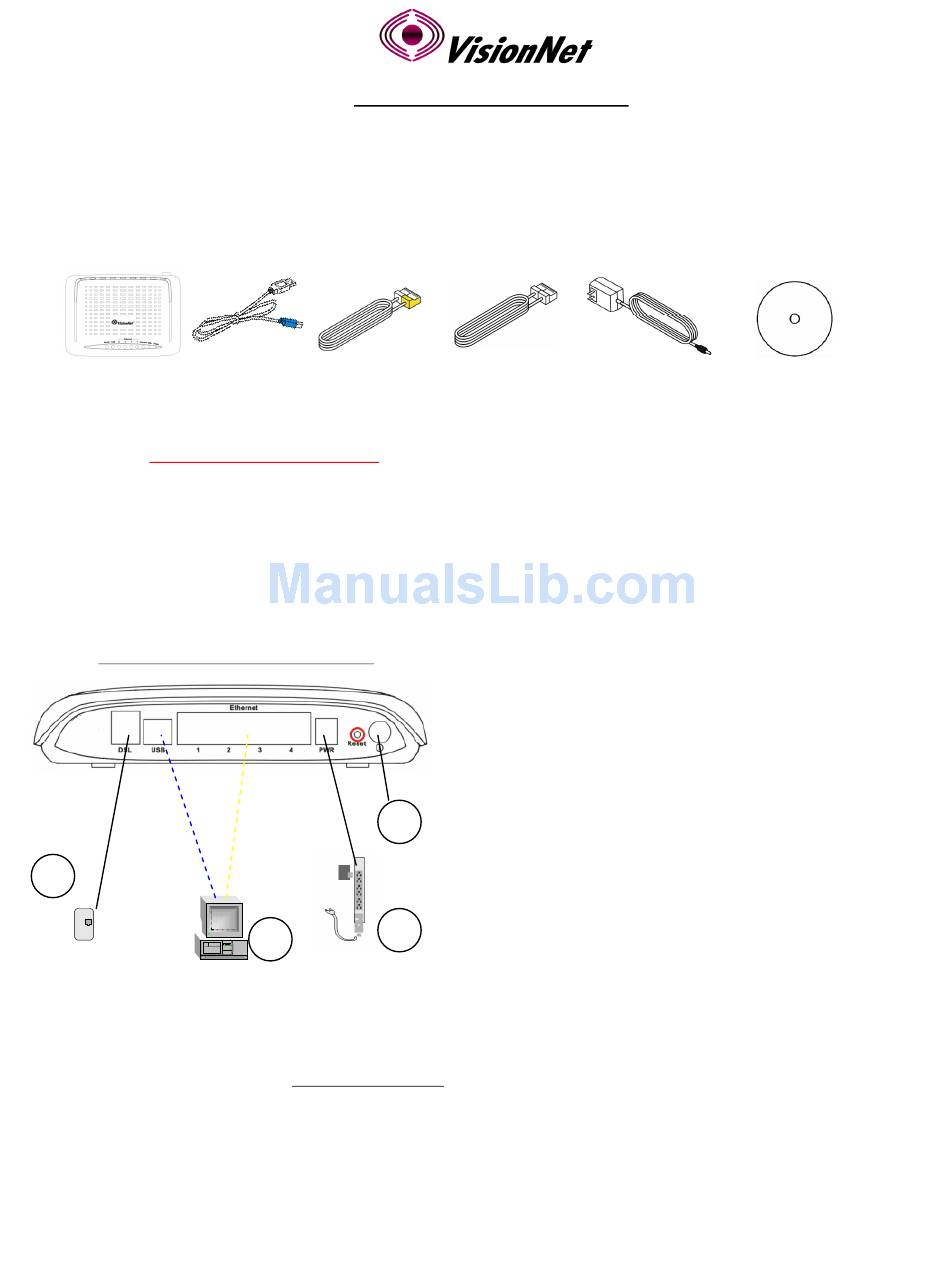

3. Verify that the following items came with your DSL Kit:
A. VisionNet B. USB Cable
Modem (BLUE)

Step 1. Connect the Hardware

A
. Connect one end of the ADSL Line Cable (GRAY) to the VisionNet Modem's "DSL" port and the
other end to the ADSL service (Wall Jack). See "A" in the diagram for your modem below.
Note: Non-ADSL devices such as fax, answering machines or phones that share the same telephone
number as your DSL account require a filter. If you require such a device to be at the same location as
the DSL modem, follow the instructions in Step 2.
VisionNet M504 ADSL2+ Modem
Ethernet or USB
A
Wall
PC
Jack

Quick Start Guide

C. Ethernet Cable
(YELLOW)
D
C
B
AC adapter
Note: Non-ADSL devices such as fax machines,
answering machines or phones that share the same
phone number as your DSL account require a filter.
Please follow the instructions in Step 2 to properly install
your DSL Filter.
D. ADSL Line Cable E. Power Adaptor
(GRAY) (BLACK)
B.
Choose your modem connection to the PC:
Ethernet: Connect the Ethernet Cable
"Ethernet" port on the VisionNet Modem
and the other end to the PC's Ethernet
port. See "B" in the diagram.
USB: If you're going to use this port, please skip
to Step 4. DO NOT CONNECT THE USB
CABLE UNTIL STEP 4.
C.
Plug the jack from the power supply adapter
(BLACK) into the VisionNet Modem's "PWR" Port and
the other end to your power outlet. Turn on the power
switch. See "C" in the diagram.
D.
Turn on the power switch. See "D" in the diagram.
E.
The "DSL" light in front of the modem should blink
and become solid within 60 seconds.
WWW.DQUSA.COM
F. Product CD
(Manual and USB
Driver)
) to the
(YELLOW
1
