Vision Net M504

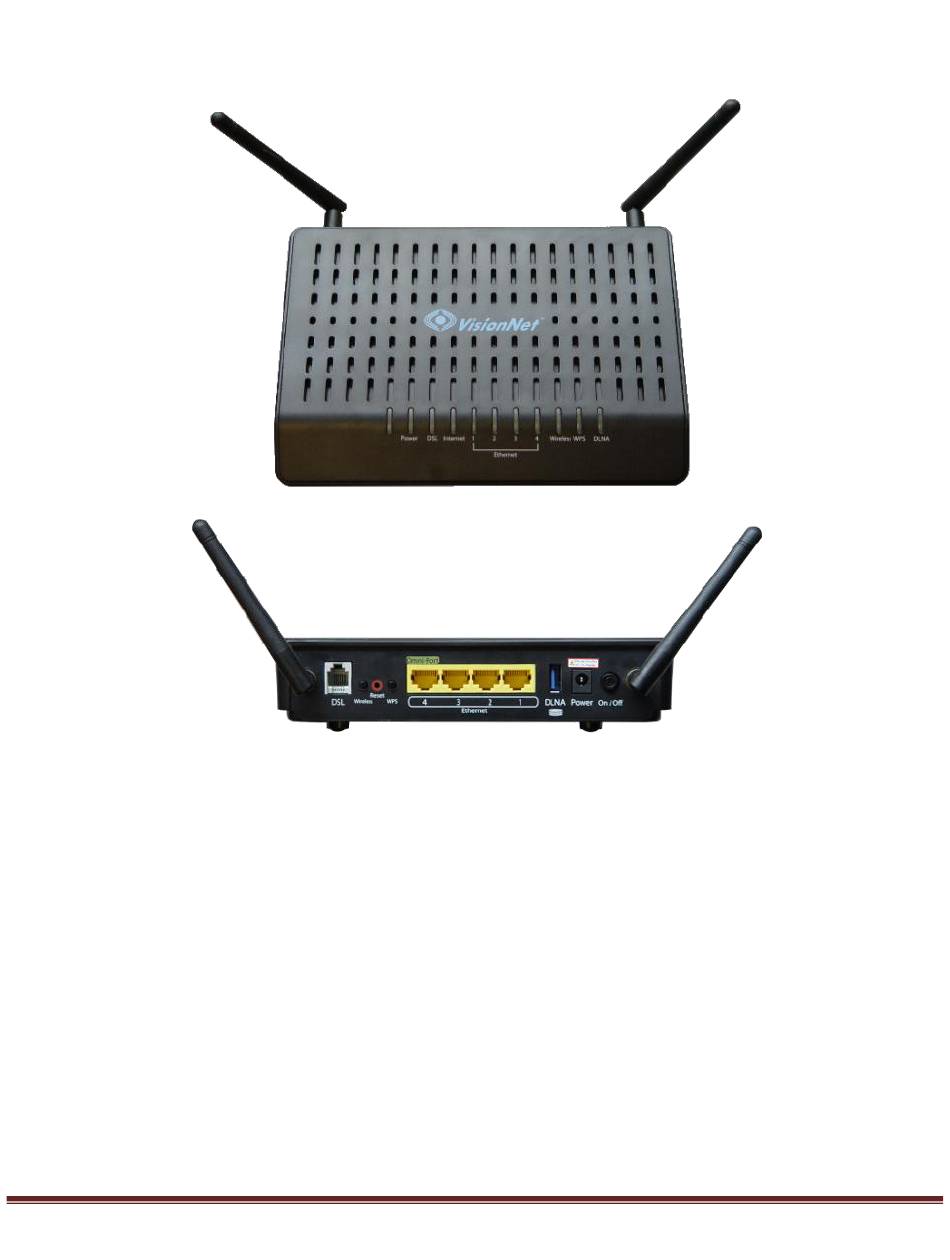

The VisionNet M504 is a router and DSL modem combo unit. It is a DSL modem and will also work with the fiber network
using port 4 the 'Omni-Port'
To log into a VisionNet, set the of the laptop or PC LAN connection to DHCP and the Ethernet cable is plugged into ports
1,2 or 3
Open a browser and type 192.168.1.254 press 'enter' the user id is admin the password is 0123456789
VisionNet M504
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the M504 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VisionNet M504

Summary of Contents for VisionNet M504

  • Page 1 Vision Net M504 The VisionNet M504 is a router and DSL modem combo unit. It is a DSL modem and will also work with the fiber network using port 4 the ‘Omni-Port’ To log into a VisionNet, set the of the laptop or PC LAN connection to DHCP and the Ethernet cable is plugged into ports 1,2 or 3 Open a browser and type 192.168.1.254 press ‘enter’...
  • Page 2 The welcome screen looks like this Click on the ‘WAN’ link on the left VisionNet M504 Page 2...
  • Page 3 It will expand, click on ‘WAN Services’ Click on the ‘edit’ button for the atm0 Interface VisionNet M504 Page 3...
  • Page 4 Click on the ‘Next’ button Ensure the ‘Obtain an IP automatically’ is enabled VisionNet M504 Page 4...
  • Page 5 If not then, click in the radio button then click next Click ‘Next’ VisionNet M504 Page 5...
  • Page 6 Click the ‘Apply/Save’ button Click the ‘Apply/Save’ button VisionNet M504 Page 6...
  • Page 7 Your done setting up the router for DHCP, while you are here check the firmware and update it if it is older than GAN5.CZ56T-B-DQ-R4B069-US.EN_12_update Older versions are GAN5.CZ56T-B-DQ-R4B069-US.EN_fs_kernel and GAN5.CZ56T-B-DQ-R4B056-US.EN The firmware version is on the QuickView screen VisionNet M504 Page 7...
  • Page 8 To update the firmware, click on the ‘Management’ link Click on ‘Firmware Upgrade’ link VisionNet M504 Page 8...
  • Page 9 Click the ‘Browse’ button and find the software then click the ‘Upgrade Software’ button The software will update then reboot the router VisionNet M504 Page 9...
