BUSH –
Installation & User Instructions
Important
–
Please read these instructions fully before installing or using
These instructions contain important information which will help you get the best from your
appliance and ensure safe and correct installation, use and maintenance.
If you need help or have damaged or missing parts, call the

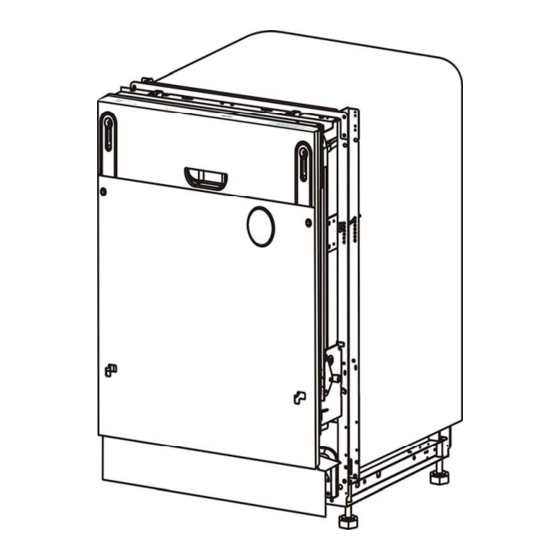

Integrated Dishwasher
–
Please keep for future reference
Customer Helpline: 0845 600 4632
478/7130
Issue 1 – 07/09/10
Advertisement
Table of Contents
Related Manuals for Bush WQP8-9347
Summary of Contents for Bush WQP8-9347
- Page 1 BUSH – Integrated Dishwasher Installation & User Instructions – Please keep for future reference 478/7130 Important – Please read these instructions fully before installing or using These instructions contain important information which will help you get the best from your appliance and ensure safe and correct installation, use and maintenance.
-
Page 2: Table Of Contents
Drain hose connection Position the appliance Water pressure Electrical connection User Instructions 10-17 Before first use 10-12 Loading your dishwasher 13-15 Wash cycle table Using your appliance Care and Maintenance General Trouble Shooting Error codes Product codes WQP8-9347 Technical Specifications... -
Page 3: Safety Information
Safety Information Important – Please read these instructions fully before installation Before use During use The installation of this appliance is best carried out This appliance is not intended for use by persons by 2 people. (including children) with reduced physical, sensory or mental capabilities, or lack of Dispose of all packaging carefully and experience and knowledge, unless they have... -
Page 4: Parts
Part If you have damaged or missing parts, call the Customer Helpline: 0845 600 4632 Please familiarize yourself with the parts and accessories listed below 1. ON/OFF button 2. Power on light 3. Display 4. Delayed Start Button 5. Salt and Rinse Aid Warning Light 6. -
Page 5: Installation
Installation Aesthetic panel installation Cabinet dimensions Note: Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet. 50mm minimum space when door is opened. The aesthetic panel should be processed in accordance with the illustrated dimensions (unit: mm) - Page 6 Installation Aesthetic panel installation 1. Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher. 2. After positioning of the panel, fix the panel onto the outer door by screws and bolts. a.
- Page 7 Installation Aesthetic panel installation Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs.
-
Page 8: Water Supply Connection
Installation Water supply connection Caution: 2 people are required to unpack and handle the appliance, it is recommended that gloves are worn. Carefully remove all packaging materials including the foam base, dispose of correctly. Connect the cold water supply hose to a threaded ¾”... -
Page 9: Water Pressure
Installation Water pressure For best operating results, incoming water pressure should be between 0.04 and 1 Mpa. Your dishwasher cleans by spraying a mixture of hot clean water and detergent (under pressure) against the soiled surface of dishes. The water is pumped through a rotating spray arm, drained through a filter removing food and soiled particles and pumped back through the spray... -
Page 10: Electrical Connection
Installation Electrical connection Plug replacement (UK & Ireland only) Any electrical work that is required to Should you need to replace the plug; the wires in install this appliance MUST be carried out by the power cable are coloured in the following a qualified electrician. -
Page 11: Water Softener
User Instructions Before first use Before using your appliance for the first time: Set the water softener Pour ½ litre of water inside the salt container and then fill with dishwasher salt Fill the rinse aid dispenser Fill in detergent Water Softener The dishwasher is designed with a softener to eliminate the minerals and lime from the water... -
Page 12: Before First Use
User Instructions Before first use Rinsing Aid A rinsing aid is specially formulated to rinse away food and detergent residues that can be left behind on your dishes. Use regularly, a rinse aid will automatically provide you with cleaner dishes every time you wash. Loading the rinsing aid 1. - Page 13 User Instructions Before first use Detergent Use only detergent specifically made for use in dishwashers, as other types may damage the dishwasher. The dispenser must be filled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than conventional dishwasher.
-
Page 14: Loading Your Dishwasher
User Instructions Loading your dishwasher Preparing your dishes prior washing Scrape off all food residuals from the dishes. Remove excessive quantities of oil or grease. Empty any liquids from glasses and cups. Dishes with dried-on foods are more difficult to wash and may not come clean in a normal wash cycle. - Page 15 User Instructions Loading your dishwasher Loading the lower basket Put large items which are most difficult to clean into the lower basket. Locate sharp items so that they are not likely to damage the door seal. Load sharp knives with the handles up to reduce the risk of injuries.
- Page 16 User Instructions Loading your dishwasher NOTE: For ease of loading/unloading large size dinner plates from the dish rack it may be necessary to remove the cutlery basket. When loading/unloading is complete, return the cutlery basket to its original position. Warning Do not touch the heating element during or immediately after use.
-
Page 17: Wash Cycle Table
User Instructions Wash cycle table Program Cycle selection Description of Detergent Run time Energy Water Rinse information cycle (min) (Kwh) pre/main For the heaviest Pre-wash 4/20g 1.19 soiled loads, Pre-wash(50℃) such as Wash (60 ℃) pots,pans,casserole dishes and dishes Rinse that have Rinse (70 ℃) Strong... -
Page 18: Using Your Appliance
User Instructions Using your appliance To operate the dishwasher: Make sure the water inlet and drain hoses are correctly and securely connected. Push the door release button to open the door. Fill the detergent, water softener and rinsing aid to the dishwasher. Draw out the lower and upper basket. -
Page 19: Care And Maintenance
Care and Maintenance General Important: Always unplug the appliance from the power socket during cleaning and maintenance. Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning. Clean the external surfaces with a damp soft cloth only. Never use abrasive products or solvents as it may damage the dishwasher. -
Page 20: Trouble Shooting
Trouble Shooting In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below. If the problem persists, contact the retailer if the machine is still under guarantee. If the machine is out of guarantee, contact an approved service agent on 0845 600 4632. Problem Possible cause Solution... -
Page 21: Technical Specifications
Technical Specifications Model WQP8-9347 Power input 1760-2100W Max. water consumption (Economy wash) Water pressure 0.04 ~ 1Mpa Dimension W445 x D540 x H820 mm Hot water connection Max 60°C Capacity 8 setting We apologise for any inconvenience caused by any minor inconsistencies in these instructions, which may occur as a result of product improvements and development. - Page 22 Guarantee PRODUCT GUARANTEE This product is guaranteed against manufacturing defects for a period of Year This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.
