Page 1: Installation Guide

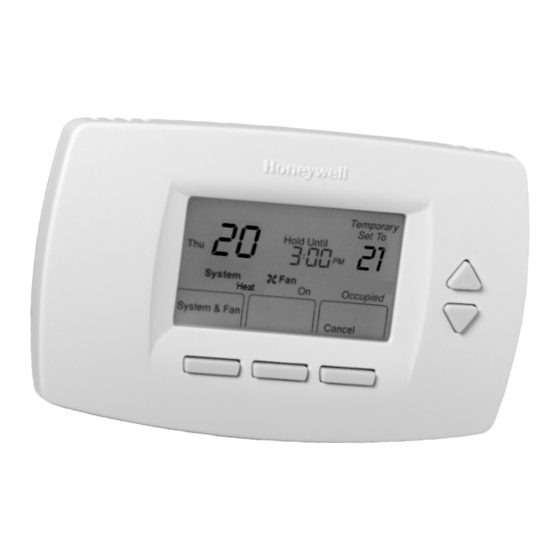

Installation guide iHeat thermostat TB7100A1000 MultiPRO multispeed and multipurpose thermostat... - Page 2 For more information about buying, living and servicing of Rin- nai appliances call: 0800 RINNAI (0800 746 624) Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland PO Box 53177, Auckland Airport, Auckland 2150 Phone: (09) 257 3800, Fax: (09) 257 3899 Email: info@rinnai.co.nz...
-
Page 3: Table Of Contents
General ...............4 Batteries, wallplate, date, and time ......5 Thermostat configuration ..........6 Installer thermostat tests ...........8 Troubleshooting table ..........10... -
Page 4: General
General Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous situation. Select thermostat location Select a location for the thermostat approximately 1.5 m above the floor on an internal wall, and in the location that requires heating. -
Page 5: Batteries, Wallplate, Date And Time
Batteries, wallplate, date and time Installing batteries Batteries (2) Battery holder Install the two AA alkaline batteries supplied on the back of the thermostat. 2. Locate and remove the tab labelled ‘Remove’. This tab MUST BE removed in order to set the real-time clock. -
Page 6: Thermostat Configuration
Once the system has been configured, press Done to save the settings. There are 42 possible thermostat setup numbers and four installer tests. For the purposes of this installation guide we have listed only those that are relevant to the Rinnai iHeat system. These are categorised as follows: Must not alter... - Page 7 22 °C at 6am and 0685 is set at 15, the iHeat system could run at maximum at 5:30am to heat the house—this could potentially be disruptive. Rinnai recommends leaving the setting at 5. 0700 Temp.
-
Page 8: Installer Thermostat Tests
Installer thermostat tests Setup Setting Default Settings available Notes number setting Installer tests Test 2 Installer test fan 0 = off Only shown if system has a fan 1 = fan stage 1 2 = fan stage 2 3 = fan stage 3 Test 3 Installer test heat 0 = off... - Page 9 Rinnai iHeat thermostat Troubleshooting...
-
Page 10: Troubleshooting Table
If voltage is not present, check wire connection (loose or broken) between the thermostat and the heating equipment. If the appliance cannot be made to perform correctly please contact Rinnai (0800 TO RINNAI) 0800 76 746 624. 10 | iHeat thermostat installation guide: 12064-A 01-13... - Page 12 Experience our innovation Rinnai.co.nz 0800 746 624 http://www.youtube.com/rinnainz...
