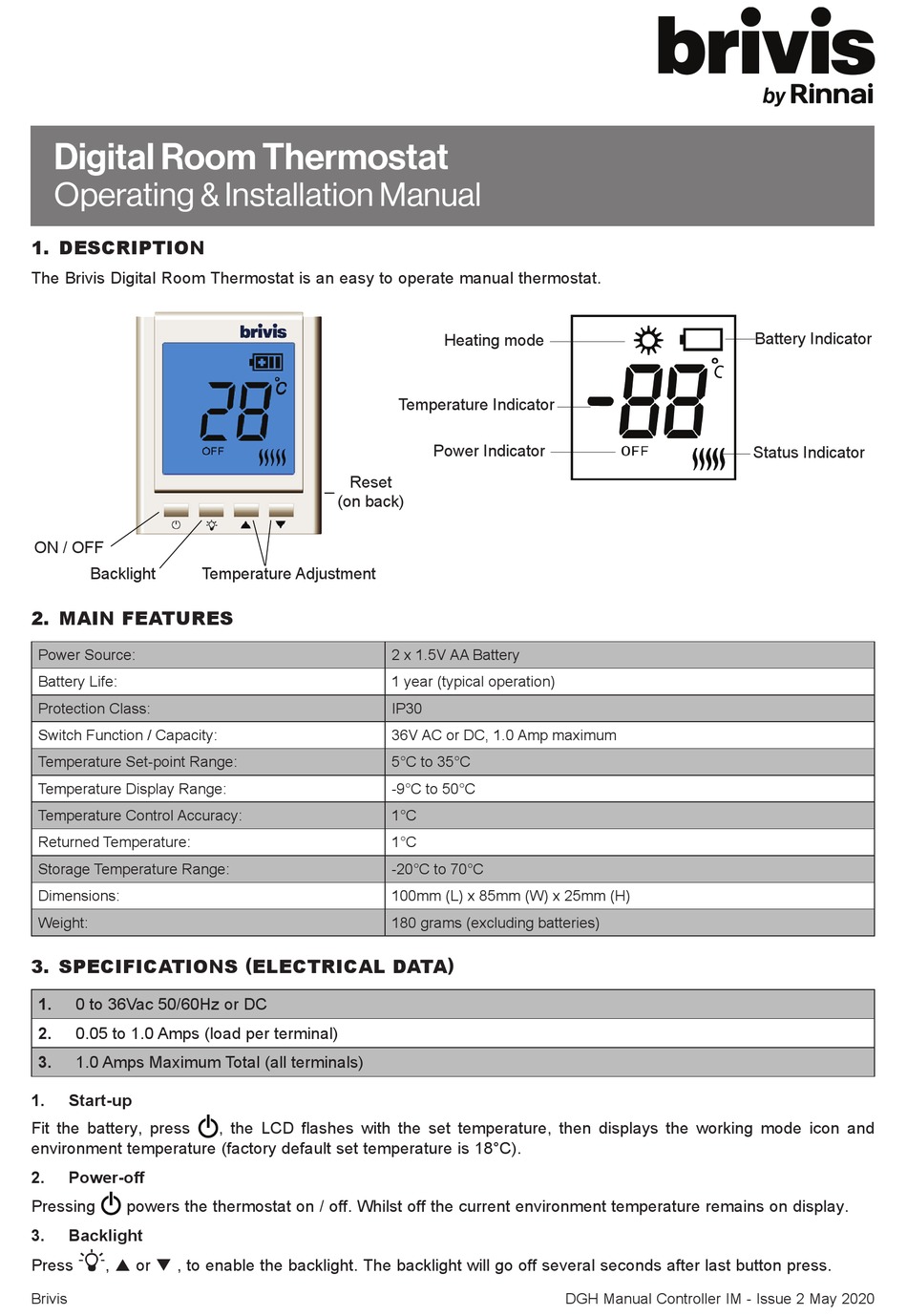

Rinnai Brivis DGH Manual Controller Operating & Installation Manual

Digital Room Thermostat
Operating & Installation Manual
1. DESCRIPTION

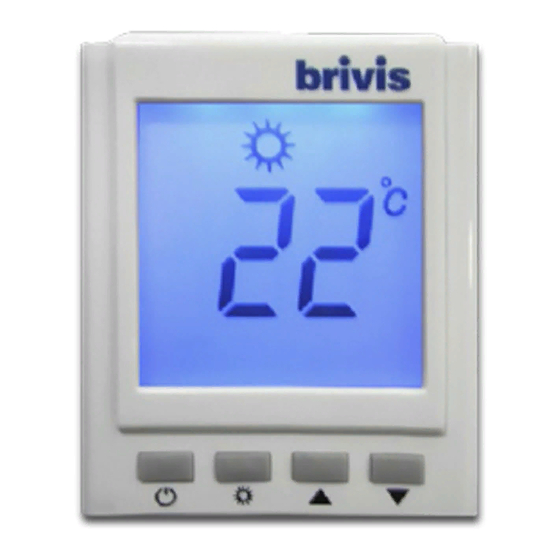

The Brivis Digital Room Thermostat is an easy to operate manual thermostat.
ON / OFF
Backlight Temperature Adjustment
2. MAIN FEATURES
Power Source:
Battery Life:
Protection Class:
Switch Function / Capacity:
Temperature Set-point Range:
Temperature Display Range:
Temperature Control Accuracy:
Returned Temperature:
Storage Temperature Range:
Dimensions:
Weight:
3. SPECIFICATIONS ( ELECTRICAL DATA )
1. 0 to 36Vac 50/60Hz or DC
2. 0.05 to 1.0 Amps (load per terminal)
3.
1.0 Amps Maximum Total (all terminals)
1. Start-up
Fit the battery, press
environment temperature (factory default set temperature is 18°C).
2. Power-off
Pressing powers the thermostat on / off. Whilst off the current environment temperature remains on display.
3. Backlight
Press ,  or  , to enable the backlight. The backlight will go off several seconds after last button press.
Brivis
Reset
(on back)
, the LCD flashes with the set temperature, then displays the working mode icon and
Heating mode
Temperature Indicator
Power Indicator
2 x 1.5V AA Battery
1 year (typical operation)
IP30
36V AC or DC, 1.0 Amp maximum
5°C to 35°C
-9°C to 50°C
1°C
1°C
-20°C to 70°C
100mm (L) x 85mm (W) x 25mm (H)
180 grams (excluding batteries)
DGH Manual Controller IM - Issue 2 May 2020
by
Battery Indicator
Status Indicator
