INFINITI FITNESS PG4500 User Manual

Programmed magnetic exercycle
Hide thumbs

Advertisement

Table of Contents

PG4500 Programmed Magnetic
Exercycle
PROFESSIONAL GYMNASIUM EQUIPMENT CO , LTD
7 Grosvenor Place, Brookvale NSW 2100
Ph:02 9939 7111 – Fax:02 9939 7088

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG4500 and is the answer not in the manual?

Questions and answers

Related Manuals for INFINITI FITNESS PG4500

Summary of Contents for INFINITI FITNESS PG4500

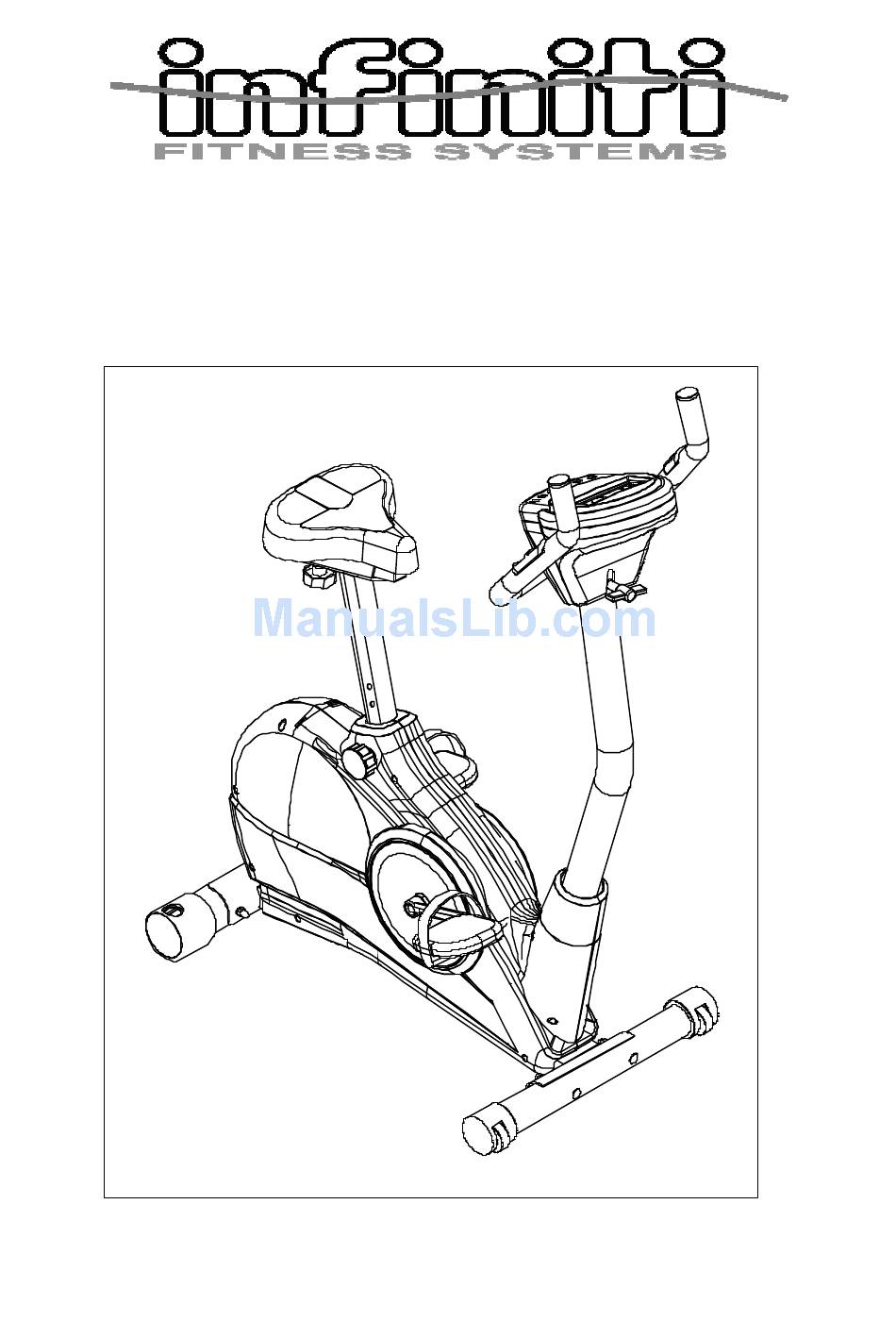

  • Page 1 PG4500 Programmed Magnetic Exercycle PROFESSIONAL GYMNASIUM EQUIPMENT CO , LTD 7 Grosvenor Place, Brookvale NSW 2100 Ph:02 9939 7111 – Fax:02 9939 7088...

  • Page 2: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 3: Parts Lists

    PARTS LISTS DESCRIPTION QUANTITY COMPUTER PULSE SENSOR 1SET FOAM GRIP FOR HANDLEBAR 1SET HANDLEBAR T-KNOB FOR HANDLEBAR BOLT FOR FIXING HANDLEBAR CARRIAGE SCREW ROUND-HEADED SCREW 6PCS SPRING WASHER 2PCS FLAT WASHER 2PCS METAL COVER FOR HANDLEBAR REAR COVER FOR COMPUTER HANDLEBAR POST SCREW FOR FIXING HANDLEBAR POST 4PCS...

  • Page 4: Warranty

    If you have questions please do not hesitate to contact ProGym. Our details are listed on the cover page. Warranty This guarantee covers all manufacturing and material flaws on Infiniti fitness products purchased from an authorized Infiniti retailer for a period of 12 months from the date of purchase.

  • Page 5: Safety Instructions

    Safety Instructions Before you start training on your Infiniti bike, please read the instructions carefully. Be sure to keep the instructions for information, in case of repair and for spare part delivery. This bike is made for home use only and tested up to a max. body weight of 120 kg.
  • Page 6 Assembly Instructions STEP I 1. Assemble the front (28) and rear (27) stabilizer to the base post with 4 bolts (26) wave washers (23) and 4 nuts (22). 2. Assemble the left (24) pedal onto left crank and assemble right pedal (24) onto right crank.
  • Page 7 STEP 2 1. Assemble the seat (16) to the seat slip set (17) and use the knob for saddle (19) and one flat washer (18) to fasten the seat assembly onto the seat post. 2. Put the plastic sleeve (36) for seat upright into the base post. 3.
  • Page 8 STEP 3 1. Position the cover for handlebar post (32) onto the handlebar post (13). 1. Connect the computer cable up (34) to the computer cable down (31) between the main frame and handlebar post as shown in the magnified picture. Make sure the assembly is tight. 2.
  • Page 9 STEP 4 1. Assemble the handlebar (4) on the handlebar fixture and put the metal cover (11) on the top of handlebar, j u st put all together with flat washer (10) spring washer (9) and two screw (6&7) and fix it a little bit. 2.
  • Page 10 STEP 5 1. Remove the battery cover from computer and discard. Assemble the bracket for front cover for computer (12) & rear cover for computer with 6 round-headed screws. Tighten the T-KNOB.

  • Page 11: Computer Functions

    COMPUTER FUNCTIONS Button Function MODE : press this button to select function. RESET :To reset the value of “Time”,” Distance”, “Calories”, “Pulse” and “Watt”. Keep pressing this button for 3 seconds, all the value on display will reset to zero and LCD display will go back to the original face with word “U1”...
  • Page 12 WATT : To display the power value which the user is working on. Range is from 0 to 999 watts. CALORIES: Count-Up: To accumulate total calorie consumption from zero up to 9999 cal. Count-Down: To count the calorie backwards from preset value down to zero.

  • Page 13: Using The Computer

    USING THE COMPUTER Step 1 1. Install the batteries into the battery box on back side of the computer. 2. Press and hold the reset button until the LCD shows the figure “78.0”, and then switch to the main display with the word “U1” flashing. “78.0” is the wheel circumference for this ergometer preset in the software.
  • Page 14 program from profile 1 to profile 12. Press “MODE” button to finalize the program profile. set your 2. Press AGAIN THE “mode” BUTTON”. Then, you are now able to target value for function “TIME”, “DISTANCE”, “C ALORIES” and “PULSE”. Follow the Procedure of point (2) to (6) in step 3, you are able to finalize this program.

  • Page 15: Special Instructions

    Special Instructions: 1. In “MANUAL” mode, when you have set the “WATT” value, it becomes a speed independent ergometer. The “WATT” value which you have preset will be kept the same whatever you pedaling speed is. That means the tension load will automatically adjusted according to your pedaling speed to keep always the same “WATT”...
