Assembly & Operating Instructions
PG750 Magnetic Bike
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PG750 and is the answer not in the manual?

Questions and answers

Related Manuals for INFINITI FITNESS PG750

Summary of Contents for INFINITI FITNESS PG750

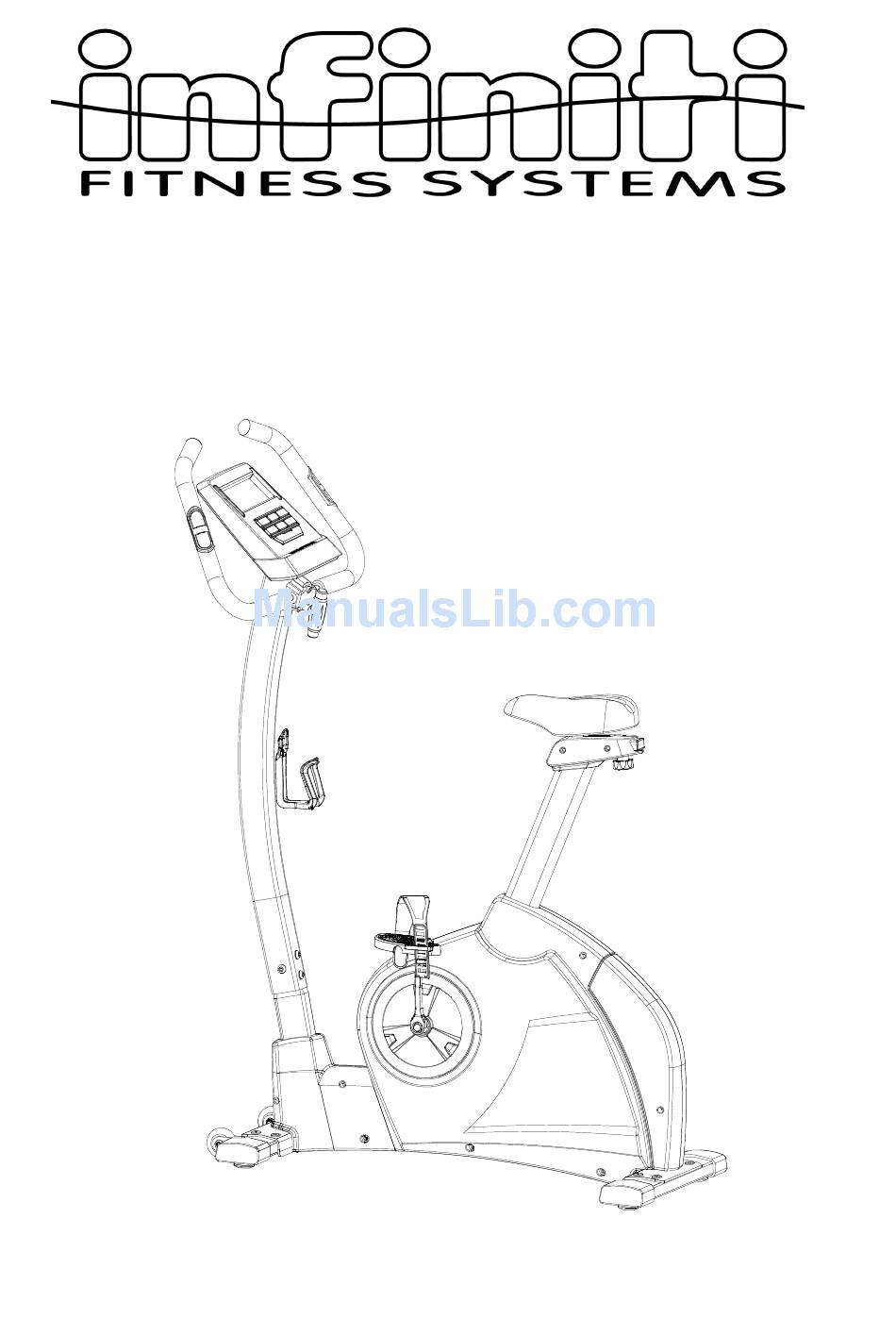

  • Page 1 ® Assembly & Operating Instructions PG750 Magnetic Bike...
  • Page 2 EXPLORATION DRAWING...
  • Page 3 DRAWING FOR ASSEMBLY...
  • Page 4 PARTS LIST AND TOOLS Description Q'ty Computer 1PCS Screw 4PCS Handlebar assembly 1SET End cap 2PCS Pulse sensor 2PCS Screw 2PCS Pulse cable 1PCS Foma grip 1PCS End cap for pulse cable 1PCS Computer post 1SET Computer cable 1PCS Screw 2PCS Mainframe 1SET...
  • Page 5 Description Q'ty D-26 DC socket with cable 1PCS D-27 Idler spring 1PCS D-28 Bottle holder 1PCS D-29 Ring 2PCS Flywheel assembly 1SET 5PCS Star washer 2PCS Bearing 1PCS Flat washer 1PCS Bearing 1PCS One-Way bearing set 1PCS Flywheel 1PCS Flywheel axle 1PCS Bearing 1PCS...
  • Page 6 Description Q'ty Rear stabilizer assembly 1PCS Rear stabilizer 1PCS Seat post assembly 1PCS Sleeve 1PCS Knob for seat post 1PCS Screw 4PCS Seat slider cap, Left 1PCS Seat slider cap, Right 1PCS Seat knob 1PCS Flat washer 1PCS Screw set 1PCS End cap 2PCS...
  • Page 7 ASSEMBLY INSTRUCTIONS Stage#1 S T E P 1 S T E P 2 1. Put on front stabilizer (H) and rear stabilizer (I) to the mainframe assembly. Be noted: the front stabilizer has transportation wheel. Use Screw (K-8) to fix the stabilizers tightly. 2.
  • Page 8 Stage#2 STEP 3 1. Connect the upper and lower table together. 2. Fix the handlebar post to the main frame with Screws (D-3) and washer (D-1).
  • Page 9 Stage#3 STEP 4 1. Assemble the handlebar (B) to the bracket on the handlebar post with handlebar clamp (K-1), Cover for metal cover (K-2) flat washer (K-3), washer (K-4) and screw (K-5). Bushing (K-7) 2. Fix the T-knob (K-6) to the plastic cover. Adjust the handlebar with your desired angle. Fasten the T-knob.
  • Page 10 Stage#4 STEP 5 Fasten the saddle (J-11) to the seat post (J). And fix the seat post to the main frame with seat knob (J-2).
  • Page 11 Stage#5 STEP 6 1. Connect the pulse cable coming out of the handlebar and the computer cable to the computer (A). Place the computer to the computer mast and fasten with Screws (A-1). Then the assembly is done.

  • Page 12: Hardware Kit

    Hardware Kit N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N 5 N A N N N n N B o N N N M N N P N N 0 N N 0 M M N N N N N N N N N N N M N N N N N c o N N N N N N N N N N N N 6 N T N N N N p N N k n o b...
  • Page 13 INSTRUCTION MANUAL OF SM2703 BUTTON FUNCTION: In stop mode, the mode is to confirm all exercise data setting, and enter into program. MODE/ENTER RESET In stop mode, press the button back to main menu. To start or stop exercise. START/STOP To test hear rate recovery status.

  • Page 14: User Program

    PROGRAM HRC WATT. 圖 5 圖 6 4. Quick Start and Manual : Before exercise in Manual mode, user my set up TIME, DISTANCE, CALORIES and PULSE target. After power on, user may press START/STOP button to start exercise in MANUAL immediately without any setting.
