KitchenAid KSSC48MFS05 Parts Manual
  1. Manuals
  2. Brands
  3. KitchenAid Manuals
  4. Refrigerator
  5. KSSC48MFS05
  6. Parts manual
KitchenAid KSSC48MFS05 Parts Manual

KitchenAid KSSC48MFS05 Parts Manual

48" built-in refrigerator
Hide thumbs Also See for KSSC48MFS05:

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Instruction and Installation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the KSSC48MFS05 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSC48MFS05

Summary of Contents for KitchenAid KSSC48MFS05

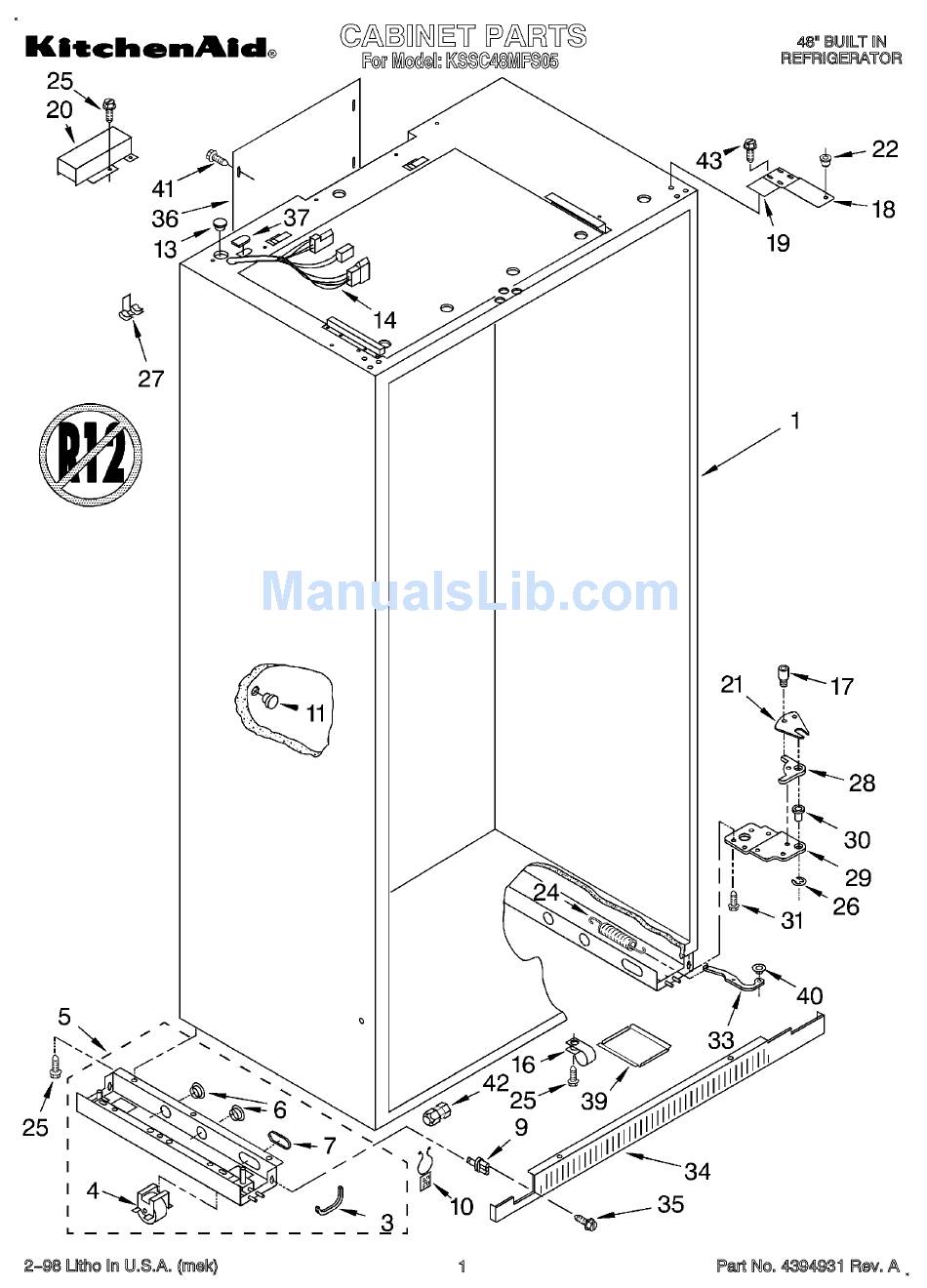

  • Page 2 Cabinet (Not A Serviceable Part) 2005004 Grommet, Tube Crossover 1112023 Roller, Front & Rear (4) Support, Leveler Assembly 2004506 Refrigerator Side 2004505 Freezer Side 2005006 Grommet, Wiring 2005007 Grommet, Flexible 2004852 Mounting Stud, Grill 2005237 Wire Clip 1112849 Cap, Grommet...
  • Page 4 2005256 Cabinet, Trim Right Side 2003857 Screw 1163283 Screw 2004538 Cabinet, Trim (Bottom) 486194 Screw 2003647 Cabinet, Trim Top 2005493 Cabinet, Trim Left Side...
  • Page 6 Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support, Evaporator 2004068 Stud, Shelf (20)
  • Page 8 LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control Meat Pan 2001326 Seal, Air Duct 1112218...
  • Page 10 1112642 Control Panel 2003303 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113775 Shield, Control Panel 1112613 Socket, Light (2) 548049 Light Bulb (2) 486194 Screw...
  • Page 12 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113769 Shield, Control Panel 1112613 Socket, Light 486194 Screw 548049 Light Bulb 2001974 Channel, Wiring...
  • Page 14 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003327 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9) 2000742 Meat Pan, Connector 2169935 Cover 2003317 Crisper Pan (2)
  • Page 16 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Fixed-Deep 2001626 Basket (2) 2002727 Ice Container 2003045 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003114 Trim, Basket 2174388 Roller...
  • Page 18 2005314 Top Grille Assembly 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2005292 Nameplate 2005534 Guard, Compressor Wiring 2004333 2005485 Bracket, Trim Panel 2005483 Louver, Bracket 2005259 Vent, Louver 488649 Screw...
  • Page 20 2003872 Refrigerator Door Panel (Includes Insulation) 2005283 Door Skin 2005329 Hinge Assembly, Top 2004520 Spacer-Door, Top 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top & Bottom 2001049 Door Gasket, Magnetic 2004447 Door Brace, Corner...
  • Page 22 2003878 Freezer Door Panel (Includes Insulation) 2004520 Spacer-Door, Top 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004881 Retaining Ring Door-Closure 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic 486194 Screw (34) 2005290 Handle, Door 90864 Screw...
  • Page 24 2003398 Assembly, Unit Base 2163787 Clip, Compressor Mounting (4) 2183420 Compressor (Includes Items 7, 8, 9, 11, 12 & 21) (Also Order) 876765 Tube Kit 680975 Washer 2003389 Bushing, Foam 2163786 Grommet, Mounting 1127675 Wire Assembly 2176858 Overload (Includes Relay) 2162358 Terminal Cover 1108143...
  • Page 26 2000528 Defrost Bi-Metal 1113043 Clamp, Bi-Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2002448 Sleeve 2002995 Tube, Discharge 2003272 Sleeve 2003003 Heat Exchanger 2002966 Evaporator 2001608 Heater, Defrost...
  • Page 28 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003926 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner 2000783 Scroll, Fan 2003929 Deflector, Air Duct 488772...
  • Page 30 841707 Insert, Tube 628379 Clip, Fuse 2005009 Water Inlet Tube Assembly 1106508 Seal Gasket 2154472 Connector 2003791 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2004547 Water Valve, Harness 2005038 Plug, Water Valve 489348 Clamp, Nylon Valve 488946 Clamp Tube 2174155 Cover 628228...
