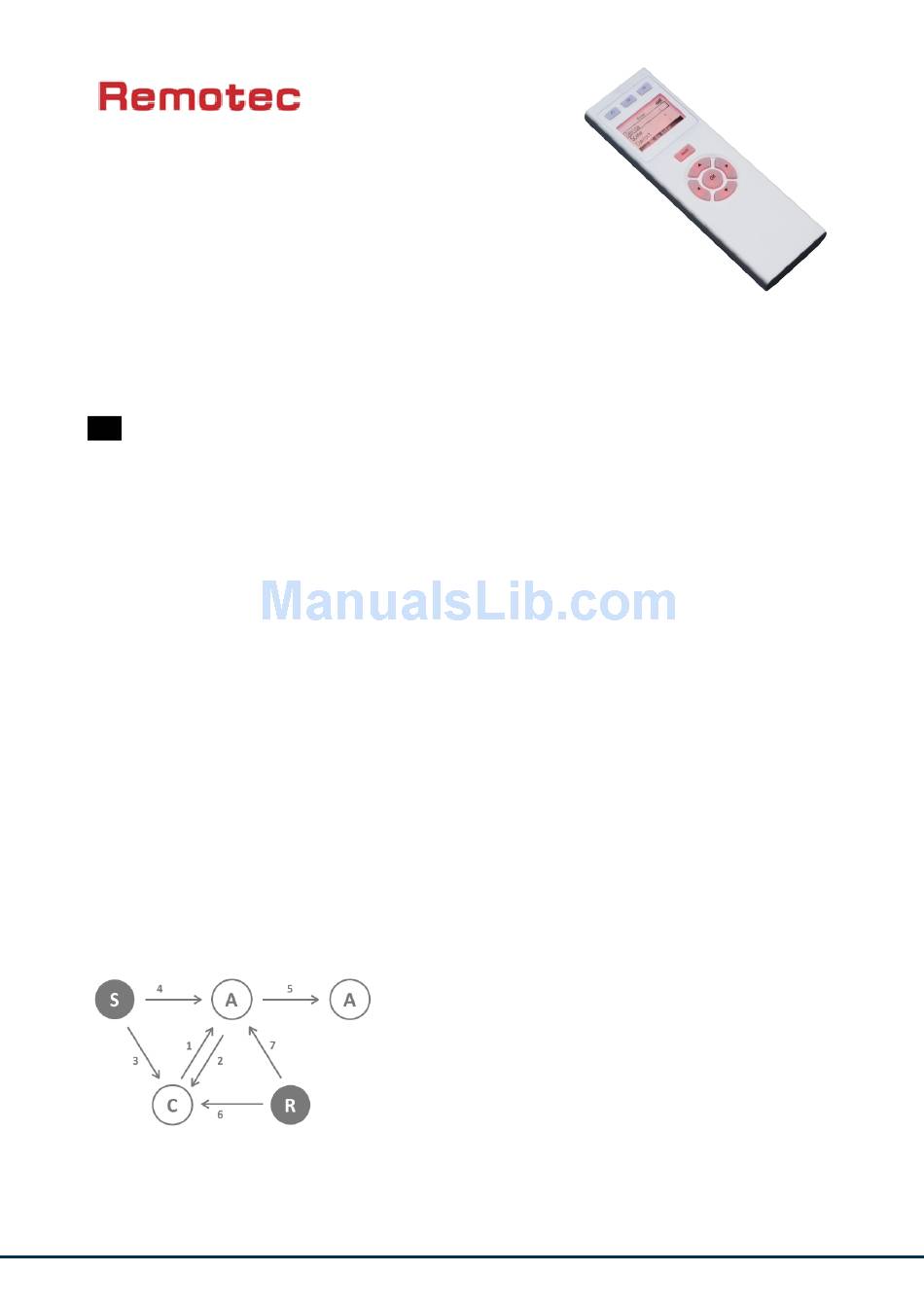

REM_ZRC100
Remotec Universal

Remote Control

Firmware Version : 1.2

Quick Start

R

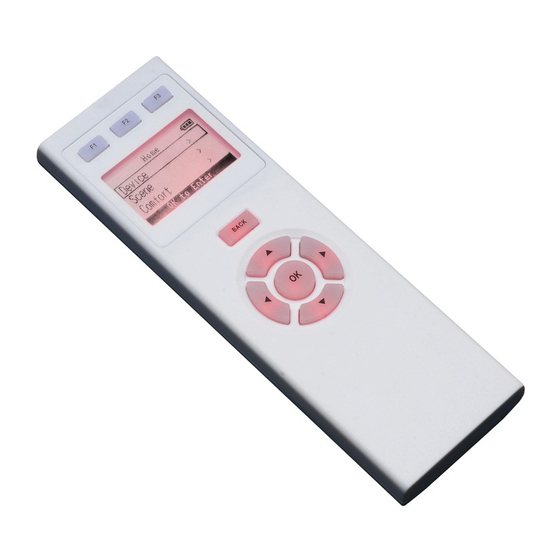

This device is a Z-Wave Remote Control.
For Inclusion of Z-Wave devices into the remote controls network do the following steps: Press and hold the
left + right arrow keys simultaneously for 3 seconds and select "Add Device". For including the ZRC-100 as
a secondary controller into an existing the Z-Wave network do the following steps: Bring your primary
controller into inclusion mode. Press and hold the up + down arrow keys simultaneously for 3 seconds and
select "Learning Mode" on the ZRC-100.
Please refer to the chapters below for detailed information about all aspects of the products usage.
What is Z-Wave?
This device is equipped with wireless communication complying to the Z-Wave standard. Z-Wave is the
international standard for wireless communication in smart homes and buildings. It is using the
frequency of 868.42 MHz to realize a very stable and secure communication. Each message is reconfirmed
(two-way communication) and every mains powered node can act as a repeater for other nodes (meshed
network) in case the receiver is not in direct wireless range of the transmitter.
Z-Wave differentiates between Controllers and Slaves. Slaves are either sensors (S) transmitting metered or
measured data or actuators (A) capable to execute an action. Controllers are either static mains powered
controllers (C) also referred to as gateways or mobile battery operated remote controls (R). This results in a
number of possible communication patterns within a Z-Wave network that are partly or completely supported
by a specific device.
(c) 2012 Z-Wave Europe GmbH, Goldbachstr. 13, 09337 Hohenstein-Ernstthal, Germany, All rights reserved, www.zwaveeurope.com - pp 1
