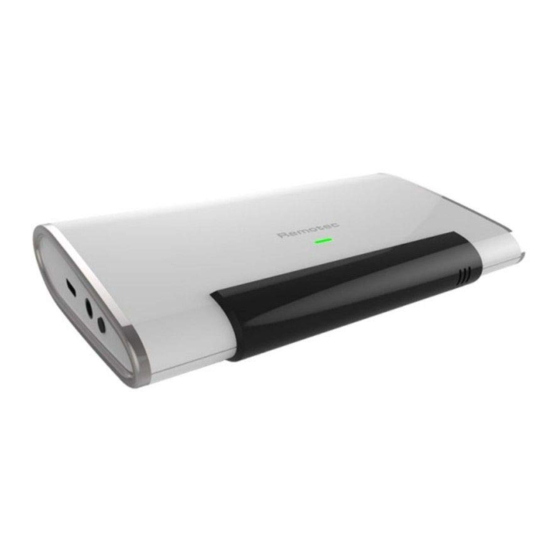

Remotec ZXT-600 Installation Manual

Z-wave-to-ir bridge
Hide thumbs Also See for ZXT-600:
Table of Contents

Advertisement

Quick Links

ZXT-600
AC MASTER
INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZXT-600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Remotec ZXT-600

Summary of Contents for Remotec ZXT-600

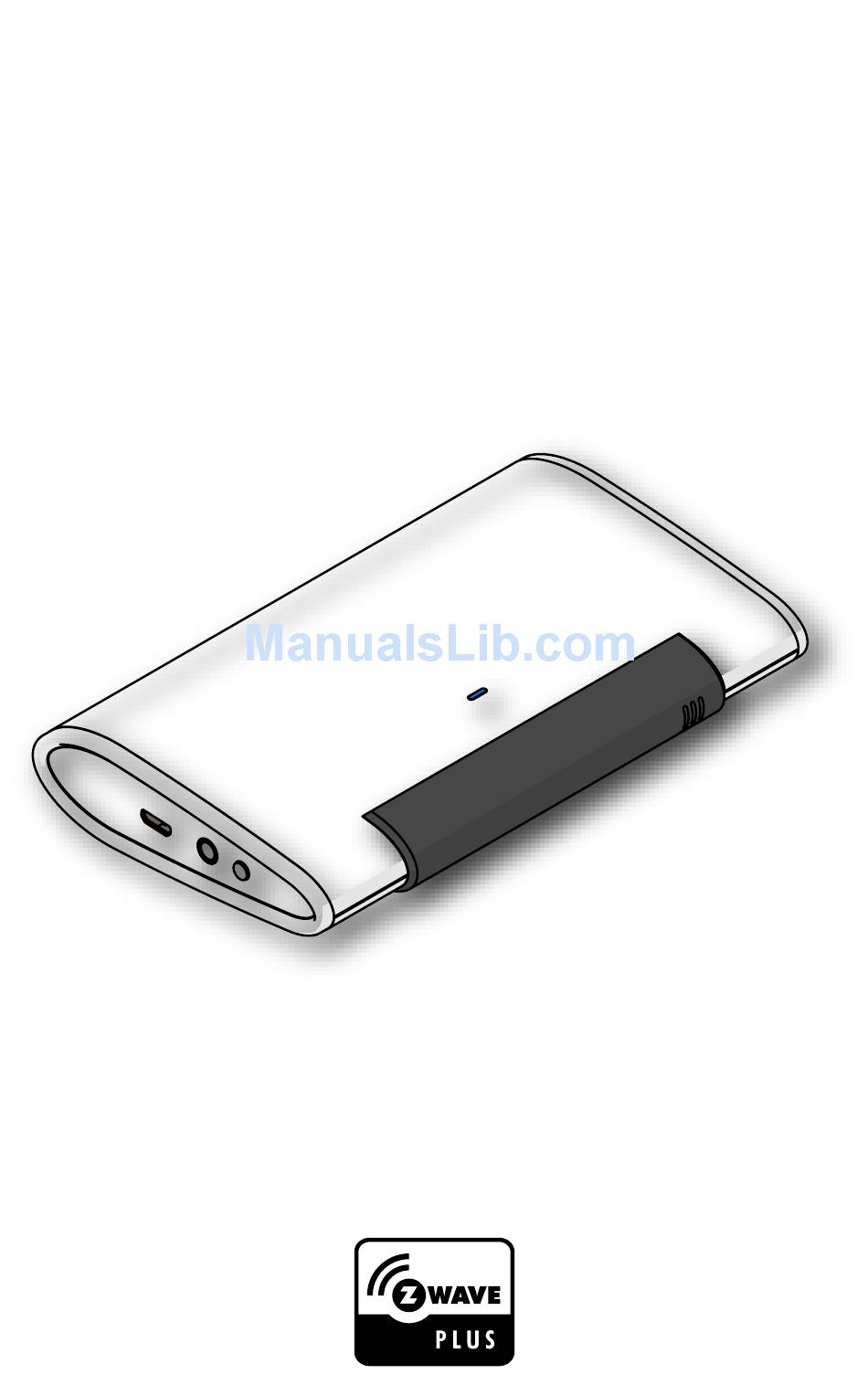

  • Page 1 ZXT-600 AC MASTER INSTALLATION GUIDE...

  • Page 3: Table Of Contents

    Get Started ....................6 Step 1 Apply Power to ZXT-600 .................. 6 Step 2 Include ZXT-600 to a Z-Wave Gateway ............6 Step 3 Setup Automatic Status Report Association to Gateway ........7 Step 4 Setup Air Conditioner IR code ................7 Other Setup Options through Configuration ........14...

  • Page 4: Introduction

    Z-Wave Plus Controller must be used in order to fully utilize the product. ZXT-600 is a Z-Wave slave device, it depends on gateway to setup particular AC brand with correct IR code. Different gateway has dif- ferent user interface for setup.

  • Page 5: Product Overview

    Product Overview Key Descriptions Temperature Sensor Micro USB "PROG" Button LED Indicator External IR Port BACK LABEL QR CODE...

  • Page 6: Features

    Features • Working as a Z-Wave thermostat • Support classic inclusion and NWI • Built-in air conditioner IR codes, as well as cloud-based IR code library • IR learning back up • Built-in temperature sensor for room temperature report • Working on battery (2x AA batteries) or USB power Z-Wave Glossary Device or Node Devices and nodes are all terms to describe an indi-...
  • Page 7 Z-Wave Network A collection of Z-Wave devices is controlled by prima- ry and secondary controllers operating on the same system. A Z-Wave network has its own unique ID code so that controllers not in the network cannot control the system. Primary Controller The first controller is used to set up your devices and network.

  • Page 8: Get Started

    Step 1 Apply Power to ZXT-600 • 2x AA batteries or micro USB • ZXT-600 will detect the first applied power source to decide what Z-Wave device role it will be in after included into the Z-Wave gateway: battery= sleeping device (FLiRS mode). USB power = always awake device (Always Listening mode), refer to Z-Wave Glossary for more information.

  • Page 9: Step 3 Setup Automatic Status Report Association To Gateway

    UI for the IR code setup please refer to the gateway UI and ignore the below steps. • If your gateway does not have dedicated UI for ZXT-600 IR code setup, but support Z-Wave thermostat Command Class and Con- figuration Command Class.
  • Page 10 Step Procedure / Description Status Indicator Refer to your primary controller user manual, enter to the browser page that can input the Configuration parameter. Input parameter number “27” and param- Green Indicator will eter value (Please use QR Code scanner to turn on.
  • Page 11 IR Code Learning Step Procedure / Description Status Indicator Refer to your primary controller user manual, enter to the browser page that can input the Configuration parameter Look up Below mapping table for learn- ing, and decide the IR setting you intent to learn next.
  • Page 12 Tips • Make sure your Original Remote is in Power OFF Status. • Make sure your Original Remote set FAN Speed to AUTO and FAN SWING to AUTO/ON • Press and Hold the Power Key on Original Remote UNTIL AC Mas- ter indicate Successful or Not.
  • Page 13 IR Learning Mapping Table (Parameter Number 25) Thermostat Command & IR Setting Parameter Value (Storage Location) Storage in Celsius Unit Storage in Fahrenheit Unit ON (RESUME) ON (RESUME) 17°C COOL 63°F COOL 18°C COOL 64°F COOL 19°C COOL 66°F or 67°F COOL 20°C COOL 68°F or 69°F COOL 21°C COOL...
  • Page 14 23°C HEAT 74°F or 75°F HEAT 24°C HEAT 76°F HEAT 25°C HEAT 77°F or 78°F HEAT 26°C HEAT 79°F or 80°F HEAT 27°C HEAT 81°F or 82°F HEAT 28°C HEAT 83°F or 84°F HEAT 29°C HEAT 85°F HEAT 30°C HEAT 86°F HEAT DRY MODE DRY MODE...
  • Page 15 Data to Air Conditioner if User set 27°C Cool on the gateway. • User can still use gateway to set up Scene and Schedule with ZXT-600. For example, to have AC turn on at 23°C every day at 7am, 25°C at 11pm. Just make sure the set code is learnt.

  • Page 16: Other Setup Options Through Configuration

    0 to 4 (0x00 to 0x04) 0(0x00) : Idle - IR Channel is idle 1(0x01) : OK - the last learning opera- tion was completed successfully 2(0x02) : Learning - ZXT-600 is busy Check IR Code processing previous learning request Learning 26(0x1A) 3(0x03) : Full –...
  • Page 17 Set Built- in IR Emitter Control ( If there have two or more Air Condition- ers with the same code set Default: 0xFF that are used 0 or 255 in the same 32 (0x20) (0x00 or 0xFF) room, user 0(0x00): Disable can disable 255(0xFF): Enable (Default) the built-in IR...
  • Page 18 Temperature offset value. 0(0x00) = 0°C (Default) 1(0x01) = 1°C 2(0x02) = 2°C 3(0x03) = 3°C Calibrate 4(0x04) = 4°C temperature 37 (0x25) 5(0x05) = 5°C reading 255(0xFF) = -1°C 254(0xFE) = -2°C 253(0xFD) = -3°C 252(0xFC) = -4°C 251(0xFB) = -5°C 0(0x00) = Disable AUTO report func- tion (Default) (for saving battery life)

  • Page 19: Support For Association Groups

    Note: All the above Parameter Number and Value is in Hexadecimal Numbering Format, if the Gateway only support decimal numbering format, please change it to deci- mal value accordingly. Mapping Information • BASIC Set Value 0x00 will map to Thermostat mode OFF 0x00 •...

  • Page 20: Reset To Factory Default

    • Use new batteries of the recommended type and size only • Never mix used and new batteries together • To avoid chemical leaks, remove batteries from the ZXT-600 if you do not intend to use the device for an extended period of time.

  • Page 21: Mounting Location Tips

    Mounting Location Tips The ZXT-600 should be mounted on an inner wall about 5ft (1.5m) above the floor where it is readily affected by changes of the general room temperature with freely circulating air. Before mounting, check the material and structure of the mounting location.

  • Page 22: Technical Specifications

    Technical Specifications Model no. BW8490US (ZXT-600US) BW8490EU (ZXT-600EU) BW8490AU (ZXT-600AU) BW8490JP (ZXT-600JP) BW8490KR (ZXT-600KR) BW8490IN (ZXT-600IN) BW8490CN (ZXT-600CN) RF Frequency 908.4MHz (ZXT-600US) 868.4MHz (ZXT-600EU) 921.4MHz (ZXT-600AU) 922.5MHz (ZXT-600JP) 920.9MHz (ZXT-600KR) 865.2MHz (ZXT-600IN) 868.4MHz (ZXT-600CN) Up to 132ft outdoor line of sight, in unobstructed Operating Distance environment Temperature...

  • Page 23: Warranty

    All warranty claims must be made to Remotec appointed distributors or dealers during the applicable warranty period. This warranty gives you specific legal right and you may also have other rights which vary in each country.

  • Page 24: Regulatory Information

    Regulatory information FCC ID : M7N-BW8490 FCC Compliance Statement This device complies with Part 15 of the FCC rules. Operation is sub- ject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including inter- ference that may cause undesired operation.

  • Page 25: Ic Notice

    IC Notice This device complies with Industry Canada licence-exempt RSS stan- dard(s). Operation is subject to the following two conditions: • This device may not cause interference, and • This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada ap- plicables aux appareils radio exempts de licence.
