- Page 1 Installation Guide for 10 GigaBit Media Converter Doc PUBFMCXFPU, Rev. 3, 01/07...
-
Page 3: Table Of Contents
10 GigaBit Media Converter Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key Features . - Page 4 10 GigaBit Media Converter PLEASE READ THESE LEGAL NOTICES CAREFULLY. By using a Net Optics 10 GigaBit Media Converter you agree to the terms and conditions of usage set forth by Net Optics, Inc . No licenses, express or implied, are granted with respect to any of the technology described in this manual .
-
Page 5: Introduction
10 GigaBit Media Converter Introduction Net Optics 10 GigaBit Converters are optimized, high-performance media converters for connecting dissimilar 10 GigaBit devices and links . Deploy these bidirectional media converters individually to connect SR and LR fiber devices, or in pairs at each end of long-distance fiber links. These Converters are the per- fect solution for dispersed networks where media conversion is required between multimode segments separated by long distances . -
Page 6: Key Features
. Our technical support team is available from 8 am to 5 pm Pa- cific Time, Monday through Friday at +1 (408) 737-7777 and via email at ts-support@netoptics .com . FAQs are also available on Net Optics website at www .netoptics .com . -
Page 7: About This Guide
FMC-XFP 10 GigaBit Converter Unpacking and Inspection Unpack the 10 GigaBit Media Converter, verify that you have all components by checking the Packing List against goods received . The 10 GigaBit Media Converter ships with the following: • 2 Power supplies •... -
Page 8: Product Diagram

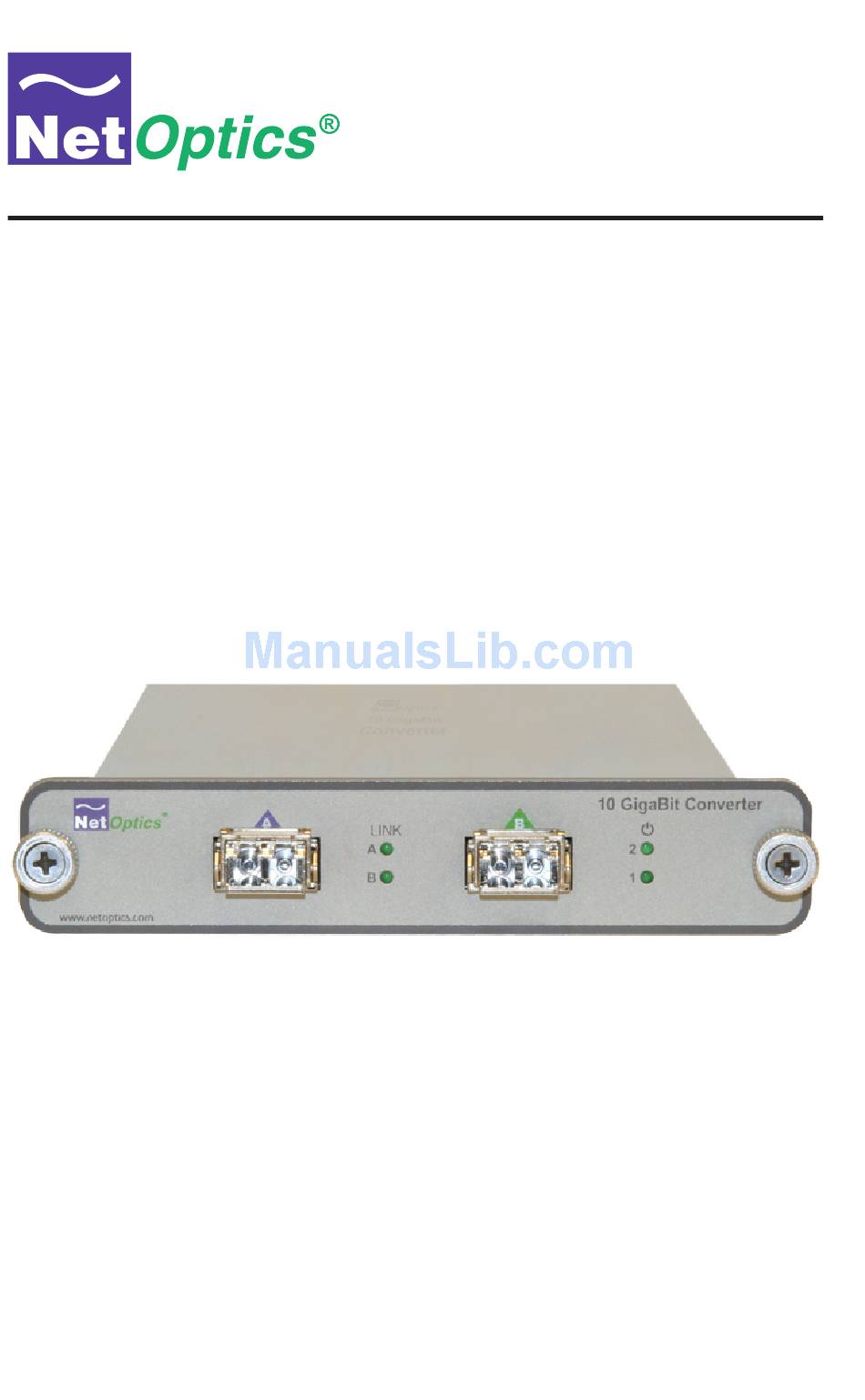

10 GigaBit Media Converter Product Diagram SR XFP Connector LR XFP Connector 10 GigaBit Converter ® LINK www.netoptics.com Figure 1: FMC-LR/50SR Front Panel... -
Page 9: Installing The Media Converter
10 GigaBit Media Converter Installing the Media Converter The Converter has two LC XFP connectors labeled according to media type. If you have any doubt, you can verify connector type by removing the XFP and reading the label on the bottom of the XFP. -
Page 10: 10 Gigabit Ethernet Connection Distances
10 GigaBit Media Converter 10 GigaBit Ethernet Connection Distances 10GB-SR (850 nm laser) Fiber Fiber Core Type Bandwidth Distance Diameter Mhz/km Multimode 160 Mhz/km 26 m 62.5 µm 62.5 µm Multimode 200 Mhz/km 33 m 50.0 µm Multimode 400 Mhz/km 66 m 50.0 µm... -
Page 11: Specifications
10 GigaBit Media Converter Specifications Environmental Operating Temperature: 0˚C to 40˚C Storage Temperature: -10˚C to 70˚C Relative Humidity: 10% min, 95% max, non-condensing Mechanical Dimensions: 1 .0” high x 5 .3” deep x 2 .9” wide Power Power Supply: Input: 100-240 VAC, 0 .6A, 50-60 Hz (AC100-125V~30VA, 50-60 Hz, for Japan) Output: 5V, 2A (5V, 2 .4A for UK and Japan) - Page 12 10 GigaBit Media Converter Connectors FMC-XFP (2) XFP hot-pluggable XFP Conversion Kits (ordered separately) XFPKT-50SR 10GBase-SR XFP Conversion Kit 50µm XFPKT-SR 10GBase-SR XFP Conversion Kit XFPKT-LR 10GBase-LR XFP Conversion Kit...
-
Page 13: Limitations On Warranty And Liability
10 GigaBit Media Converter Limitations on Warranty and Liability Net Optics offers a limited warranty for all its products . IN NO EVENT SHALL NET OPTICS, INC . BE LIABLE FOR ANY DAMAGES INCURRED BY THE USE OF THE PRODUCTS (INCLUDING BOTH HARDWARE AND SOFTWARE) DESCRIBED IN THIS MANUAL, OR BY ANY DEFECT OR INACCURACY IN THIS MANUAL ITSELF . - Page 14 10 GigaBit Media Converter Notes:...
- Page 15 10 GigaBit Media Converter Notes:...
- Page 16 © 2009 by Net Optics, Inc . All Rights Reserved .
