Summary of Contents for Net Optics GIGABIT TX TO SX TAP CVT-GCU/SX

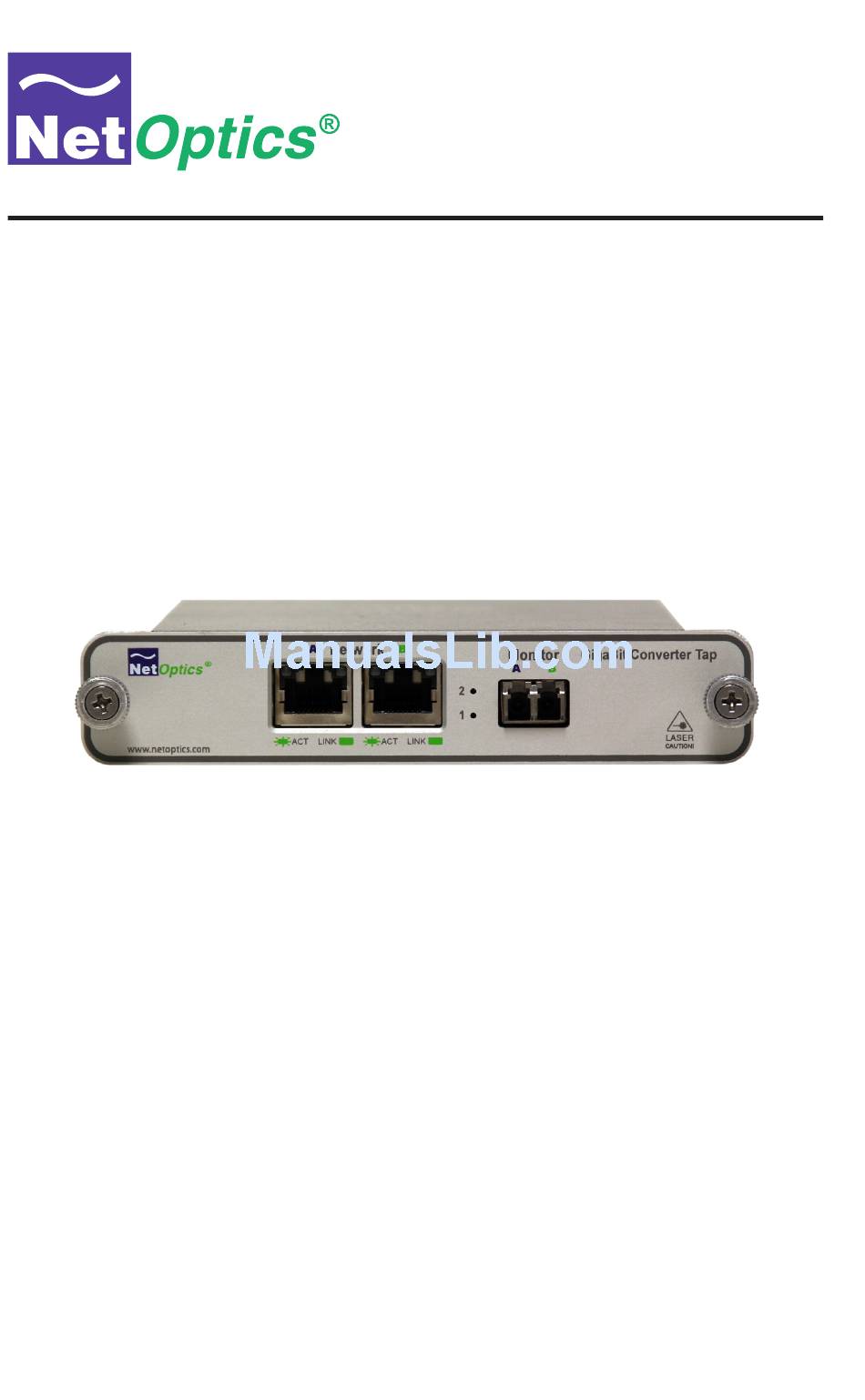

- Page 1 Installation Guide for GigaBit TX to SX Tap Model CVT-GCU/SX Doc. PUBCVTGCUSXU Revised 03/07...
-
Page 4: Table Of Contents
Installation Guide for Gigabit TX/SX Tap Table of Contents Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key.Features. - Page 5 Installation Guide for Gigabit TX/SX Tap PLEASE READ THESE LEGAL NOTICES CAREFULLY. By.using.a.Net.Optics.Tap.you.agree.to.the.terms.and.conditions.of.usage.set.forth.by.Net.Optics,.Inc . No. licenses,. express. or. implied,. are. granted. with. respect. to. any. of. the. technology. described. in. this. manual ..Net.Optics.retains.all.intellectual.property.rights.associated.with.the.technology.described.in. this.manual ..This.manual.is.intended.to.assist.with.installing.Net.Optics.products.into.your.network . Trademarks and Copyrights ©.2007.by.Net.Optics,.Inc ..Net.Optics®.is.a.registered.trademark.of.Net.Optics,.Inc ..Additional.com- pany.and.product.names.may.be.trademarks.or.registered.trademarks.of.the.individual.companies.and.
-
Page 6: Introduction
Introduction Net Optics GigaBit TX to SX Tap simplifies connecting FX fiber monitoring and.security.devices.to.GigaBit.copper.network.links ..Convert.TX.to.SX.and. tap.into.the.link.with.one.device,.reducing.cost.and.complexity.at.the.same. time ..GigaBit.TX.to.SX.Taps.support.passive.monitoring.of.GigaBit.links.at. speeds.at.1000.Mbps . Transparent Access GigaBit.TX.to.SX.Taps.establish.permanent.passive.access.ports.without. introducing.a.point.of.failure.or.disturbing.other.network.connections ..These. passive.Taps.deliver.full-duplex.monitoring.with.zero.impact.on.network.traf- fic around the clock. Security and Visibility Without.an.IP.address,.monitoring.devices.are.isolated.from.the.network,. dramatically.reducing.their.exposure.to.attacks ..However,.the.monitoring. device connected to the Tap still sees all full-duplex traffic as if it were in-line, including.Layer.1.and.Layer.2.errors . -
Page 7: Product.diagram
Key Features (continued) Passive, Secure Technology • Passes all full-duplex traffic (including errors) from all layers for comprehensive.troubleshooting •. No.IP.address.is.needed.for.the.Tap.or.monitoring.device,.enhancing.. monitoring.security •. Redundant.power.ensures.monitoring.uptime •. Fully.IEEE.802 .3.compliant Ease of Use •. LED.indicators.show.redundant.power.and.link.status •. Front-mounted.connectors.make.installation.and.operation.quick.and.easy •. Silk-screened.application.diagram.illustrates.all.connections.for.easy.. deployment •. Optional.19-inch.rack.frames.hold.up.to.3.or.12.Taps •. Tested.and.compatible.with.all.major.manufacturers’.monitoring.devices,. including.protocol.analyzers,.probes,.and.intrusion.detection/prevention. -
Page 8: Connecting.a.gigabit.tx.to.sx.tap.to.the.network
Connecting a GigaBit TX to SX Tap to the Network 1 ..Unpack.the.Tap.and.verify.that.you.have.all.components,.and.obtain.the. required.cables.needed.to.successfully.install.the.unit . 2 ..Connect.Network.Port.A.to.the.appropriate.switch,.server.or.router.using.a. CAT5E RJ45 straight-thru cable. This will act as your DCE interface. 3 ..Connect.Network.Port.B.to.the.appropriate.switch,.server.or.router.using.a. CAT5E RJ45 straight-thru cable. This will act as your DTE interface. 4. -
Page 9: Connecting.a.gigabit.tx.to.sx.tap.to.the.monitoring.device
Connecting a GigaBit TX to SX Tap to the Monitoring Device 1 ..Supply.power.to.the.Tap.using.the.2.redundant.power.supplies.included. with the unit. Verify that the Power LED illuminates. 2 ..Using.a.Net.Optics.Custom.Monitor.Cable,.connect.the.single-duplex.end. to.the.Tap.Monitor.Port.A/B . 3 ..Connect.the.twin-duplex.end.of.the.cable.labeled.DCE.into.the.appropriate. monitoring.device.port.to.monitor.the.DCE.link .. 4. Connect the other twin-duplex end to the appropriate monitoring device port.to.monitor.the.DTE.link .. - Page 10 Connecting a GigaBit TX to SX Tap to the Monitoring Device ® www.netoptics.com Installation Guide for Gigabit TX/SX Tap Network LINK LINK Figure.3 . Monitor GigaBit Converter Tap GigaBit Converter Tap LASER CAUTION! To monitoring device...
-
Page 11: Specifications
Specifications Splitter Specifications: Split.Ratio:.50/50 Fiber.Type:.Multimode.Corning.62 .5/125µm,.wavelength.850nm Insertion Loss: Network Port: ≤ 4.5 dB Operating Specifications: Operating Temperature: 10˚C to 55˚C Storage Temperature: 0˚C to 70˚C Relative.Humidity:.10%.min,.95%.max,.non-condensing Mechanical Specifications: Power Supply: Input: 100-240 VAC, 47-63 Hz, 0.5A Dimensions: 1.125" high x 6.5" deep x 4.5” wide Connectors: (1) Duplex SC connector (monitoring port) (2) RJ45, 8 pin connectors (network ports) -
Page 12: Warranty
Installation Guide for Gigabit TX/SX Tap Limitations on Warranty and Liability Net Optics offers a limited warranty for all its products. IN NO EVENT SHALL NET OPTICS, INC. BE LIABLE FOR ANY DAMAGES INCURRED BY THE USE OF THE PRODUCTS (INCLUD- ING BOTH HARDWARE AND SOFTWARE) DESCRIBED IN THIS MANUAL, OR BY ANY DEFECT.OR.INACCURACY.IN.THIS.MANUAL.ITSELF ..THIS.INCLUDES.BUT.IS.NOT.LIM- ITED TO LOST PROFITS, LOST SAVINGS, AND ANY INCIDENTAL OR CONSEQUENTIAL... - Page 13 Installation Guide for Gigabit TX/SX Tap Notes:...
- Page 14 Installation Guide for Gigabit TX/SX Tap Notes:...
- Page 16 www.netoptics.com ©.2007.by.Net.Optics,.Inc ..All.Rights.Reserved ...
