Summary of Contents for Divesoft Freedom
-
Page 2: Table Of Contents
FREEDOM Technical diving computer from DIVESOFT User Manual Contents Welcome to the world of FREEDOM ....................... 6 Warnings ..............................6 Dimensions .............................. 9 Charging ..............................10 Activation .............................. 10 Control ..............................10 Buttons .............................. 10 Universal codes ..........................11 Working with menus ........................11 Main screen codes ......................... - Page 3 Units .............................. 19 Checklist ............................19 Plan order ............................19 Key press delay ..........................20 Editor navigation ........................... 20 Gas shortcuts ..........................20 Salinity ............................20 Default mode ..........................20 Factory defaults ..........................20 Before the dive ..........................21 Salinity ............................21 Decompression ..........................
- Page 4 Diving with the ceiling method ..................... 37 Deep stops ............................. 37 Multi-gas decompression dives ......................37 Gas switching ..........................38 Gas correction ..........................39 Measrued CCR mode ..........................39 Activating CCR mode ......................... 39 Menu ..............................40 Bailout mode (OC) ......................... 40 Fixed SP mode (CCR) ........................
- Page 5 Sokoban ............................. 50 Game control ..........................50 Snake ..............................51 Game control ..........................51 Air transport ............................51 Maintenance ............................51 Storage ..............................51 Disposal of the device ........................... 51...
-
Page 6: Welcome To The World Of Freedom

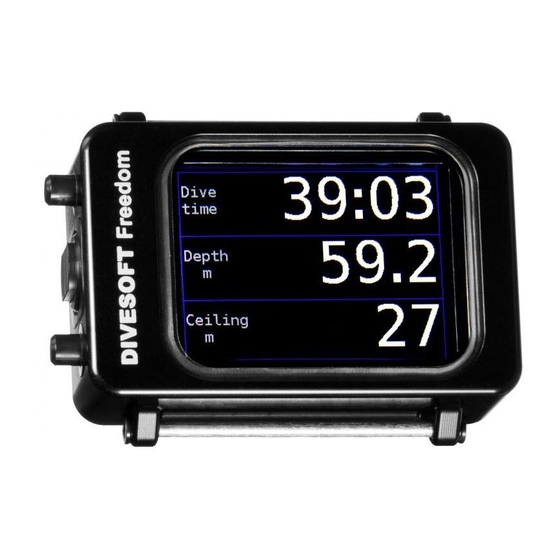

Congratulations on your purchase of a Divesoft Freedom – computer for technical diving. The FREEDOM is made with high precision in every detail from high-quality materials for long life in the harsh conditions of military, deep and cave diving. The solid aluminum shell protects high-tech electronics with the most sophisticated decompression software. - Page 7 Always use realistic SAC rates and conservative turn pressures during dive planning. Always take heed of visual and vibrating alarms of the device! You need to take into account the danger of nitrogen narcosis. The FREEDOM does not issue any warnings in connection with this danger.
- Page 8 Like any technical equipment the FREEDOM may malfunction. The user must be able to detect a malfunction and deal with backup equipment and emergency procedures. To do this, the user must...
-
Page 9: Dimensions
Dimensions Weight 256g (0,564 lb) Length: 87mm (3.4 in) / 81mm (3.2 in) Width: 69mm (2.7 in) / 53mm (2.1 in) Height: 33mm (1.33 in) -
Page 10: Charging
After booting, the FREEDOM switches to surface mode. After descending to a 1.5 meters, the FREEDOM is activated automatically. In the mode in which it is activated depends on the default mode setting. -
Page 11: Universal Codes
Universal codes BOTH KEYS LONG return to the basic screen under the schematic, leaving all menus DEBUG SEQUENCE creation of an internal state of FREEDOM dump for later analysis of defects Working with menus KEY 1 select marked items KEY 2... -
Page 12: Tilting
Tilting Tilting is used if you want to change some values in the settings. Tilt the unit up to increase the value or check the box, down to decrease the value or uncheck the box, right to move the cursor to the right, left to move the cursor to the left. -
Page 13: Clicking
Clicking Clicking is an alternative to tilting for setting values. Tap the top of the unit with your fingers to increase the value or check the box, the bottom of the unit to decrease the value or uncheck the box, the right side of the unit to move the cursor to the right, and the left side of the unit to move the cursor to move the cursor to the left. -
Page 14: Surface Mode
DCS. DIVESOFT strictly recommends against flying before termination of the no-fly limit. Keep a sufficient period of time between your last dive and flying! Max. -
Page 15: Menu Navigation
Menu navigation After activating (BOTH KEYS LONG), Surface mode appears. Press BOTH KEYS to switch to the Main For basic menu control Key symbols are placed in the left column on the display. See the illustration below. KEY 1 – Confirmation/Enter BOTH KEYS –... -
Page 16: Main Menu Content
Main menu content Dive (OC) – selection of the desired dive mode Switch off – deactivation of the whole system. Switch off your FREEDOM when you are not using it in order to save its batteries. Log book - opens the computer’s memory. Instruction on how to use it are provided here Setup –... -
Page 17: Settings
Before first use Before the first use, it is necessary to decide how you want to use your new FREEDOM and set your personalization. Horizontal calibration Before the subsequent setup, it is crucial to have the correct level calibration. -
Page 18: Display
Orientation allows changing the orientation of the computer from left-hand orientation to right-hand orientation so that you can use your FREEDOM on either hand without changing the direction of the buttons. If you set AUTO orientation, the display is automatically set after start. -
Page 19: Timeouts
Units Main menu > Setup > Preferences > User interface > Units The FREEDOM computer can work with both metric and imperial units. Select your preferred unit. Checklist Main menu > Setup > Preferences > User interface > Checklist Enable or disable checklist before dive modes (OC, CCR) activation. -
Page 20: Key Press Delay
Plan order determines whether depth issues in the plan are arranged from the top down or reverse. “normal” bottom time and the first stop are below “reverse” bottom time and the first stop are above Key press delay Main menu > Setup > Preferences > User interface > Key press delay You can choose how long you must press the button for a given action. -
Page 21: Before The Dive
Before the dive It is a good idea optimize your FREEDOM for your specific dive goals and needs. You can choose your decompression strategy in many ways, prepare gases for your dive and set alarms, among many more parameters. Salinity Main menu >... - Page 22 the surface. If the GF = 0.3, tissue compartments are saturated at 30% of M-value. Two GFs can be set: gradient factor low and gradient factor high. Gradient factor low determines the extent of oversaturation at depth. This value is relevant to the first decompression stop depth. GF high is the value of determined oversaturation at the end of ascent.
- Page 23 Change the setting with KEY 1 Rounding Main menu > Setup > Decompression > Deco stops > Rounding The FREEDOM rounds the ascent and decompression time in 1s, 30s and 60s relations. Deep stop Main menu > Setup > Decompression > Deep stop In order to prevent the formation of microbubbles in a diver’s tissues, it is a good idea to make deep...
-
Page 24: Mixtures
Ascent rate Main menu > Setup > Decompression > Ascent rate Some divers could take advantage of the possibility of a more aggressive ascent rate at greater depths. Other divers would like to be safer by using a very slow ascent speed in the upper part of the dive or between deco stops. -
Page 25: Alarms
Alarms Main menu > Setup > Alarms The FREEDOM contains numerous vibration alarms. The diver can set many kinds of alarms which he considers to be important or can centrally deactivate all alarms. WARNING: Because the FREEDOM is primarily suited for technical diving, all alarms are turned off by default. - Page 26 – alarm triggered by exceeding decompression ceeling Ceiling Deco stop miss – alarm triggered by missing a decompression stop – alarm triggered by achievement 75% and 100% CNS clock – alarm triggered by exceeding the safe limit of oxygen partial pressure (1.6 bars) RATES Descent rate –...
-
Page 27: Ccr Setup
With the “Diluent” item, set the composition of the utilized diluent for your planned dive. WARNING! If you set a different diluent than the one you are actually using, the Freedom computer will actually calculate the wrong decompression and CNS toxicity calculation. This situation can cause serious... -
Page 28: Faulty Sensors
In the “SP low” item, set the value of your low setpoint in ppO2 bars. Notice: the Freedom is not a control computer for your automatic solenoid valve for oxygen dosing. The Freedom serves only for calculating decompression on the basis of:... -
Page 29: System Check
Diving with Freedom Open circuit – dive mode The dive mode is the heart of the FREEDOM system. The dive mode serves for online calculation of decompression using conventional open-circuit scuba equipment. It is possible to use a wide range of breathing mixtures, from Air and NITROX to HELIOX and TRIMIX. You can use up to nine variable mixes as travel, bottom and decompression mixes. -
Page 30: The Synoptic Screen
The Synoptic screen is well arranged for quick and easy reading of key data: Dive time, Ascent time, Depth,. Deco stop, Stop time, PO2, decompression-status graphic symbol, battery-status graphic symbol Big screen displays just essential data: dive time, depth, PO2... -
Page 31: Screens Legend
displays the current dive profile graph, which displays the situation at the Graph screen moment of switching to the graph screen and it is refreshed every five seconds. Under the graph are displayed essential online data: dive time, depth, PO2. Screens legend Depth –... -
Page 32: Open Circuit Menu
Ascent time – length of time needed to reach the surface. It includes ascent speed, deep stops (if selected) and decompression stops. Ascent time is displayed instead of of No deco at the moment when decompression stops become necessary. Deep Stop – additional stops in the deeper part of the dive. Deep stops can prevent could the formation of microbubbles. -
Page 33: No-Decompression Dives
Deep stop reached Safety stop. Stay between 6 and 3 meters for 3minutes. No-decompression dives Before the dive, activate your FREEDOM, go to Main menu and select Open circuit or make sure that you have set Open circuit as your Default mode for correct automatic activation. -
Page 34: Screensaver
During the dive it is possible to switch between screens with KEY 1. Open circuit menu remains available during the whole dive. During the ascent, maintain the ascent rate. In the case of exceeding the ascent rate, two red arrows are displayed in the right-side column and the alarm vibrates if it is set. -
Page 35: End Dive
The safety stop is interrupted if the diver falls below a depth of six meters. After returning above this depth, the safety-stop countdown starts again from the beginning. When the diver completes a safety stop and then falls below 10 meters again, then it is necessary to make a safety stop from the beginning. -
Page 36: Decompression Stops
The current course of decompression can be displayed during the dive. If you are just under the surface or you launch a demo dive, go to the menu (BOTH KEYS) and select the “Show plan” item. The Freedom will display the list of decompression stops and the length thereof. Use of all set... -
Page 37: Diving With The Ceiling Method
If there is a difference greater than 18 m between the maximum depth and the first regular decompression stop, the FREEDOM shows the depth of the deep stop in the lower right box (if deep stops are set). When the diver reaches the deep stop depth, the countdown starts in the lower right box instead of the deep-stop depth. -
Page 38: Gas Switching
Make absolutely sure that you that you are using the regulator from the desired bottle! When you start breathing from a new bottle, switch to the currently used gas in your computer. There are two ways to switch gases in the FREEDOM. The first possibility is to access the Open circuit menu with BOTH KEYS. -
Page 39: Gas Correction
Freedom computer. In such a case, this does not depend on the principle of the utilized rebreather (all types of SCR, eCCR and mCCR can be used). -
Page 40: Menu
(BOTH KEYS) and select the “Show plan” item. The Freedom will display the list of decompression stops and the length thereof. Use of all set mixtures with gas switch at the optimum depth is anticipated in the calculation of the ascent time. -
Page 41: Fixed Ccr Mode
Fixed CCR mode The Fixed CCR mode is intended for apparatuses with a fully closed circuit (eCCR, mCCR) that do not have their own decompression computer but do have their own ppO2 monitor. In this mode, decompression is calculated on the basis of strictly set partial pressure, which corresponds to the selected setpoint on the rebreather. -
Page 42: Menu
(BOTH KEYS) and select the “Show plan” item. The Freedom will display the list of decompression stops and the length thereof. Use of all set mixtures with gas switch at the optimum depth is anticipated in the calculation of the ascent time. -
Page 43: Free Mode
(Surface mode main menu> Setup> Free setup> Free mode start depth or Free mode> Setup> Free mode start depth) in the range from 1 m to 2 m. Start dive – the dive time starts at the moment when the diver’s wrist with a fitted FREEDOM computer exceeds the Free mode start depth. -
Page 44: Surface Part
Temperature – current temperature in Celsius or Fahrenheit. Battery status – graphic symbol of battery status: green when fully charged, yellow when at 50%- 30% capacity, orange at 30%-10% capacity, red when the battery charge is lower than 10% of capacity. -
Page 45: Free Mode Setup
Free mode setup Go to Surface mode main menu>Setup>Free Setup It is possible to set depths where the timer is activated and stopped automatically. You can choose activation (At depth) and deactivation (At depth) separately. -
Page 46: Gauge Mode
If you want to use Gauge mode after a scuba dive, make sure that you can use dive tables or decompression planning software for your next exposure. Divesoft is not responsible for any decompression problems caused by poor planning and using Gauge mode. -
Page 47: Plan
In the “Surface interval” item, use tilting or tapping to set the time interval between the current time and the time of starting the planned dive. The Freedom takes into account the diver’s tissue saturation with inert gases from previous dives. -
Page 48: Log Book
Only eight lines can be displayed on the Freedom computer’s screen. In the event that a planned dive requires more decompression stops, these are displayed on the following page. -
Page 49: Data Transfer
When the log memory is full, the oldest dives are overwritten. Data transfer Connect the FREEDOM to your PC or tablet with a USB cable. Select USB in the menu. The FREEDOM will be connected to your device as an external disk drive. Download files from the DIVELOG folder to your hard drive and then upload data to WETNOTES.COM. -
Page 50: Firmware Update And Upgrade
WARNING: License is fixed to serial number and non-transferable to other computers. Games The DIVESOFT FREEDOM contains games for relieving boredom during decompression stops . When playing games, depth is the only displayed data. WARNING: Playing a game could reduce your attention to vital functions and important life- threatening situations. -
Page 51: Disposal Of The Device
Air transport When transporting the Freedom computer by plane, the changes in pressure can cause activation of the device to occur. This can be due to an overly sensitive pressure sensor, which gauges pressure for the purpose of determining depth. In order to prevent unwanted activation, switch the Freedom to Flight mode (Main menu >...
