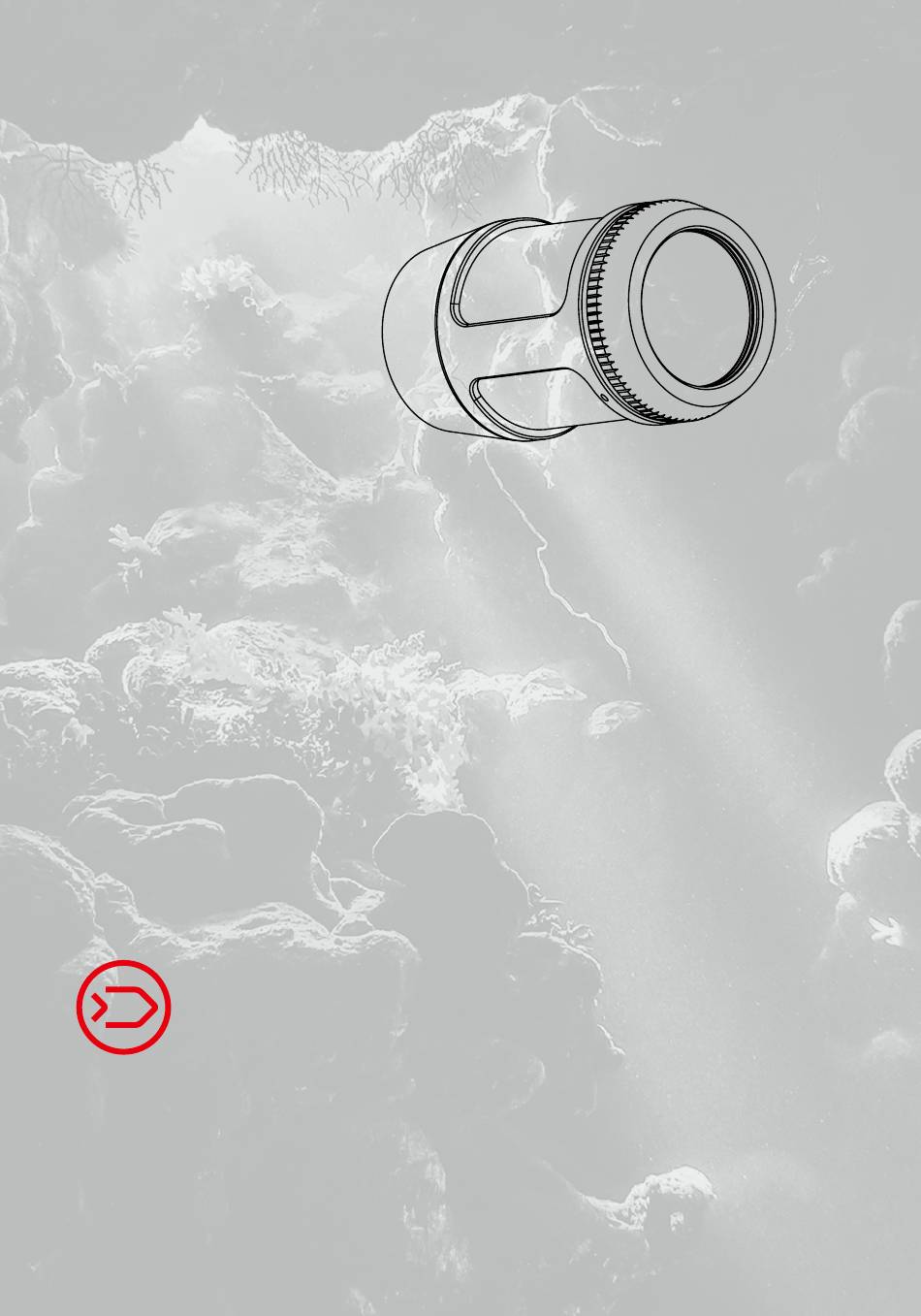

- Page 1 USER MANUAL...
- Page 2 WARNING: ODA is an supplemental device. Do not use ODA as the sole source of information displayed. WARNING: This device is intended only for thoroughly trained persons with a valid certification for diving with a Liberty rebreather. Improper use can cause injury or death.
-
Page 3: Table Of Contents
Position of the ODA relative to the diver’s eye . . . . . . . . . . . . . . . . -
Page 4: Oda Technical Specification
Buoyancy: neutral Connection: HUD/BD connector Connectivity: Divesoft Liberty 2021 edition Materials Body: Delrin Optics: Sapphire glass with anti-reflex coating Display resolution: 428 × 240 pixels Focus: Fully adjustable Color: black Package content: Semi hard case, ODA, lens cover, adjustable mount... -
Page 5: What Is The Oda
, depth, time, no-decompression time / decompression ceiling, TTS, setpoint, oxygen sensor deviation, oxygen pressure, and diluent pressure . ODA can only be used with the Divesoft Liberty platform . It cannot be connected to other rebreathers or used as a standalone computer . -
Page 6: How To Connect Oda And Put It In To Operation
IMPORTANT: ODA must be assigned an indication using a handset . On the handset in the main menu, select Setup / Preferences / Indication . For Left and Right, Buddy D ., HUD, ODA, and None are selected . Depending on the actual ODA location (left CU, Right CU), select the ODA value for the item . -
Page 7: Placement
. Adjust the position of the ODA so that it is in your field of view and at the same time does not excessively obstruct the view and does not collide with your diving mask . Pay close attention to the setting of the ODA angle to your eye . -
Page 8: Focus
Focus Rotate the eyepiece adjustment ring so that in the set ODA position, you can see the display sharply while seeing the surroundings without having to close the opposite eye or refocus between the display and the surroundings . The screen image should appear as if projected into the environment . -
Page 9: Rear Diode And Luxmeter
Rear diode and luxmeter At the back of the ODA there is a diode serving as a buddy display, which indicates to the diving partner the breathability of the gas in the loop or reports the danger of the diver . At a partial pressure of <0 .2 bar and>... -
Page 10: Oda Behaviour During The Pre-Dive Check Sequence
During the pre-dive check procedure, the basic display is constantly displayed, and during the HUD check you will be prompted to check the ODA screen . When checking the Buddy display, the corresponding colour of the rear LED lights up according to the colour displayed on the display . -
Page 11: How To Read The Data On The Display
How to read the data on the display Dive time – Cumulative dive time from the beginning of the descent . Time begins to count down when the diver descends to a depth of 1 .5 m Depth (m or ft) – current depth in meters or feet according to Liberty settings SP –... - Page 12 The scale is for guidance only . An important fact for divers is whether the columns are in one plane, or whether one or more columns deviate from the others and, if so, to what extent they deviate. The bars in the plane mean that all sensors show the same value . Deviating columns means a sensor with a different value than the others .
-
Page 13: Alarms
Alarms If necessary, ODA will alert divers by flashing . It is divided according to severity into notifications and alarms . Notifications – operational notifications, such as setpoint change, end of no-decompression time, etc . Signalled by a short white flash . The value to which it applies is highlighted . The notification is accompanied by a pop-up message . -
Page 14: Compass And Its Control
Compass and its control ODA is equipped with a built-in compass in the body of the device . Thus, the diver directly determines the direction in which he is looking . The compass constantly evaluates its own accuracy, this tells the diver the compass reliability at any given moment . -
Page 15: Position Of The Oda Relative To The Diver's Eye
ODA mounted on your DSV or BOV . However, it is essential that this position is firmly fixed and does not change during the dive . - Page 16 ODA USER MANUAL Author Jakub Šimánek Publisher Divesoft s .r .o . | www .divesoft .com Issue Revision 1 .0 | 1 May 2021 Use of this manual approved by Lucie Šmejkalová, CEO...
