START
Click the button and follow the
instructions.
CC-GL11
Quick Start

Advertisement

Table of Contents
loading

Related Manuals for Cateye Stealth EVO CC-GL11

Summary of Contents for Cateye Stealth EVO CC-GL11

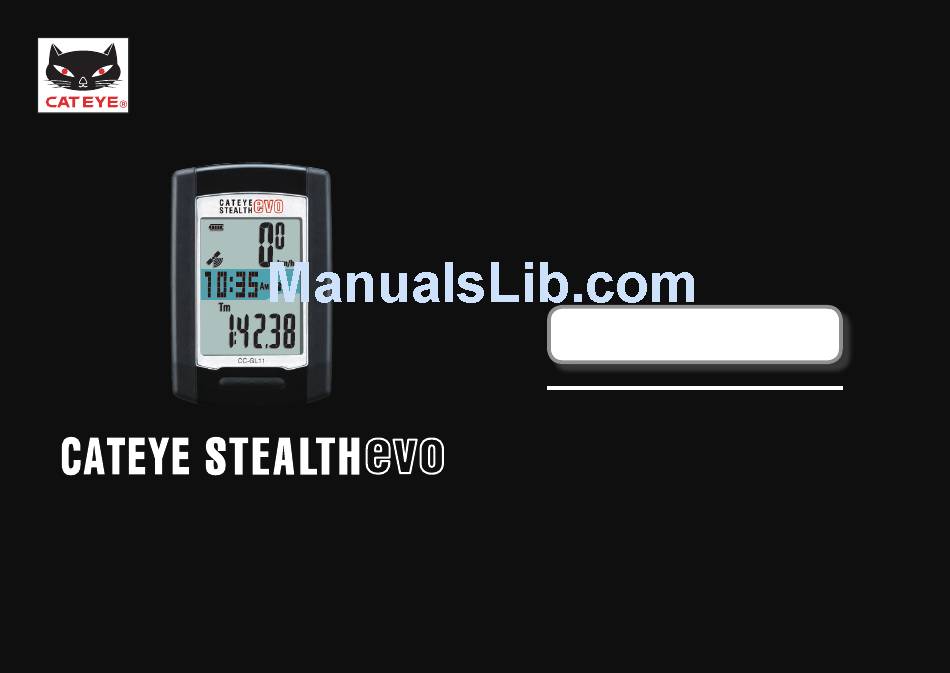

  • Page 1 START Click the button and follow the instructions. CC-GL11 Quick Start...
  • Page 2 Thank you for purchasing our cyclocomputer CATEYE STEALTH evo. This Quick Start Manual explains how to set up the STEALTH evo and how to install the unit on your bicycle. Please set up the unit according to the specified procedure, then it will be ready for use as a cyclocomputer.
  • Page 3 This PDF contains a movie file. When you click on the movie screen, a message regarding security appears. Click the “Trust in the text” or “Play” button to close the message. Click the screen again to play the movie. Next...
  • Page 4 Return to a Cover Quick Start Manual Contents Click on the item to view. Setting up the STEALTH evo How to install the bracket (movie format) Perform measurement Set up the STEALTH evo from a PC...

  • Page 5: Operation Of Buttons

    Operation of buttons Set up the STEALTH evo by operating the buttons as follows. Check the button position before you start setting up. (Power) MENU MODE Next...
  • Page 6 Return to Contents Quick Start Manual Setting up the STEALTH evo Power ON Power ON Pressing and holding the button on the back of the STEALTH evo for 2 seconds turns on the power, and the Formatting operation screen lights up. Setting the speed unit Setting the time zone Setting the daylight saving time...
  • Page 7 Return to Contents Quick Start Manual Setting up the STEALTH evo Formatting operation Power ON Press the MENU button on the back of the STEALTH evo and the AC button simultaneously. Formatting operation After all screen items light up, the display will be changed to the speed unit setting screen, and setup will start.
  • Page 8 Return to Contents Quick Start Manual Setting up the STEALTH evo Setting the speed unit Power ON When the MODE button is pressed, either “km/h” or “m/h (mile)” is selected for the speed unit display. Select the dis- Formatting operation play of your choice.

  • Page 9: Setting The Time Zone

    Return to Contents Quick Start Manual Setting up the STEALTH evo Setting the time zone Power ON Select the code for the city nearest from your current location, while viewing the “Time zone list”. Formatting operation When the MODE button is pressed, the city code chang- es.

  • Page 10: Setting The Daylight Saving Time

    Return to Contents Quick Start Manual Setting up the STEALTH evo Setting the daylight saving time Power ON Change ON/OFF according to the period of daylight sav- ing time, when you are on Daylight Saving Time. Formatting operation Press and hold the MODE button to go to the next step “Setting the clock display format”.

  • Page 11: Setting The Clock Display Format

    Return to Contents Quick Start Manual Setting up the STEALTH evo Setting the clock display format Power ON When the MODE button is pressed, either “12h” or “24h” is selected for the clock display format. Select the display Formatting operation format of your choice.
  • Page 12 Return to Contents Quick Start Manual Setting up the STEALTH evo Now, setup of the STEALTH evo is completed. Power ON When the bracket is not attached to your bicycle, return Formatting operation to Contents, click on “How to install the bracket (movie formant)”, and then attach it according to the instruc- Setting the speed unit tions.

  • Page 13: Time Zone List

    Return to Contents Quick Start Manual Setting up the STEALTH evo Time zone list City Time dif- -11:00 -10:00 -09:00 +08:00 -07:00 -06:00 -05:00 -04:00 -03:00 -02:00 -01:00 -00:00 +01:00 +02:00 +03:00 +04:00 +05:00 +06:00 +07:00 +08:00 +09:00 +10:00 +11:00 +12:00 City name code...

  • Page 14: Perform Measurement

    Return to Contents Quick Start Manual Perform measurement Start measurement Start measurement Stop measurement Important: Measurements cannot be made in locations where a GPS signal cannot be received. GPS signal received Turn on the power by pressing and holding the button.
  • Page 15 Return to Contents Quick Start Manual Perform measurement Start measurement Stop measurement Stop measurement To stop measurement, reset measurement data by Resetting operation pressing and holding MODE. All data measured up to the current point in time is created as trip data. For information about uploading trip data, return to the Contents page and watch the movie about up- MODE...
  • Page 16 Return to Contents Quick Start Manual How to install the bracket...
  • Page 17 STEALTH evo from a PC. What is CATEYE Atlas™ CATEYE Atlas™ is a website where you can view trips recorded with a STEALTH evo or INOU. • The trip (measurement data) loaded using CATEYE Sync™ can be viewed on a map and a graph.
  • Page 18 Return to Contents Quick Start Manual CATEYE Sync™ / CATEYE Atlas™ Click on the item to view. Before use : Setting up your PC Uploading the trip (movie format) View and edit the trip (movie format) Changing settings of the STEALTH evo (movie format)

  • Page 19: Setup Of Your Pc

    When you have an account: Membership registration is not required. Go to the next step “Installing CATEYE Sync™”. You can use the same account when using CATEYE INOU and having registered membership. When you do not have an account: Return...
  • Page 20 Return to Contents Quick Start Manual Setup of your PC Membership registration to CATEYE Atlas™ (2/3) Membership Membership Installing Setting registration to registration to CATEYE Sync™ CATEYE Sync™ Confirm the Terms of Service, and then click on CATEYE Atlas™(2/3) CATEYE Atlas™...
  • Page 21 Be sure to enter the required items. Confirm the registration, and then click on Entering the registration form Now, your membership registration is completed. After your membership registration is completed, go to the next step “Installing CATEYE Sync™”. Confirming the registration Return Next...

  • Page 22: Installing Cateye Sync

    Setup of your PC Installing CATEYE Sync™ (1/2) Membership Installing Setting registration to CATEYE Sync™ CATEYE Sync™ Click on the banner of CATEYE Sync™ from the top CATEYE Atlas™ (1/2) page of CATEYE Atlas™. The download page will open. Return Next...
  • Page 23 CATEYE Sync™ will start being downloaded. Double-click on the execution file downloaded. Install CATEYE Sync™ according to the instruction dis- played on the screen. Download After CATEYE Sync™ is installed, go to the next step for Windows “Setting CATEYE Sync™”. version Download for...

  • Page 24: Setting Cateye Sync

    Installing registration to CATEYE Sync™ CATEYE Sync™ Start CATEYE Sync™. CATEYE Atlas™ (1/2) Double-click the shortcut [CATEYE Sync™] to start CATEYE Sync™. C ATEYE Sync™ icon Click on [Q series / STEALTH] . The menu screen appears. Starting CATEYE Sync™...
  • Page 25 Login setting of CATEYE Sync™ is completed. Now, setup of your PC is completed. Enter your e-mail address and password Return to the contents of CATEYE Sync™/Atlas™ and see “Uploading, editing and sharing the trip” and “Changing settings of the STEALTH evo”.
  • Page 26 Return to Contents Quick Start Manual Uploading the trip...
  • Page 27 Return to Contents Quick Start Manual View and edit the trip The site screen in the video is showing a trip recorded with the Stealth 50 for an example.
  • Page 28 Return to Contents Quick Start Manual Changing settings of the STEALTH evo...
