1. DISPLAY WINDOW: Displays protection zone ID and
status messaaes.
2. OFF KEY:
silences alarms and audible trouble indicators. and
q
clears visual display after problem' s correction.
AWAY KEY: Arms the entire burglary system,
3.
q
perimeter and interior.
4. STAY KEY: Arms perimeter portion of burglary
system only. Interior protection is not armed, which
movement within premises without causing
5. •J MAXIMUM KEY: Arms in manner similar to AWAY
mode, but without the entry delay feature! thus provid-
ing maximum protection. An alarm
mediately upon opening any protection point, including
q
the main door.
6. TEST KEY: Tests the system and alarm sounder if
disarmed. Refer to TESTING THE SYSTEM section for
q
test procedures.
7. BYPASS KEY: Removes individual protection zones
q
from being monitored by the system.
8. INSTANT KEY: Arms in manner similar to STAY
mode, but without the entry delay feature. Entering
q
via the entry/exit door will cause an instant alarm.
9. CODE KEY: Used to assign additional user codes for
q
other users of the system.
10. CHIME KEY: Turns CHIME mode on and off. When
on, the opening of windows or doors while the system is
disarmed will sound 3 beeps at the keypad(s).
q
te: Keys
when preceded by an entry of the security code (as described later).

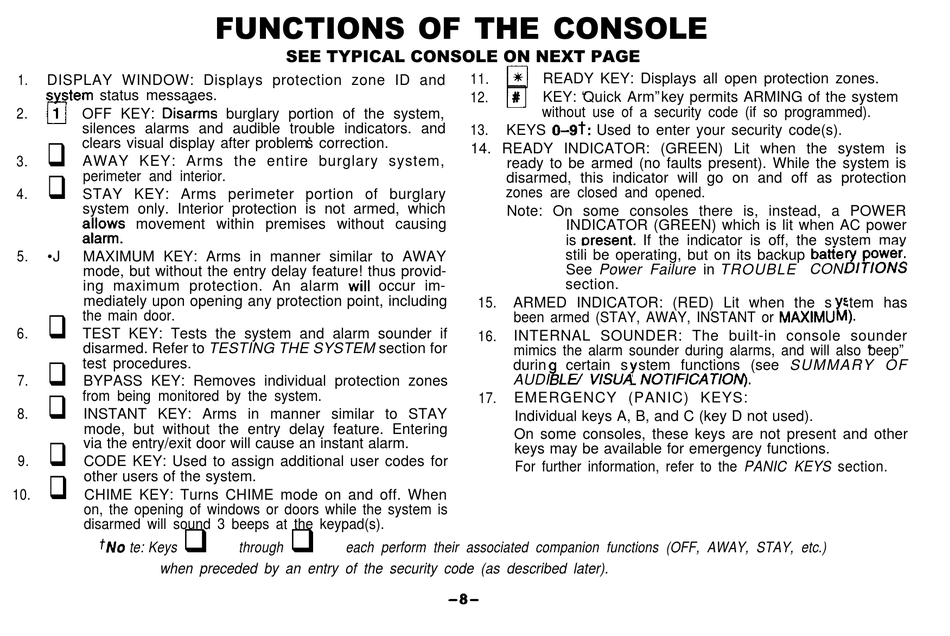

FUNCTIONS OF THE CONSOLE

SEE TYPICAL CONSOLE ON NEXT PAGE
burglary portion of the system,
occur im-
q
through each perform their associated companion functions (OFF, AWAY, STAY, etc.)
11. READY KEY: Displays all open protection zones.
# KEY: " Q uick Arm" key permits ARMING of the system
12.
without use of a security code (if so programmed).
13. KEYS Used to enter your security code(s).
14. READY INDICATOR: (GREEN) Lit when the system is
ready to be armed (no faults present). While the system is
disarmed, this indicator will go on and off as protection
zones are closed and opened.
Note: On some consoles there is, instead, a POWER
INDICATOR (GREEN) which is lit when AC power
is If the indicator is off, the svstem mav
stili be operating, but on its backup
See Power Failure in TROUBLE CON
section.
ARMED INDICATOR: (RED) Lit when the s stem has
15.
been armed (STAY, AWAY, INSTANT or
INTERNAL SOUNDER: The built-in console sounder
16.
mimics the alarm sounder during alarms, and will also " b eep"
durin certain s stem functions (see SUMMARY OF
AUDI
17. EMERGENCY (PANIC) KEYS:
Individual keys A, B, and C (key D not used).
On some consoles, these keys are not present and other
keys may be available for emergency functions.
For further information, refer to the PANIC KEYS section.
