The HP R110 is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED
802.11a/b/g/n product. The HP R120 is a Wi-Fi Alliance
authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi
CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
This Quickstart shows you how to install and get started using the HP R110 802.11n Wireless VPN Router and HP R120 802.11ac Wireless VPN Router, hereafter
referred to as the HP R110 and HP R120. (See Products list on page 6 for part numbers.)
The latest documentation, including the HP R100-Series Wireless VPN Routers Configuration/Administration Guide, is available at www.hp.com/support/manuals.
The HP R100-Series routers are all-in-one networking devices incorporating an IPv6-capable router, gigabit LAN switch, 802.11 wireless access point, SPI firewall
and VPN encryption technology. The HP R110 provides a single radio dual band 802.11n access point and aggregate VPN capacity of 30 Mbps. The HP R120
provides a dual-radio 802.11ac access point and aggregate VPN performance of up to 200 Mbps.
Hardware overview

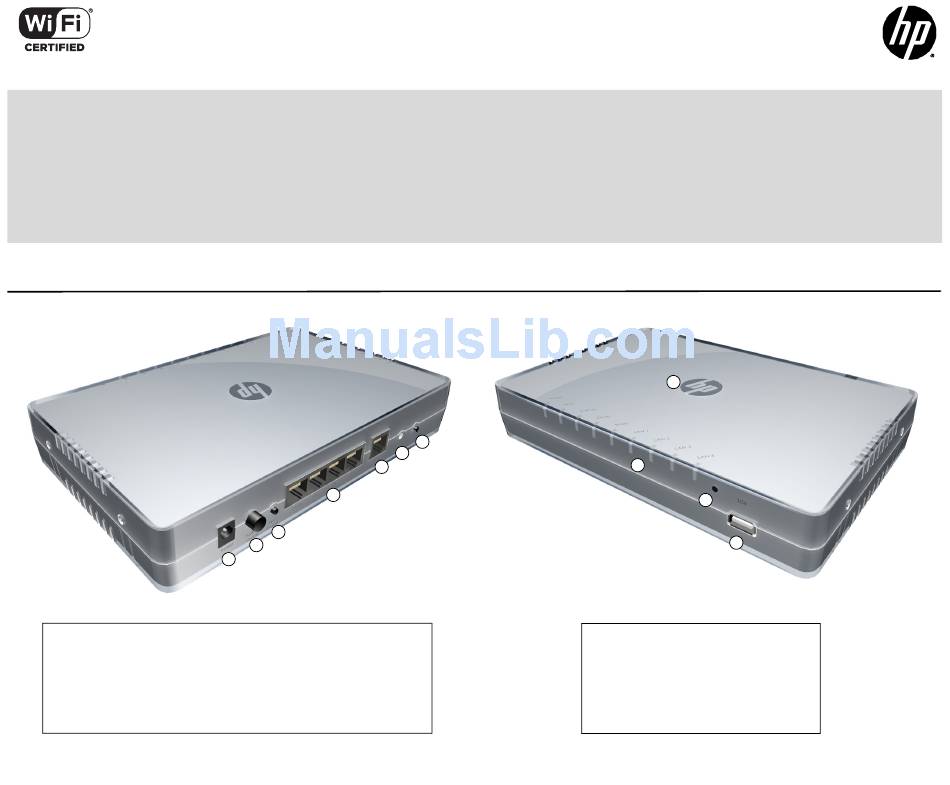

Rear view
1: Power jack
2: Power On/Off button
3: Wi-Fi On/Off button
4: LAN ports 1-4
HP R100-Series Wireless VPN Routers Quickstart
6
5
4
3
2
1
5: WAN port
6: Reset button
7: WPS button
7
Front view
8: Power LED
9: System and port status LEDs
10: USB port LED
11: USB 2.0 port
8
9
10
11
Advertisement
Table of Contents
Related Manuals for HP R100-Series
Summary of Contents for HP R100-Series
-
Page 1: Hardware Overview
HP R100-Series Wireless VPN Routers Quickstart This Quickstart shows you how to install and get started using the HP R110 802.11n Wireless VPN Router and HP R120 802.11ac Wireless VPN Router, hereafter referred to as the HP R110 and HP R120. (See Products list on page 6 for part numbers.) The latest documentation, including the HP R100-Series Wireless VPN Routers Configuration/Administration Guide, is available at www.hp.com/support/manuals. - Page 2 HP R110 does not support concurrent operation at 2.4 GHz and 5 GHz. remains flashing until the hacker attack The HP R120 provides dual radios (2.4 GHz and 5 GHz) with three antennas per ends. radio supporting 3x3 MIMO three-spatial-stream 802.11n and 802.11ac. The •...
-
Page 3: Installation
The HP R110/R120 is powered by an HP AC/DC Power Adapter. There are two slots on the bottom of the HP R110/R120 that can be used for Caution: Only use the AC/DC power adapter that is supplied with the HP wall mounting. -
Page 4: Initial Configuration
The HP R110/R120 is managed through its web-based management interface using Microsoft Internet Explorer 8 or later, Google Chrome v29 or later, or The HP R110/R120 can also be installed on a desktop using the rubber feet. Mozilla Firefox v24 or later. - Page 5 • Select the 2.4 GHz or 5 GHz radio band for your wireless network. (The HP R120 has separate settings for the 2.4 GHz and 5 GHz bands.) • Set the radio operating mode. Select a compatibility mode if support for older 802.11a/b/g devices is required, otherwise HP recommends...
-
Page 6: Technical Support
E. Test the wireless connection Compliance-EnterpriseProducts. For the purposes of this example, the HP R110/R120 has its DHCP server For products available in the USA/Canada market, 2.4 GHz operation is limited to enabled (the default setting) and the cable modem is on and operating normally. -
Page 7: Specifications
HP R100-Series Wireless VPN Routers Quickstart Regulatory information Important Note: IC Radiation Exposure Statement:This equipment complies with IC Specifications RSS-102 radiation exposure limits set forth for an uncontrolled environment. This Specification Description equipment should be installed and operated with minimum distance of 20 cm between the antenna and the user. -
Page 8: Electrical Characteristics
HP R100-Series Wireless VPN Routers Quickstart Regulatory information Specification Description Weight HP R110: 452 g (1.0 lb) HP R120: 574 g (1.27 Ib) Operating temperature 5°C to 40°C Non-operating/storage -40°C to 70°C temperature Operating/non-operating 5% to 95%, noncondensing relative humidity...
