HP MSR930 Quickspecs

Hp msr93x series. wireless router; 3g router; dual 3g router; 4g lte/3g cdma router.
Hide thumbs

Advertisement

QuickSpecs
Overview
Models

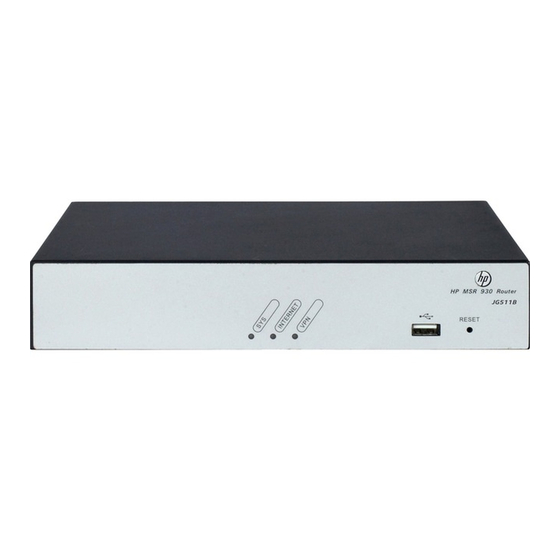

HP MSR930 Router
HP MSR930 Wireless Router
HP MSR935 Wireless Router
HP MSR930 3G Router
HP MSR931 Router
HP MSR931 3G Router
HP MSR931 Dual 3G Router
HP MSR930 4G LTE/3G CDMA Router
HP MSR933 Router
HP MSR933 3G Router
HP MSR935 Router
HP MSR935 3G Router
HP MSR936 Wireless Router
HP MSR930 4G LTE/3G WCDMA Global Router
Converged high-performance routing, switching, security, SIP, and 300 Kpps performance
Integrated GbE WAN and LAN, ADSL2+, G.SHDSL and optional serial port
Integrated 4G LTE and 3G/dual 3G WWAN; IEEE 802.11b/g/n WLAN
Embedded encryption, firewall, NAT, DVPN, GDVPN, security features
Unified OS, zero-touch solution, and single-pane-of-glass management
The HP MSR93x Series is a high-performance small-branch router that delivers integrated routing, switching, security, SIP, embedded
IEEE 802.11b/g/n WLAN connectivity, integrated 4G LTE and 3G, serial port, ADSL2+ (Annex A/M, Annext B/J, ADSL2+ over POTS,
ADSL2+ over ISDN), 4-pair G.SHDSL, and optional dual 3G WAN in a single box.
These solutions deliver up to 300 Kpps forwarding with comprehensive IPv4 and IPv6 routing, MPLS, QoS, firewall, NAT, VPN, switching,
voice, and wireless capabilities in a compact, fixed, form factor. Additionally, the MSR93x Series is based on open standards for
seamless integration within small-branch deployments.
Quality of Service (QoS)
Traffic policing
supports Committed Access Rate (CAR) and line rate
Congestion management
supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
Weighted random early detection (WRED)/random early detection (RED)
delivers congestion avoidance capabilities through the use of queue management algorithms
Other QoS technologies
DA - 14559 Worldwide — Version 2 — September 30, 2013
HP MSR93x Series
JG511A
JG512A
JG519A
JG513A
JG514A
JG515A
JG531A
JG596A
JG516A
JG517A
JG518A
JG520A
JG597A
JG665A
Page 1

Advertisement

   Also See for HP MSR930

   Related Manuals for HP MSR930

   Summary of Contents for HP MSR930

  • Page 1: Key Features, Product Overview, Features And Benefits

    Unified OS, zero-touch solution, and single-pane-of-glass management Product overview The HP MSR93x Series is a high-performance small-branch router that delivers integrated routing, switching, security, SIP, embedded IEEE 802.11b/g/n WLAN connectivity, integrated 4G LTE and 3G, serial port, ADSL2+ (Annex A/M, Annext B/J, ADSL2+ over POTS, ADSL2+ over ISDN), 4-pair G.SHDSL, and optional dual 3G WAN in a single box.

  • Page 2

    3G antenna; additional 3G antennas available 3G and 4G LTE access supports popular 3G and 4G LTE USB modems; for a list of supported products, contact your local HP representative Multiple Gigabit Ethernet connection options provides GbE WAN and GbE LAN ports onboard DA - 14559 Worldwide —...

  • Page 3

    QuickSpecs HP MSR93x Series Overview 4G LTE Verizon and global carrier support delivers embedded 4G LTE wireless WAN backhaul connectivity with two different carrier chipset options Multiple advanced WAN interfaces provides traditional connection options including serial, ADSL2+ (Annex A/M, Annex B/J, over POTS or ISDN), 4-pair G.SHDSL and WAN Gigabit Ethernet ports;...

  • Page 4

    QuickSpecs HP MSR93x Series Overview subnets Built-in applications support Device management controller (DMC) acts as the gateway of a virtual "network training room" Wisdom Network (WiNet) technology helps manage a large number of scattered network devices centrally Remote terminal connection (RTC) and true type terminal (TTY) access allows the connection of a terminal to a router...

  • Page 5

    QuickSpecs HP MSR93x Series Overview Access control list (ACL) supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent unauthorized users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header;...

  • Page 6

    Electronic and telephone support (for Warranty 2.0) limited electronic and 24x7 telephone support is available from HP for the entire warranty period; to reach our support centers, refer to: www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to: www.hp.com/networking/warrantysummary...

  • Page 7

    HP MSR930 Router JG511A 1 RJ-45 autosensing 10/100/1000 WAN port See Configuration 4 RJ-45 autosensing 10/100/1000 LAN ports Note:5, 9 HP MSR930 Wireless Router JG512A 1 RJ-45 autosensing 10/100/1000 WAN port See Configuration 4 RJ-45 autosensing 10/100/1000 LAN ports Note:2, 3 Wireless - 802.11 b/g/n...

  • Page 8

    C15 PDU ROW JG516A #B2C C15 to C14 Jumper Cord (ROW) 220 NA JG516A#B2E NEMA L6-20P Cord HP MSR933 3G Router JG517A 1 RJ-45 autosensing 10/100/1000 WAN port See Configuration 4 RJ-45 autosensing 10/100/1000 LAN ports Note:2, 3 1 8-wire G.SHDSL port...

  • Page 9

    Note:5, 4, 9 1 Serial port (min=0 \ max=1 Serial Port Cable) Included 3G antennas: 2 Maximum 3G antennas: 4 HP MSR930 4G LTE/3G CDMA Router JG596A 1 RJ-45 autosensing 10/100/1000 WAN port See Configuration 4 RJ-45 autosensing 10/100/1000 LAN ports...

  • Page 10

    #B2E is Offered only in AMS, Taiwan, and Japan. Note 4 The following Cables install into this Router: JD519A - HP X200 V.24 DTE 3m Serial Port Cable JD521A - HP X200 V.24 DCE 3m Serial Port Cable JD523A - HP X200 V.35 DTE 3m Serial Port Cable JD525A - HP X200 V.35 DCE 3m Serial Port Cable...

  • Page 11

    This Antenna is supported on the following Routers: JG596A - HP MSR930 4G LTE/3G CDMA Router JG665A - HP MSR930 4G LTE/3G WCDMA Global Router Antenna Cables System (std 0 // max 1) User Selection (min 0 // max 1) per Antenna (Supported on JG521A and JG669A) HP MSR 3G RF 2.8m Antenna Cable...

  • Page 12

    QuickSpecs HP MSR93x Series Configuration Cables HP X200 V.24 DTE 3m Serial Port Cable JD519A HP X200 V.24 DCE 3m Serial Port Cable JD521A HP X200 V.35 DTE 3m Serial Port Cable JD523A HP X200 V.35 DCE 3m Serial Port Cable JD525A HP X200 X.21 DTE 3m Serial Port Cable...

  • Page 13: Technical Specifications

    QuickSpecs HP MSR93x Series Technical Specifications HP MSR930 Router (JG511A) Ports 1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports Physical characteristics Dimensions 9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm) Weight 3.97 lb (1.8 kg)

  • Page 14

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8L83E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8L84E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 15

    Maximum antennas: 2 Optional antenna cable also available for remote location 3G firmware changes through CLI For regional carrier certifications please contact your local HP sales representative Services 3-year, parts only, global next-day advance exchange (U8L62E) 3-year, 4-hour onsite, 13x5 coverage for hardware (U8L66E)

  • Page 16

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8L83E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8L84E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 17

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8M21E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8M22E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 18

    QuickSpecs HP MSR93x Series Technical Specifications HP sales office. HP MSR931 3G Router (JG515A) Ports 1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports 1 Serial port Physical characteristics Dimensions 11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm) Weight 5.95 lb (2.7 kg)

  • Page 19

    Technical Specifications Optional antenna cable also available for remote location 3G firmware changes through CLI For regional carrier certifications please contact your local HP sales representative Services 3-year, parts only, global next-day advance exchange (U8M00E) 3-year, 4-hour onsite, 13x5 coverage for hardware (U8M04E)

  • Page 20

    Maximum antennas: 4 Optional antenna cable also available for remote location 3G firmware changes through CLI For regional carrier certifications please contact your local HP sales representative Services 3-year, parts only, global next-day advance exchange (U8M00E) 3-year, 4-hour onsite, 13x5 coverage for hardware (U8M04E)

  • Page 21

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8M21E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8M22E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 22

    QuickSpecs HP MSR93x Series Technical Specifications Nonoperating/Storage 5% to 90%, noncondensing relative humidity Shock and vibration Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms Altitude up to 6,561 ft (2 km) Electrical characteristics Maximum heat 20 BTU/hr (21.1 kJ/hr) dissipation Voltage 100-240 VAC...

  • Page 23

    For details about services and response times in your area, please contact your local HP sales office. HP MSR930 4G LTE/3G CDMA Router (JG596A) Ports 1 RJ-45 autosensing 10/100/1000 WAN port...

  • Page 24

    • Default Antennas: 2 • Maximum Antennas: 2 • Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR 3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A) • Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported.

  • Page 25

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8L83E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8L84E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 26

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8L83E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8L84E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 27

    Maximum antennas: 2 Optional antenna cable also available for remote location 3G firmware changes through CLI For regional carrier certifications please contact your local HP sales representative DA - 14559 Worldwide — Version 2 — September 30, 2013 Page 27...

  • Page 28

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8L83E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8L84E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 29

    Optional antenna cable also available for remote location 3G firmware changes through CLI For regional carrier certifications please contact your local HP sales representative Services 3-year, 4-hour onsite, 13x5 coverage for hardware (U0XY5E) 3-year, 4-hour onsite, 24x7 coverage for hardware (U0XY7E)

  • Page 30

    5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U0YB6E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 31

    QuickSpecs HP MSR93x Series Technical Specifications dissipation Voltage 100-240 VAC Maximum power rating 24 W Notes Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

  • Page 32

    5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U0YB6E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 33

    5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U0YB6E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 34

    Maximum antennas: 4 Optional antenna cable also available for remote location 3G firmware changes through CLI For regional carrier certifications please contact your local HP sales representative Services 3-year, 4-hour onsite, 13x5 coverage for hardware (U0YE2E) 3-year, 4-hour onsite, 24x7 coverage for hardware (U0YE4E)

  • Page 35

    5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U0YH3E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 36

    • Default Antennas: 2 • Maximum Antennas: 2 • Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR 3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A) • Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported.

  • Page 37

    5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (U8L83E) 5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (U8L84E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 38

    QuickSpecs HP MSR93x Series Technical Specifications IEEE 802.1Q VLANs IEEE 802.1s (MSTP) IEEE 802.1s Multiple Spanning Trees IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.1X: Authenticated VLAN (multiple MAC, multiple VLANs per port) IEEE 802.2:Logical Link Control IEEE 802.3: Carrier Sense Multiple Access with Collision Detection (CSMA/CD) access method and physical layer specifications IEEE 802.3ad Link Aggregation (LAG)

  • Page 39

    QuickSpecs HP MSR93x Series Technical Specifications RFC 1519 CIDR RFC 1534 DHCP/BOOTP Interoperation RFC 1542 Clarifications and Extensions for the Bootstrap Protocol RFC 1552 The PPP Internetworking Packet Exchange Control Protocol (IPXCP) RFC 1577 Classical IP and ARP over ATM RFC 1613 Cisco Systems X.25 over TCP (XOT)

  • Page 40

    QuickSpecs HP MSR93x Series Technical Specifications RFC 2694 DNS extensions to Network Address Translators (DNS_ALG) RFC 2747 RSVP Cryptographic Authentication RFC 2763 Dynamic Name-to-System ID mapping support RFC 2765 Stateless IP/ICMP Translation Algorithm (SIIT) RFC 2766 Network Address Translation - Protocol Translation (NAT-PT)

  • Page 41

    QuickSpecs HP MSR93x Series Technical Specifications FRF.19: Frame Relay Operations, Administration and Maintenance Implementation FRF.2.1: Frame Relay Network-to-Network (NNI) Implementation Agreement Version 2.1 FRF.20 Frame Relay IP Header Compression Implementation Agreement - June 2001 FRF.3.2 Frame Relay Multiprotocol Encapsulation Implementation Agreement - April 2000 FRF.4.1: SVC User-to-Network Interface (UNI) Implementation Agreement...

  • Page 42

    QuickSpecs HP MSR93x Series Technical Specifications RFC 3596 DNS Extension for IPv6 MIBs RFC 1213 MIB II RFC 1229 Interface MIB Extensions RFC 1286 Bridge MIB RFC 1493 Bridge MIB RFC 1573 SNMP MIB II RFC 1724 RIPv2 MIB RFC 1757 Remote Network Monitoring MIB...

  • Page 43

    QuickSpecs HP MSR93x Series Technical Specifications RFC 2716 PPP EAP TLS Authentication Protocol RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting RFC 2403 - HMAC-MD5-96 RFC 2404 - HMAC-SHA1-96 RFC 2405 - DES-CBC Cipher algorithm RFC 2796 BGP Route Reflection - An Alternative to Full Mesh IBGP...

  • Page 44

    © Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
