KitchenAid KORU06RSSS00 Parts List

KitchenAid KORU06RSSS00 Parts List

Kitchenaid appliances refrigerator part list
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
2319106 Energy Guide
2311008 Use & Care Guide
2311029 Service & Wiring
Sheet
2
2311018 Baseplate
Assembly
3
2311062 Shield, Heater (2)
5
2311019 Cover, Unit
Compartment
7
2311016 Hinge Asm, Bottom
01−07 Litho In U.S.A. (mat)

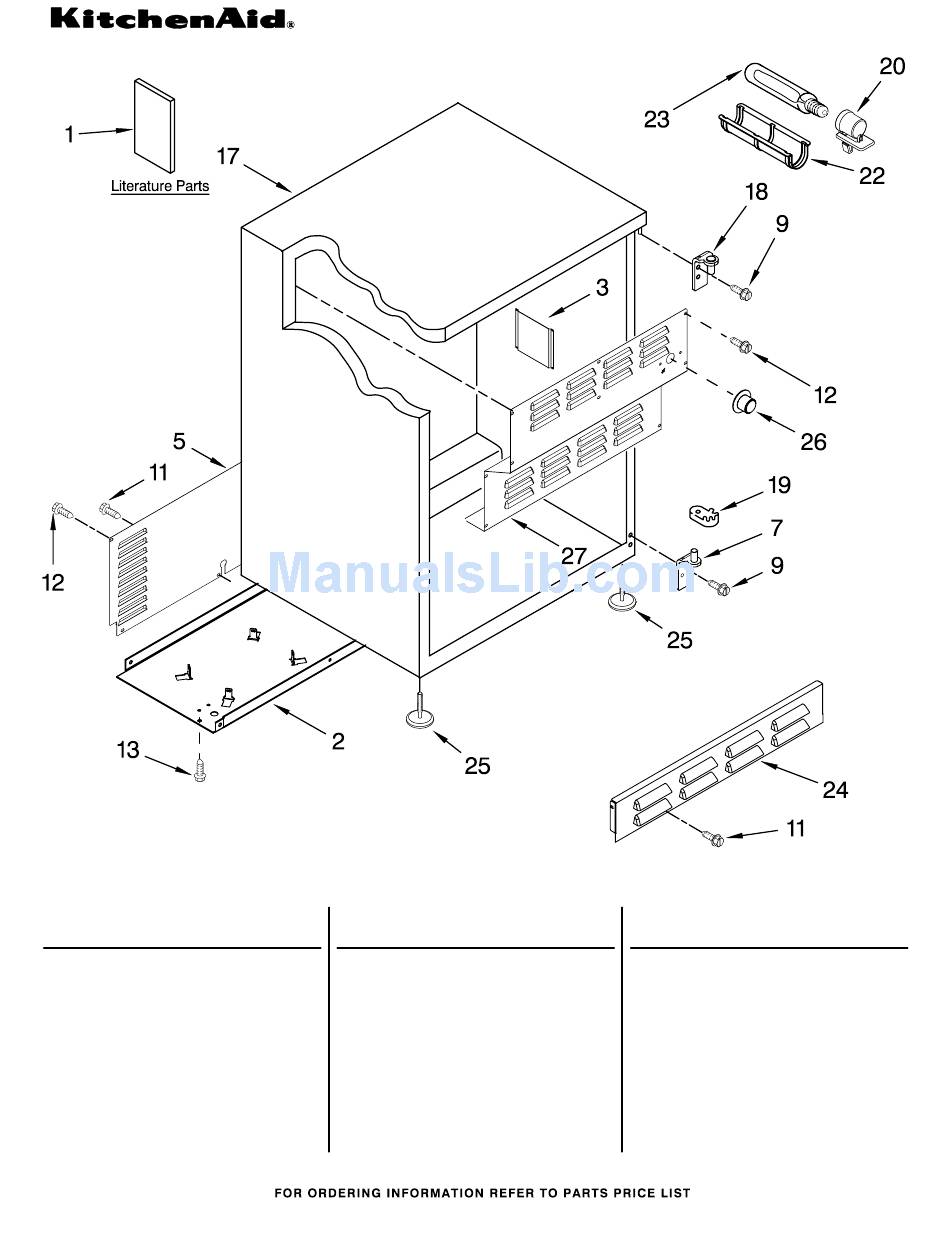

CABINET PARTS
For Model: KORU06RSSS00
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
9
489282 Screw
11
3192294 Screw
12
8533833 Screw (5)
13
8534097 Screw (4)
17
Cabinet
(Not A
Serviceable Part)
18
2311015 Hinge Asm, Top
1
REFRIGERATOR
Illus.
Part
No.
No.
DESCRIPTION
19
2155311 Closer, Door
20
2223857 Light Socket
22
2311017 Cover, Light
23
547225 Light Bulb
24
2311053 Panel, Unit
25
2303615 Leveling Pad (4)
26
2303721 Knob, Thermostat
27
2311054 Panel, Evaporator
Part No. W10118282 Rev. A
