sunjoe SWJ701E Operator's Manual

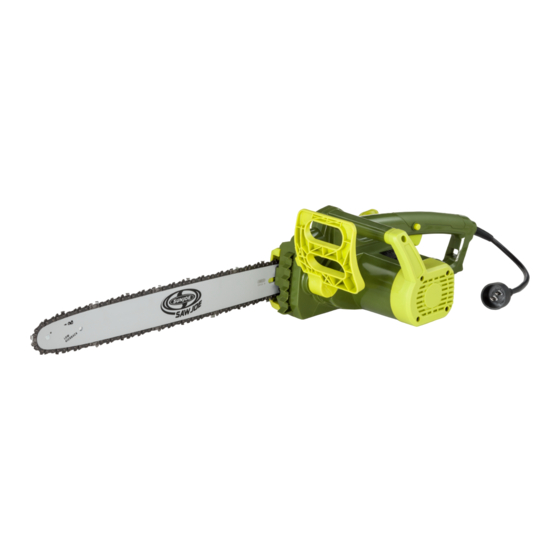

18-in electric chain saw
Hide thumbs Also See for SWJ701E:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual

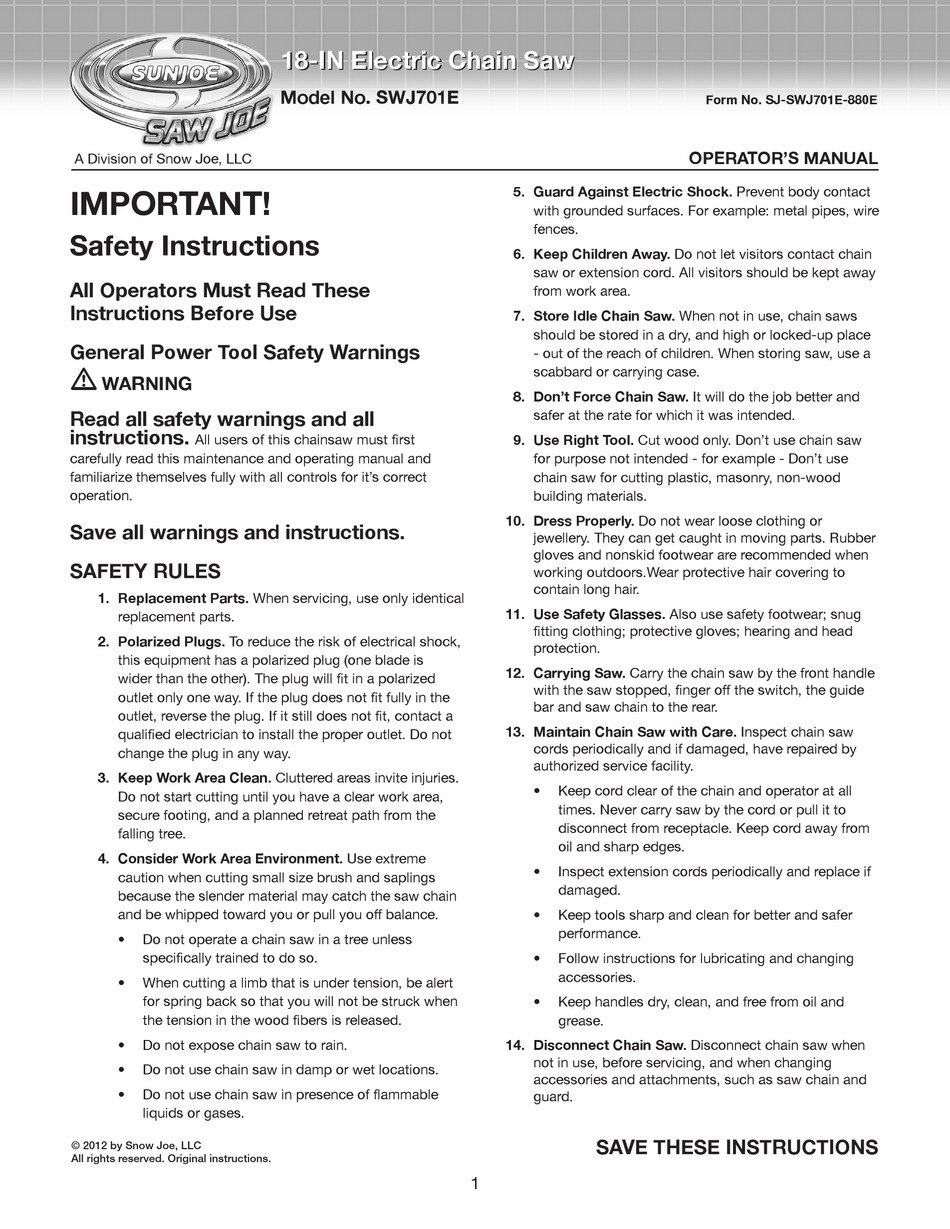

A Division of Snow Joe, LLC
IMPORTANT!

Safety Instructions

All Operators Must Read These
Instructions Before Use

General Power Tool Safety Warnings

m
WARNING
Read all safety warnings and all
instructions.
All users of this chainsaw must first
carefully read this maintenance and operating manual and
familiarize themselves fully with all controls for it's correct
operation.
Save all warnings and instructions.

SAFETY RULES

1. Replacement Parts. When servicing, use only identical
replacement parts.
2. Polarized Plugs. To reduce the risk of electrical shock,
this equipment has a polarized plug (one blade is
wider than the other). The plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper outlet. Do not
change the plug in any way.
3. Keep Work Area Clean. Cluttered areas invite injuries.
Do not start cutting until you have a clear work area,
secure footing, and a planned retreat path from the
falling tree.
4. Consider Work Area Environment. Use extreme
caution when cutting small size brush and saplings
because the slender material may catch the saw chain
and be whipped toward you or pull you off balance.
•
Do not operate a chain saw in a tree unless
specifically trained to do so.
•
When cutting a limb that is under tension, be alert
for spring back so that you will not be struck when
the tension in the wood fibers is released.
•
Do not expose chain saw to rain.
•
Do not use chain saw in damp or wet locations.
•
Do not use chain saw in presence of flammable
liquids or gases.
© 2012 by Snow Joe, LLC
All rights reserved. Original instructions.
18-IN Electric Chain Saw
18-IN Electric Chain Saw
Model No. SWJ701E
5. Guard Against Electric Shock. Prevent body contact
with grounded surfaces. For example: metal pipes, wire
fences.
6. Keep Children Away. Do not let visitors contact chain
saw or extension cord. All visitors should be kept away
from work area.
7. Store Idle Chain Saw. When not in use, chain saws
should be stored in a dry, and high or locked-up place
- out of the reach of children. When storing saw, use a
scabbard or carrying case.
8. Don't Force Chain Saw. It will do the job better and
safer at the rate for which it was intended.
9. Use Right Tool. Cut wood only. Don't use chain saw
for purpose not intended - for example - Don't use
chain saw for cutting plastic, masonry, non-wood
building materials.
10. Dress Properly. Do not wear loose clothing or
jewellery. They can get caught in moving parts. Rubber
gloves and nonskid footwear are recommended when
working outdoors.Wear protective hair covering to
contain long hair.
11. Use Safety Glasses. Also use safety footwear; snug
fitting clothing; protective gloves; hearing and head
protection.
12. Carrying Saw. Carry the chain saw by the front handle
with the saw stopped, finger off the switch, the guide
bar and saw chain to the rear.
13. Maintain Chain Saw with Care. Inspect chain saw
cords periodically and if damaged, have repaired by
authorized service facility.
•
Keep cord clear of the chain and operator at all
times. Never carry saw by the cord or pull it to
disconnect from receptacle. Keep cord away from
oil and sharp edges.
•
Inspect extension cords periodically and replace if
damaged.
•
Keep tools sharp and clean for better and safer
performance.
•
Follow instructions for lubricating and changing
accessories.
•
Keep handles dry, clean, and free from oil and
grease.
14. Disconnect Chain Saw. Disconnect chain saw when
not in use, before servicing, and when changing
accessories and attachments, such as saw chain and
guard.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-SWJ701E-880E
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWJ701E and is the answer not in the manual?

Questions and answers

Related Manuals for sunjoe SWJ701E

Summary of Contents for sunjoe SWJ701E

  • Page 1: Safety Instructions

    18-IN Electric Chain Saw 18-IN Electric Chain Saw Model No. SWJ701E Form No. SJ-SWJ701E-880E OPERATOR’S MANUAL A Division of Snow Joe, LLC IMPORTANT! 5. Guard Against Electric Shock. Prevent body contact with grounded surfaces. For example: metal pipes, wire fences.
  • Page 2 15. Outdoor Use Extension Cords. Use only extension g. Only use replacement bars and chains specified by cords intended for use outdoors and so marked. the manufacturer or the equivalent. 16. Stay Alert. Watch what you are doing. Use common 19.

  • Page 3: Lubrication System

    General Safety Instructions for chain WARNING: Never use wasted oil, low quality oil, or saw user insufficient oil. This could damage the pump; the bar and the chain and may result in serious personal injury. • It is important that this tool be protected by the use of a •...

  • Page 4: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. SYMBOLS DESCRIPTIONS WARNING – To reduce the risk of injury, user must read instruction manual SAFETY ALERT –...

  • Page 5: Technical Data

    Know Your Electric Chain Saw (Fig. 3) Due to modern mass production techniques and product testing, it is unlikely that your power tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified.

  • Page 6: Switch On And Off

    Bar and Chain Assembly CAUTION: If felling a tree on a sloping ground, the chainsaw operator should keep on the uphill side of the terrain, Place the chain in the groove of the chain guide bar. as the tree is likely to roll or slide downhill after it's felled. Make sure to the correct placement and running NOTE: Direct of fall (B) is controlled by the notching cut.
  • Page 7 Use wooden or plastic wedges (A) to prevent binding Fig. 8 the bar or chain (B) in the cut (Fig. 6). Fig. 6 BUCKING Bucking is cutting a fallen log into lengths. Make sure that you have a good footing and stand uphill of the log when cutting When diameter of wood being cut is greater than the on sloping ground.

  • Page 8: Chain Sharpening

    NOTE: The best way to hold a log while bucking is to use • Ensure that the oil reservoir and the oil filter are clean. This chainsaw meets all legislation requirements; in order to a saw horse. When this is not possible, the log should avoid injures all repairs are to be done by qualified staff in be raised and supported by limb stumps or by using an authorized service centre.

  • Page 9: Troubleshooting

    Troubleshooting Problem Cause Suggested Remedy Motor does not run No electricity • Check socket, cables and plugs • Damaged cable: Have repaired by a service agent • Do not patch cables with insulation tape • Damaged switch: Have repaired by a service agent •...
  • Page 10 A Two-Year Full Warranty for residential use in the United States and Canada General Conditions: Snow Joe, LLC warrants this product to the original purchaser for two years against defects in material or workmanship when used for normal residential purposes. Snow Joe, LLC will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations, and exclusions set forth herein.
