KitchenAid KBRO36FMX02 Parts List

36" bottom mount built in refrigerator
Hide thumbs Also See for KBRO36FMX02:

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Installation Manual

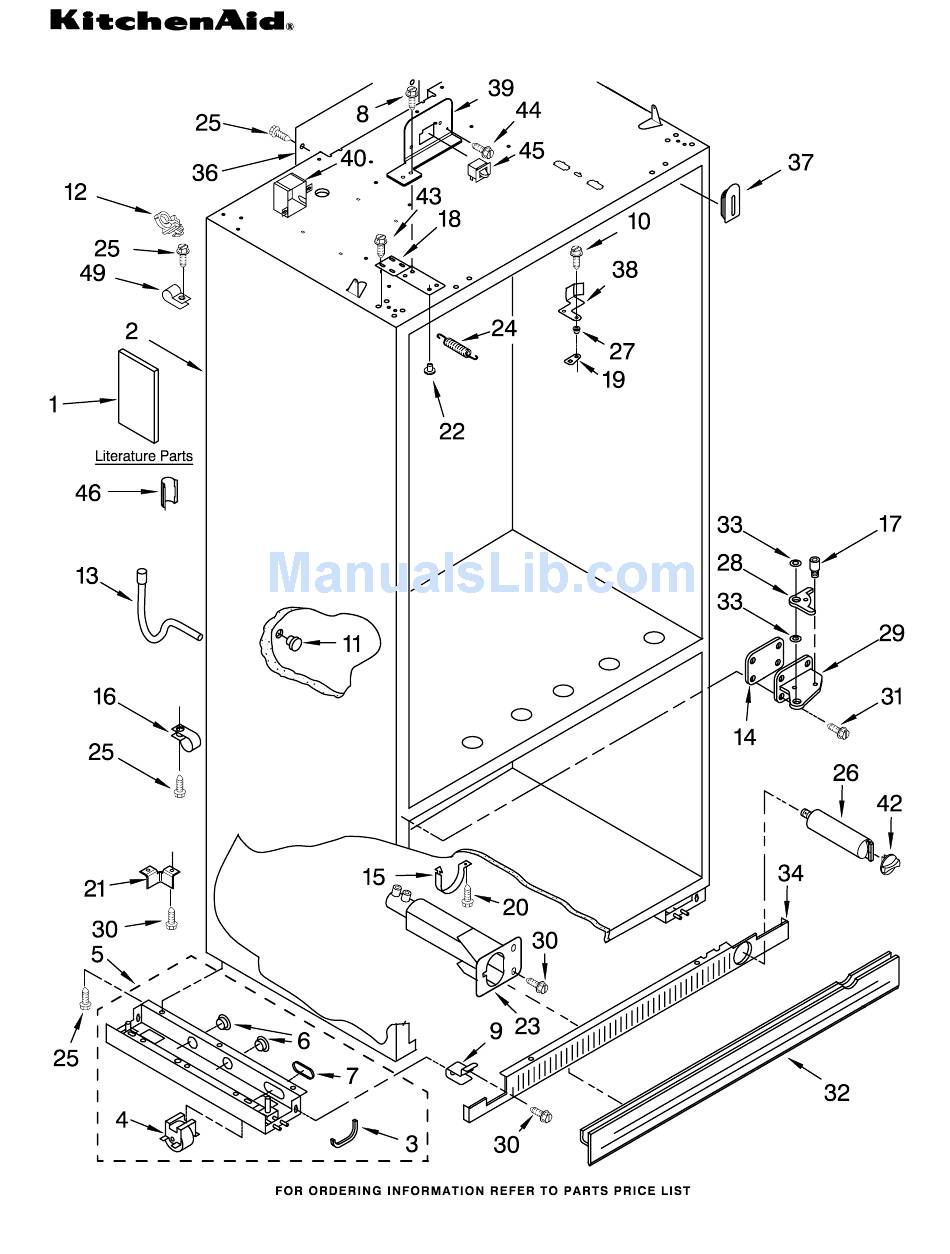

CABINET PARTS
36" BOTTOM MOUNT
BUILT IN REFRIGERATOR
For Model: KBRO36FMX02
(Etched Aluminum)
1
Part No. 8214694
11−05 Litho In U.S.A. (mek)

Advertisement

loading

Related Manuals for KitchenAid KBRO36FMX02

Summary of Contents for KitchenAid KBRO36FMX02

  • Page 1 CABINET PARTS 36" BOTTOM MOUNT BUILT IN REFRIGERATOR For Model: KBRO36FMX02 (Etched Aluminum) Part No. 8214694 11−05 Litho In U.S.A. (mek)

  • Page 2: Cabinet Parts

    1112023 Roller, Front & Rear (4) Support, Leveler Assembly 2004506 Refrigerator Side 2004505 Freezer Side 2005006 Grommet, Wiring 2005007 Grommet, Flexible CABINET PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 489399 Screw 2006442 Mounting Bracket, Grill 2005921 Screw 1112849 Cap, Grommet...
  • Page 3 CABINET AND BREAKER TRIM PARTS 8214694 For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet Trim, Right Side 2257688X Etched Aluminum 1163283 Screw 2254724 Cabinet, Trim (Bottom) 486194 Screw 2313994 Cabinet Trim, Top Breaker Trim (Not Serviced) 2005782 Cover, Hinge 2005925 Seal−Trim,Side...
  • Page 4 2256466 Back Panel 2302974 Front, Unit Cover 487415 Screw 2187423 Wire Assembly 489348 Clamp 2259437X Grille−Trim, Bottom 1161548 Nut 2259440X Grille−Trim, Top 2259420X Grille−Trim, Right Side 2003347 Screw 8−32 x 7/16 2259421X Grille−Trim, Left Side For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 5 LINER PARTS For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 6 Freezer Rear 2215844 Foam, Fan Shroud 2215910 Grommet, Flexible 2215606 Shroud, Evaporator 2169142 Blade, Fan 2259385 Motor, Fan 2223733 Retainer, Fan Motor LINER PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2221296 Air Baffle Assembly 2215503 Bracket 8201595 Wiring Channel...

  • Page 7: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 8 REFRIGERATOR SHELF PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION Slide, Freezer Basket 2307978 Right Side 2307977 Left Side 2006475 Screw, 8−15 x 1.00 Spacer, Crisper 2256443 Right Side 2256442 Left Side 2179404 Rack, Wine 2221071 Egg Bin Bracket, Freezer...
  • Page 9 FREEZER DOOR AND BASKET PARTS For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 10 FREEZER DOOR AND BASKET PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2300085 Freezer Door Panel (Includes Item 9) 2204525 Divider, Basket 2207429 Clamp, Divider 2207415 Nut, Crimp 3190699 Screw 2258903 Trim−Door, Corner 2258901X Trim−Door, Side 2258902X Trim−Door, Top & Bottom...

  • Page 11: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 12 REFRIGERATOR DOOR PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2300083 Refrigerator Door (Includes Item 9) 2259362X Cover−Screw, Handle Side 2266912 Hinge Assembly, 2256381 Spacer−Hinge, 489282 Screw, 10−32 x 3/4 2302927 Hinge Assembly, Bottom 2258908X Trim−Door, Handle Side 2257692X Trim−Door, Hinge...
  • Page 13 UPPER UNIT PARTS For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 14 2302973 Shroud, Condenser (Left) 2307028 Control Board 2203075 Spacer (5) 2256328 Bracket, Inverter 1157158 Screw 2259307 Condenser 943447 Grommet (4) UPPER UNIT PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2187629 Wire, Jumper 2155774 Wire Tie 2252363 Drier 487522 Screw...
  • Page 15 LOWER UNIT AND TUBE PARTS For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 16 LOWER UNIT AND TUBE PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2313922 Tube, Transition (Condenser) 2259304 Tube, Transition (Drier/Restrictor) 486194 Screw 2259303 Suction Tube 2207486 Heater, Defrost (Rear) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan...

  • Page 17: Icemaker Parts

    ICEMAKER PARTS For Model: KBRO36FMX02 (Etched Aluminum) 8214694...
  • Page 18 ICEMAKER PARTS For Model: KBRO36FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2204597 Tube, Valve 2221240 Heater, Fill Tube 489115 Fastener, Snap−In 2300104 Cover, Bottom Electrical 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2317093 Water Inlet Tube Assembly 1106508 Seal Gasket 2302719 Tube, Filter...
