Service-Instruction
VENTILATION SYSTEMS
L 100
L 200
L 300
LS 300
L 500
R 500
© Dometic GmbH · 2005 · Subject to change without notice
for CARAVAN and MOTORHOME
for Single Door Refrigerators
for Double Door Refrigerators
for Roof mounting
Publikations-Nr.:
599 5218-07 EN
OTHERS
4690
T.B. KV 01/2008
English
Advertisement
Table of Contents
Related Manuals for Dometic L 100
Summary of Contents for Dometic L 100
- Page 1 Single Door Refrigerators L 200 L 300 LS 300 for Double Door Refrigerators L 500 for Roof mounting R 500 Publikations-Nr.: T.B. KV 01/2008 599 5218-07 EN English © Dometic GmbH · 2005 · Subject to change without notice...
-
Page 2: Table Of Contents
L 100 ........ -
Page 3: L100
(manufactured since October 2002) Air vent grid, cpl., above, 479mm x 185, 2mm (consists of air vent grid, boss and locking screw) with Dometic Logo, with mosquito-net: 241 2864-31/2, colour beige RU 1020 241 2864-32/0, colour white 20/3306 241 2864-33/8, colour grey RAL 7001... -
Page 4: Air Vent Grid Above
Air vent grid, above, 479mm x 185, 2mm (consists of air vent grid and locking screw) with Dometic Logo, with mosquito-net: 241 2857-30/8, colour beige RU 1020 241 2857-31/6, colour white 20/3306 241 2857-32/4, colour grey RAL 7001 241 2857-33/2, colour Fiat Bianco 210... -
Page 5: Frame Above
Frame, above, 475mm x 180mm without seal 295 1771-20/9, colour nature 295 1771-27/4, colour black-grey RAL 7021 295 1771-50/6, colour grey RAL 7015 with seal 241 2755-10/6, colour nature Boss for air vent grid, 70mm x 147,2mm 295 1767-00/9, colour beige RU 1020 295 1767-01/7, colour white 20/3304 295 1767-02/5, colour grey RAL 7001 295 1767-03/3, colour Fiat Bianco 210... -
Page 6: L200
(manufactured since October 2002) Air vent grid, bottom, 479mm x 185, 2mm (consists of air vent grid and locking screw) with Dometic Logo, with mosquito-net: 241 2858-30/6, colour beige RU 1020 241 2858-31/4, colour white 20/3306 241 2858-32/2, colour grey RAL 7001... -
Page 7: Frame Bottom
Frame, bottom, 475mm x 180mm without seal 295 1771-30/8, colour nature 295 1771-37/3, colour black-grey RAL 7021 295 1771-40/7, colour grey RAL 7015 with seal 241 2755-00/7, colour nature Locking screw see item 1.6... -
Page 8: L300
(manufactured since June 2005) Air vent grid, 518mm x 277mm (consists of air vent grid and two locking screws) with Dometic Logo, with mosquito-net: 241 3207-57/8, colour beige NCS S0505-Y20R 241 3207-58/6, colour white NCS S0500-N 241 3207-59/4, colour Fiat Bianco 210... -
Page 9: Ls300
(manufactured since October 2007) Air vent grid, 518mm x 277mm (consists of air vent grid and two locking sliders) with Dometic Logo, with mosquito-net: 241 3207-87/5, colour beige NCS S0505-Y20R 241 3207-88/3, colour white NCS S0500-N 241 3207-89/1, colour Fiat Bianco 210... -

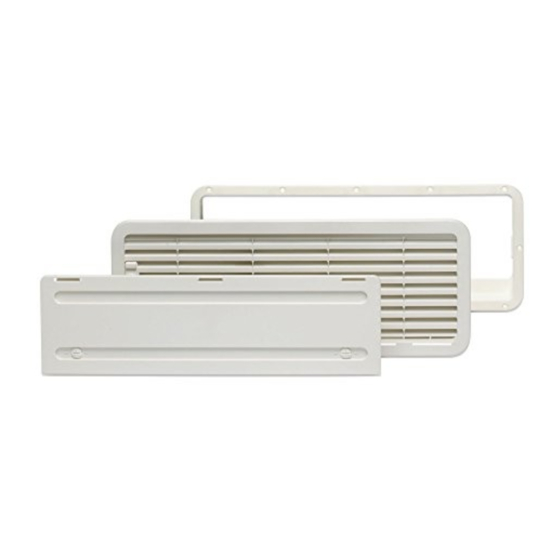

Page 10: Insert For Winter Operation
Insert for winter operation EW300, 518 mm x 277 mm (consists of insert and two locking screws, accessories) This inset can be used instead of the lower ventilation grid, if the outdoor temperature is lower than 0°C. EWS300, 518 mm x 277 mm (consists of insert and two locking sliders, accessories) This inset can be used instead of the lower ventilation grid, if the outdoor temperature is lower than 0°C. -
Page 11: Air Vent Grid
L500 Air vent grid, 479mm x 371, 2mm (consists of air vent grid and two locking screws) with Dometic Logo, with mosquito-net: 293 3076-57/8, colour beige RU 1020 293 3076-58/6, colour white 20/3304 293 3076-59/4, colour Fiat Bianco 210 293 3076-60/2, colour light grey NCS 3000... -
Page 12: Cover
R500 Cover, 598mm x 190mm 293 3174-01/9, colour white Frame, 550mm x 125mm 293 3175-01/6, colour white Seal, 535mm x 125mm 293 3177-01/2, colour white Screws 385 8049-01/2, stainless, 5x 45... -
Page 13: Installation Guide
INSTALLATION GUIDE L100/L200 Fig. 1 Fig. 2 Fig. 3 Installation steps 1. Cut out a rectangle (width 451mm, height 156mm) in the external wall and install the frame (1) with screws. 2. Push the exhaust pipe with cover (2) through the opening in the frame and connect it to the exhaust system of the refrigerator. -
Page 14: L300/L500
L300/L500 Fig. 1 L500 Condenser Stopper strip with profiled joint Ventilation height 10-20mm L500 Fig. 2 Installation steps 1. Cut out a rectangle (L300:width 490mm, height 249mm, L500:width 451mm, height 341mm) in the external wall and install the frame (1) with screws. 2. - Page 15 LS300 Fig. 1 LS 300 Condenser Stopper strip with profiled joint Ventilation height 10-20mm LS 300 Fig. 2 Installation steps 1. Cut out a rectangle (L300:width 490mm, height 249mm, L500:width 451mm, height 341mm) in the external wall and install the frame (1) with screws. 2.
- Page 16 R500 Fig. 1 Fig. 2 Installation steps 1. Cut out a rectangle (width 87mm, length 507mm) in the vehicle roof, seal the frame and install it with screws. 2. Position the cover into the frame and fasten it with the screws.
-
Page 17: Ventilation Kit
VENTILATION KIT (Part Nummer: 241 2985-00) CONTENTS Reinforcing plate with doublesided adhesive tape Metal holder for ventilator 12V-DC-ventilator Bimetal-switch with connection cable Mount ventilator with holder and two screws between condenser and absorb- tion unit. (Use reinforcing plate at appli- ances with no metal rear!) . -
Page 18: Bulletin
COOLING Caravan Refrigerators 3110 SERVICE BULLETIN Dometic GmbH, In der Steinwiese 16, D-57074 Siegen Differentiation of the ventilation systems A1609 Characteristics: - The logo “Electrolux” is on the boss for exhaust device. - The air vent grill is visible fixed (8 screws). - Page 19 (manufacture since Octobre 2002) Characteristics: - The corners of the ventilation system have a big (R=28mm) radius. - The logo “Dometic” is on the frame. - The frame R1640/1650 is secret fixed (12 screws). Cutout Dimensions: 451mm x 156mm For the spare parts, please have a look to the model L100/L200 L500 (Ventilation system for refrigerators >103L)
- Page 20 Dometic GmbH Technisches Büro Service Dokumentation In der Steinwiese 16 D-57074 Siegen Tel.: +49 (0) 271 / 692-0 Fax.: +49 (0) 271 / 692-322 www.dometic.de/caravan www.dometic.com...
