Summary of Contents for Mitsubishi Outlander Plug-in hybrid

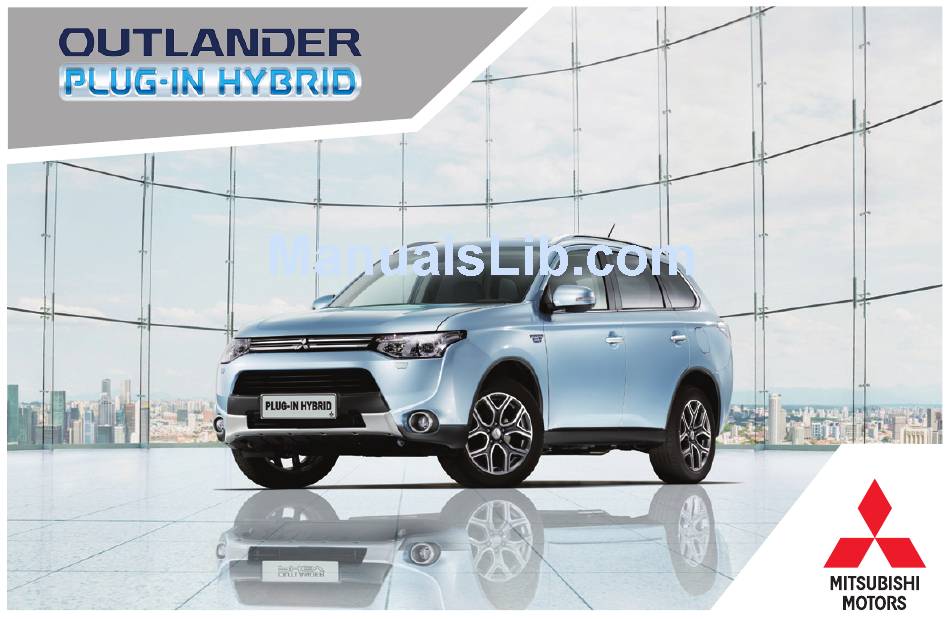

  • Page 1 QUICK GUIDE...

  • Page 3: Table Of Contents

    Electric Vehicle system/Selector lever operation Around the steering wheel 1 Around the steering wheel 2 Around the steering wheel 3 Around the centre panel Convenient features Indicator and warning lamps on the instrument cluster Luggage area arrangement Outlander Plug-In Hybrid display screens (VRX)

  • Page 4: A Few Tips To Get You Started

    VRX models you can use the app to do this remotely. Have your Outlander serviced only by an authorised Mitsubishi Motors dealer. For a list of dealers visit Use the seat heaters to warm you up as they use less battery mmnz.co.nz/dealers-and-service.
  • Page 5 Turn off the air conditioning when it’s not needed. Use 4WD Lock Mode only when additional traction or stability is required. Use Economy Mode. This maximizes the vehicle’s fuel economy. It’s activated by pressing the ‘ECO’ button. Familiarise yourself with the car’s hybrid information The Economy Mode limits other aspects of the vehicle’s display so you can monitor how much energy is being performance, such as acceleration rate and air-...

  • Page 6: Starting The Plug-In Hybrid Electric Vehicle System

    Plug-In Hybrid Electric Vehicle system What is the Plug-In Hybrid Electric Vehicle system? Electric Vehicle ‘EV’ Drive Mode MULTI DISPLAY METER The vehicle is driven only by the motors, — In Electric Vehicle Drive Mode, the vehicle is using electricity stored in the battery. driven only by the electric motors, just like an electric vehicle, up to a certain distance, using the Series Hybrid Mode...
  • Page 7 Regenerative Braking system Similar to engine braking on engine-powered vehicles, the electric motors act as generators when the accelerator pedal is released or the brake pedal is depressed while driving. In this way, kinetic energy is converted into electric energy, which is then used to charge the battery. The flow of energy during regenerative braking is displayed on the instrument cluster.

  • Page 8: Plug-In Hybrid Electric Vehicle System / Operating The Selector Level

    Paddle Selector lever (joystick type) Roles of motors and engine in various modes Mode Motors Engine Typical driving conditions Electric Vehicle Drive Mode Drive the vehicle Stationary City driving, commuting Series Hybrid Mode Drive the vehicle Generates power Powerful acceleration, hill climbing Parallel Hybrid Mode Drive the vehicle Drives the front wheels + generates power...

  • Page 9: Charging

    Charging The battery can be charged from a charging source using the 1. Engage the parking brake, press the electrical parking method shown below. switch. 2. Turn off the lights and other electric systems. Press the Charging Charge Charging Charging Charge port power switch to OFF.
  • Page 10 Button Charging indicator MITSUBISHI Remote Control* enables timed charging and air conditioning on your OUTLANDER PLUG-IN HYBRID. For details, go to mmnz.co.nz/plug-in-hybrid If the charge cable is connected to the charge port, it is not possible to start the vehicle. Operation of the radio, heater,...

  • Page 11: Driving

    Driving Operating the selector lever Reverse To start the vehicle, follow the steps below. Neutral Step 1 Ensure that the indicator is illuminated. You cannot shift into even if you move the Drive selector to those positions while the indicator is extinguished or blinking.

  • Page 12: Electric Vehicle System/Selector Lever Operation

    Electric Vehicle System / Selector level operation STEP 5 Starting the Plug-In Hybrid Electric Vehicle system Step 1 Ensure that the charging cable is disconnected from STEP 4 the vehicle. Step 2 Ensure that the parking brake is applied. Step 3 Depress the brake pedal completely. Step 4 Press the power switch completely.

  • Page 13: Around The Steering Wheel 1

    Around the steering wheel 1 01 Wiper and washer switch Windscreen wiper The switch is enabled MIST: The wiper makes one sweep — convenient in drizzle. when the power OFF: The wiper remains stopped. switch is set to ON or ACC.
  • Page 14 02 Selector lever R (Reverse): The vehicle moves in reverse. N (Neutral): No drive is transmitted to the wheels, which are not locked either. D (Drive): The vehicle moves forward. B (Regenerative brake): The intensity of regenerative braking increases. 03 Electrical parking switch Press the switch to lock the wheels when you are parking your vehicle.
  • Page 15 Around the steering wheel 2 07 Power switch Using the keyless operation key, • To switch between the power modes (OFF/ACC/ON), press Operation range of the key you can start or stop the Plug-In the power switch without depressing the brake pedal. The Hybrid Electric Vehicle system or selected power mode can be identified by the colour of the switch between the power...
  • Page 16 08 Refuelling — Once every 3 months, start and run the engine by pressing the battery charge switch. Refer to “Battery Charge Switch” on Page 12. Fuel lid (for refuelling) The fuel lid is located towards — Refuel your vehicle with at least 20 litres every 3 months. the rear end of the vehicle on the left side.

  • Page 17: Around The Steering Wheel 3

    Around the steering wheel 3 10 Active Stability Control (ASC) OFF switch Pressing and holding the ASC OFF switch for more than 3 seconds deactivates the active stability control and the ASC OFF indicator illuminates on the instrument cluster. Pressing the switch again reactivates the control.
  • Page 18 13 Acoustic Vehicle Alerting System (AVAS) OFF switch Pressing the switch deactivates the acoustic vehicle alerting system and the AVAS OFF indicator will turn on in the centre panel. Turning AVAS off is useful when driving in heavy traffic on a motorway. Do not turn the system off when there is a possibility of pedestrians on the road.

  • Page 19: Around The Centre Panel

    Around the centre panel 01 Air conditioner/heater Air direction adjustment Temperature control Mode selection display Target temperature display Increase Decrease Press the temperature control switch. Press the MODE switch (1) or the defroster switch (2). Fresh air/recirculation Air flow adjustment Blower speed display High Indicator lamp...
  • Page 20 02 Hazard warning flasher switch Use the hazard Pressing the switch again deactivates the Air conditioner ON/OFF warning flasher when demister. Alternatively, after about 15 to 20 Air conditioning indicator you have to park your minutes, the demister automatically turns vehicle on the road off.

  • Page 21: Convenient Features

    2 buzzing sounds Keyless entry Pressing the LOCK switch locks : The factory setting can be changed. For details, contact your MITSUBISHI MOTORS Authorised Service Point. all of the doors and the tailgate. : Available with Keyless Operation. Pressing the UNLOCK switch...
  • Page 22 If the lock switch is set to ON, it is no longer possible to open 01 Electric remote-controlled or close the front passenger’s and rear door windows using the L-R selector Retractor outside rear-view mirrors switch lever switch switches located there. Pressing the lock switch again cancels Angle adjustment the lock.

  • Page 23: Indicator And Warning Lamps On The Instrument Cluster

    Indicator and warning lamps on the instrument cluster If a warning lamp stays illuminated or keeps blinking, check the Turn-Signal Indicator/Hazard Warning Indicator details in the owner’s manual and contact your MITSUBISHI MOTORS Lamps Authorised Service Centre. These lamps blink when: —...

  • Page 24: Luggage Area Arrangement

    Luggage area arrangement Brake Warning Lamp This lamp illuminates when: — the parking brake is applied Folding down the rear seat creates more — the brake fluid level is too low — there is a braking system fault luggage space. SRS Air Bag/Pretensioner Warning Lamp Folding down the rear seat This lamp illuminates when there is a fault with the SRS...

  • Page 25: Outlander Plug-In Hybrid Display Screens (Vrx)

    Outlander Plug-In Hybrid display screens (VRX) To access the display screens, press ‘INFO’ and then the ‘TRIP’ touch screen button. Energy monitor Displays energy consumption by the air conditioner and motor, plus similar data. Energy flow indicator Shows the flow of energy through the Outlander Plug-In Hybrid System, which changes depending on driving conditions.
  • Page 28 www.mmnz.co.nz 28/02/2014 43353...
