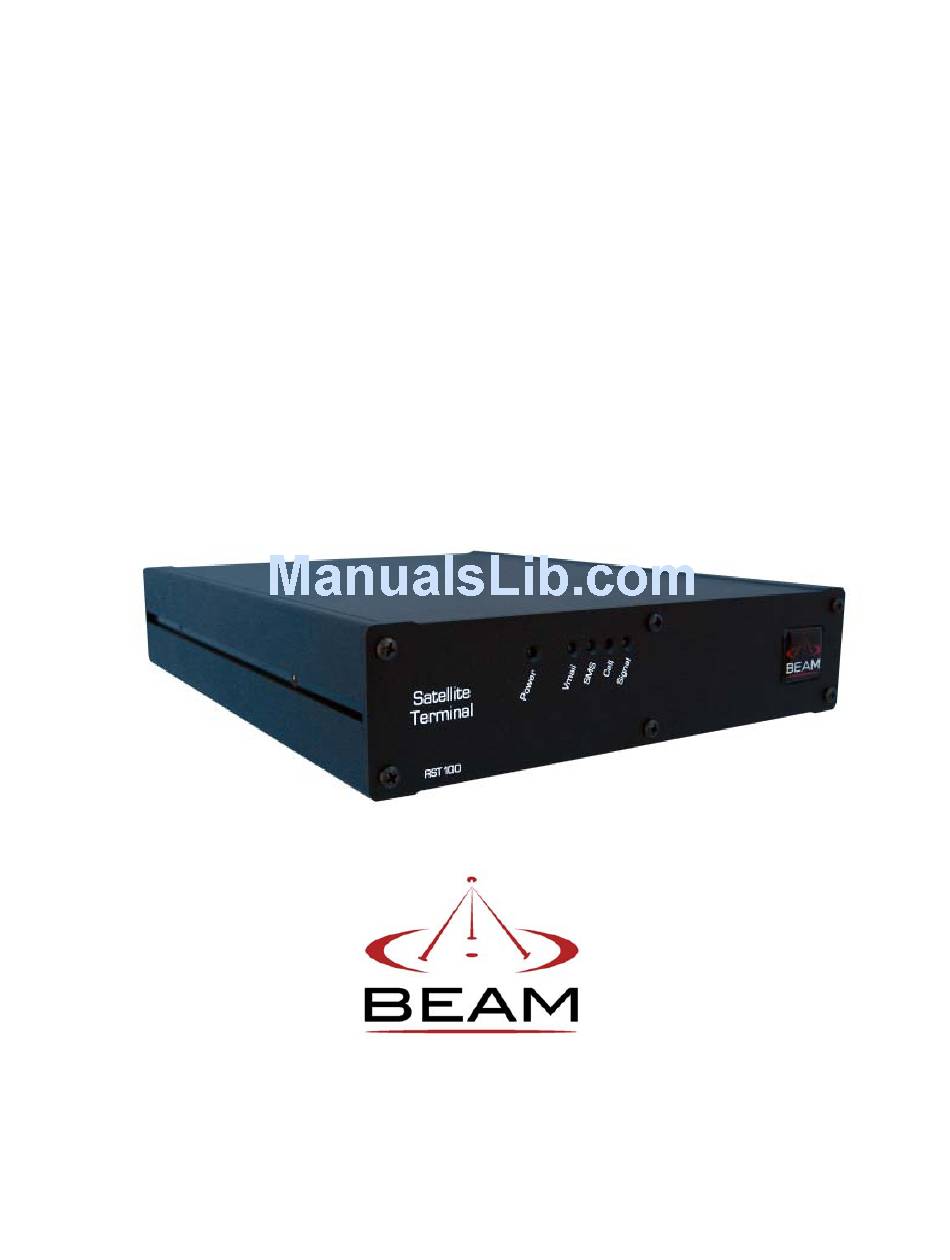

- Page 1 Remote Satellite Terminal RST100 User and Installation Manual Beam Communications Pty Ltd...
- Page 2 Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Beam.
-
Page 3: Table Of Contents
WHAT IS THE RST100?............................9 RST100 O ............................. 10 VERVIEW The Front Panel ............................. 10 The Rear Panel .............................. 10 The RST100 Status Indicators ........................11 Display Status Indicators..........................11 PACKAGE CONTENTS............................13 RST100 : ........................13 PACKAGE CONTAINS ............................. 13... - Page 4 RST100 USER & INSTALLATION MANUAL REMOTE CONFIGURATION..........................31 ............................... 32 XPLANATION INTELLIGENT HANDSET USE.......................... 33 ) RST970 .................... 33 NTELLIGENT ANDSET OPTIONAL Connecting an Intelligent Handset......................33 IN-VEHICLE HANDS FREE KIT (OPTIONAL)....................34 Installation of In-vehicle Hands-free......................34 SPECIFICATION SUMMARY ..........................35 RS232 SPECIFICATION............................
-
Page 5: Safety Information
Read the following information before installing and using the BEAM RST100. Your RST100 is a low power radio transmitter and receiver. When it is ON, it receives and sends out radio frequency (RF) signals. The design of your RST100 system complies with international safety standards. -
Page 6: Welcome
This Installation and User manual contains all the information you need to install and configure the Beam RST100 and discover the advantages of Beam Communications and Iridium Network technology. The RST100 User and Installation Manual is for new and experienced users of wireless network systems. Note:... -
Page 7: Conventions In This Manual
RST100 USER & INSTALLATION MANUAL Conventions in this Manual Warnings, cautions and notes appear throughout this manual. They are represented by following conventions. Warning: This symbol and associated text indicate a warning note providing information to prevent personal injury or damage to equipment. -
Page 8: About Beam Communications
About BEAM Communications Beam Communications, is an authorised manufacturer of Iridium Satellite products. Beam develops subscriber products that utilise the Iridium satellite network of Low Earth Orbit satellites, known as LEOs. The Iridium network is extensively used around the world by commercial enterprises and defence agencies. -
Page 9: What Is The Rst100
The RST100 provides a serial control interface and audio input and outputs by way of the transceiver’s control and connection interface. -
Page 10: Rst100 Overview
RST100 USER & INSTALLATION MANUAL RST100 Overview The Front Panel Figure 1 - The RST100 front panel Status LEDS Power Voicemail waiting* SMS waiting Call status Signal strength * Subject to network availability The Rear Panel Figure 2 - The RST100 rear panel... -
Page 11: The Rst100 Status Indicators
RST100 USER & INSTALLATION MANUAL The RST100 Status Indicators The status indicators are located on the front panel of the RST100. The LED lights on the front panel show the RST100 status. Note: The LED lights will blink in different combinations to indicate transmission such things as transmission status, signal strength and power. - Page 12 Iridium network at your location. This LED displays different colours to indicate the strength of the RF (Radio Frequency) signal and different on/off conditions to indicate the terminal status. Indictor colour Signal strength Flashing RST100 is registering with the network – please wait Green Strong Orange Acceptable No signal, problem with installation The Signal Strength LED reading will vary in status in relation to the quality of the Signal being received by the terminal.
-
Page 13: Package Contents
RST100 USER & INSTALLATION MANUAL Package Contents The RST100 package contains: 1 RST100 unit 1 universal plug-pack power adapter, 110-240V AC Requires Country Specific Monitor / Kettle Cord DC Power Cable ( for use only on 11 – 32V DC input ) -
Page 14: Getting Started
A SIM Card (Subscriber Identity Module) is a small smart card that carries your identity for accessing the network and receiving calls. It functions as the digital memory of the RST100 and also stores your personal information, including received SMS messages. - Page 15 RST100 USER & INSTALLATION MANUAL 1. Using a Phillips-head screw, remove the holding screw and keep it in a safe place. 2. Slide-open the compartment cover. 3. Remove the screws with the Allen Key provided to expose the SIM Holder of the transceiver 4.
-
Page 16: Pin Details
RST100 USER & INSTALLATION MANUAL PIN Details The RST has a number of different PINs, each one to perform or limit certain functions. The table below identifies these PINS, their function and a place for you to note the setting for your unit. -
Page 17: Installing Rst100
RST100 USER & INSTALLATION MANUAL Installing RST100 This chapter explains how to install the RST100 and the Iridium fixed-mast antenna. Warning: Make sure the RST100 is switched off before you install the cables. If you do not, the RST100 may be damaged. -
Page 18: Mounting Methods
RST100. 2. Secure the RST100 unit to the mounting brackets using supplied screws. 3. Carefully slot the RST100 between the two mounting brackets and secure with the retaining screws. -
Page 19: Connecting The Ac Power Cable
RST100 USER & INSTALLATION MANUAL Connecting the AC Power Cable 1. Make sure the AC power switch supplying the RST100 power pack is off. 2. Plug in the power cable into the power jack located on the rear panel of the RST100. -
Page 20: Connecting The Handsets
Connecting an Intelligent RST970 Handset ( Optional Item ) 1. Connect to the Iridium Intelligent Handset, if supplied, directly to the Handset socket of the RST100 main terminal. It is recommended to use only the extension cables for this handset provided. -
Page 21: Connecting The Laptop
RST100 USER & INSTALLATION MANUAL Connecting the Laptop 1. Plug the laptop cable into the Comm.’s port of the RST100, the Comm. Port for data communications is the top serial connector next to the Reset Button. Connecting to the Log Port 1. -
Page 22: Connecting The Antenna Cable
RST100 USER & INSTALLATION MANUAL Connecting the Antenna Cable 1. Plug the antenna cable into the antenna jack located on the rear panel of the RST100. 2. Ensure that the specified cable being used does not exceed the Iridium 3DB maximum loss rating to ensure maximum performance of the terminal. -
Page 23: Installing The Antenna
• Position the antenna so that it is reasonably clear of nearby metal obstructions • Minimize horizontal obstructions as much as possible because they can create areas of poor system coverage. These areas of poor coverage can decrease or possibly eliminate the user’s ability to operate the RST100 with predictability. -
Page 24: Installation Options
A specialised coaxial cable system is required to connect the Fixed Mast Antenna and RST100. This cable system is offered as an option to the Fixed Site Antenna. To minimize the loss of radio signal from the antenna to the RST100, the coaxial cable system between the antenna and the other component should be less than 3db including connector loss. -
Page 25: Using The Rj-11 Socket
1. Power up the RST 100. PIN controlled access: Your RST100 may be set-up to require a PIN and this will be indicated by the Signal light flashing Red and a distinctive dial tone consisting of two alternating tones. If a normal dial tone is heard, proceed to dial your desired number as described below. -
Page 26: Rj11 / Pots Equipment
As a rule of thumb the RST100 will support most standard RJ11 equipment that can be purchased in most countries. It is always however advisable to purchase equipment that is endorsed or certified by the authorities in your country or the major telephone company. -
Page 27: Voicemail
The Iridium network does not support facsimile transmission. Use of the RST100 with a PABX The RST100 RJ11 port presents as an FXS line, that is it looks like an exchange or central office line to a standard DTMF telephone attached to the RJ11 analog port. -
Page 28: Configuring The Rj11 Port Parameters
• Impedance (to accommodate a large range of terminals equipment including PBXs) This ability to adapt the RST100 to particular applications opens up new areas of use in crew calling, rural community centers, SOHO use and Universal Service Obligation activities. -
Page 29: Configuring Sms-Pots Feature
“BMS”. Connecting an SMS-POTS handset An SMS_POTS handset can be easily connected to the RST100 terminal via the RJ11 POTS connection. Once connected the setting within the RST100 should be configured to ensure compatibility with the handset as well as enabling the SMS- POTS feature. -
Page 30: Data Settings Auto Answer
To initialize the RST100 to receive an incoming data call, start a Terminal Program (such as HyperTerminal) with the following settings: 19200* bps, 8, N, 1, Flow Control = None. Then to enable the RST100 to auto answer, type the following AT commands to the RST100:... -
Page 31: Remote Configuration
RST100 USER & INSTALLATION MANUAL Remote Configuration The Supervisor Menu items are available for remote configuration via a combination of the Iridium Short Burst Data and or SMS services. Refer to your Service Provider on how to register for this service. -
Page 32: Explanation
RST100 USER & INSTALLATION MANUAL Explanation RST RMT is the start of command message flag 3170 is the default Supervisor PIN. ‘4’ selects the tone menu, ‘1’ selects ring frequency and ‘20’ Hz is the new ring frequency required. The automatic confirmation reply returned via email will contain: From: <Iridium SBD Service (Tempe, AZ)>... -
Page 33: Intelligent Handset Use
Intelligent Handset Use Intelligent Handset Use (optional) RST970 The RST100 is capable of supporting voice services on the Iridium network through the use of an appropriate Intelligent handset that is available as an optional item. The Intelligent handset enables you to access Voice and SMS services over the Iridium network in conjunction with the RST100 terminal interface. -
Page 34: In-Vehicle Hands Free Kit (Optional)
Installation of In-vehicle Hands-free The RST973 optional in-vehicle hands free kit is simply connected to the RJ45 socket of the RST100 module, just in the case of an Intelligent Handset. The installation instructions contained within the RST973 kit will provide more... -
Page 35: Specification Summary
RST100 USER & INSTALLATION MANUAL Specification Summary Electrical Power 11-32V DC 2.5A Plug-pack (if provided) 90-250VAC 50/60Hz input Power Consumption (Average) 12Volt 24Volt Standby Mode 0.350A 0.165A Talk/Transmit Mode 0.515A 0.255A Subscriber Line Interface Ring Equivalence Number 3 REN 600 Ω or TN12 2-wire interface... -
Page 36: Rs232 Specification
RST100 USER & INSTALLATION MANUAL RS232 Specification The RST-100 is provided with two RS232 serial ports for log and data connection. Both are 9-pin D-type (female) sockets, wired DCE for connection to a standard PC with a 1:1 cable. Physical Connection... -
Page 37: Rs232 Port Electrical Parameters
RST100 USER & INSTALLATION MANUAL RS232 Port LBT Data Port Data Logging Port DCD = DTR DSR = DTR CTS = RTS RI not connected RS232 Port Electrical Parameters The LBT “Comm” Port and Log Ports conform to the RS232 interface specification... -
Page 38: Antenna Installation Guides
RST100 USER & INSTALLATION MANUAL Antenna Installation Guides The following example will provide guidance for antenna installation techniques for specific applications. Proper antenna installation is critical for the successful operation of your Beam terminal equipment. Whilst it is not always possible to gain clear line of sight to the horizon in all situation due to poor access or environmental conditions, every effort should be made to achieve maximum visibility at all times. -
Page 39: Mobile / Transport Installations
• Connectors should be tightened as shown below in the absence of manufacturer advice specific to your cable: • Use only specified cables for the Iridium network as supplied by Beam or refer to the specification table below. -
Page 40: Protecting The Antenna From Lightning
Antennas mounted in fixed installations can be exposed to lightning strikes in certain geographical and climatological environments. It is not possible to protect the RST100, the antenna, or surrounding and/or connected equipment or structures from damage from a direct lightning strike. -
Page 41: Assuring Quality Of Iridium Service
RST100 USER & INSTALLATION MANUAL Assuring Quality of Iridium Service Iridium is committed to providing users around the world consistent, reliable, quality voice and data access all day every day. The Iridium satellite system is monitored for call performance from numerous locations 24 hours a day, 7 days a week in order to achieve this. -
Page 42: Rf Interference
RST100 USER & INSTALLATION MANUAL RF Interference. All wireless devices, including satellite telephones, are susceptible to RF (radio frequency) interference from other electronic devices. This problem is especially evident when numerous antennas and broadcasting devices are located within close proximity to each other. - Page 43 RST100 USER & INSTALLATION MANUAL In determining the optimal location for mounting an external Iridium antenna in a location where INMARSAT antennas are also located, be certain that the Iridium antenna is mounted either to the side or behind the INMARSAT antenna, and above or below it.
-
Page 44: Troubleshooting The Rst-100
RST-100. No lights on RST100 Check power is connected and switched on at the wall. RST100 fails to register with the Iridium service after 30 seconds Press reset button No dial tone Check if a data call is in progress and power is connected and equipment... - Page 45 RST100 USER & INSTALLATION MANUAL open area. Check the Call Forwarding and Call Barring settings. Check the Ringer setting. If it is off, there is no audible ringer. You can’t make international calls. Have you included the relevant codes? Press and hold the (+) key to display the international dialling prefix (+), and then enter the appropriate country code, followed by the phone number.
- Page 46 The Customer’s sole and exclusive remedy and the limit of Beam’s liability for any loss whatsoever, shall not exceed the purchase price paid by the Customer for the product to which a claim is made.
