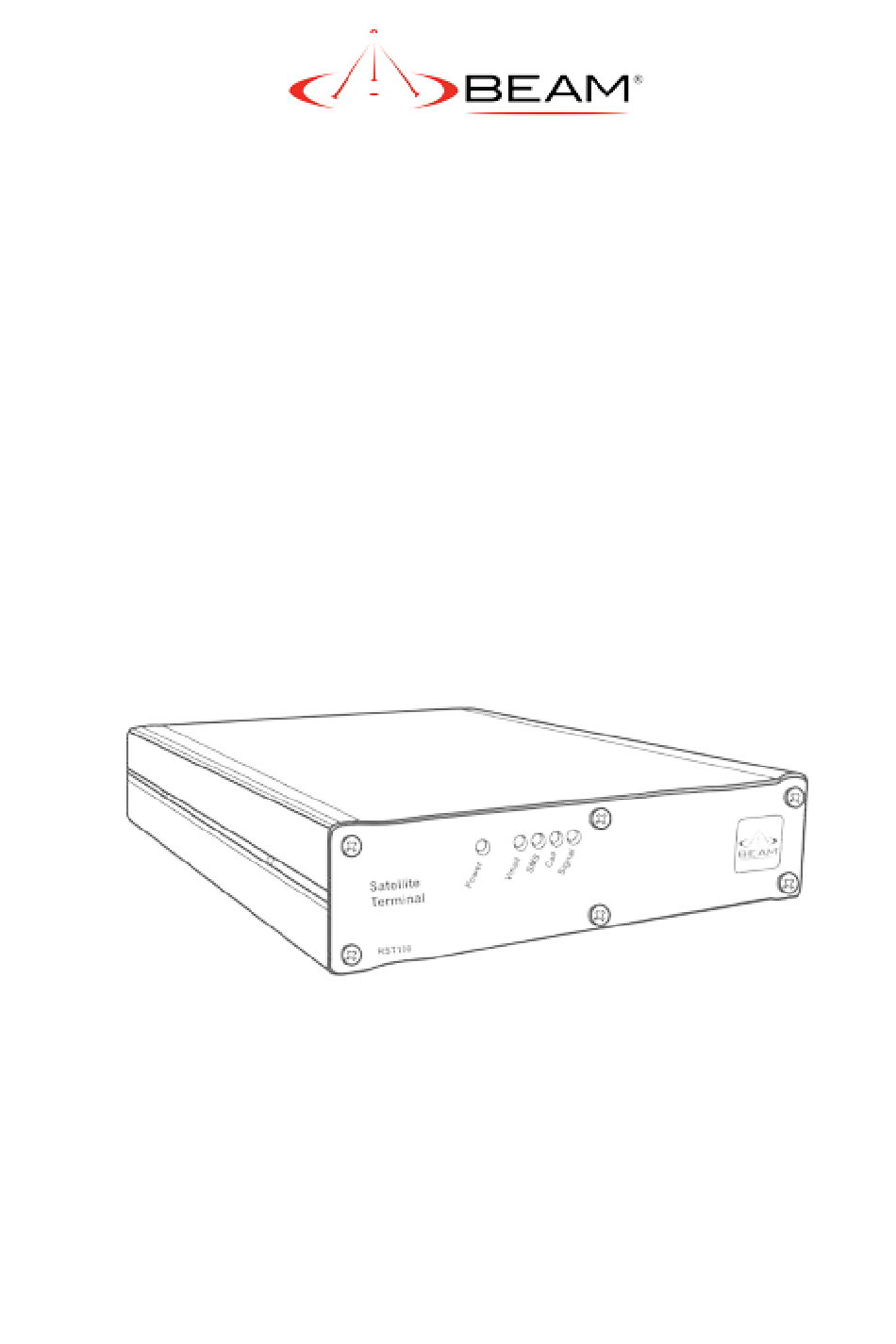

- Page 1 RST100B RemoteSAT Terminal Installation and User Manual BEAM Communications Pty Ltd...
- Page 3 Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accu- rate and reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Beam.
-
Page 4: Package Contents
Iridium Antenna ⃝ External Ringer ⃝ Beam GoalZERO UPS Battery Pack (RST060) Additional Information For the latest in supporting software and documentation for RST100B RemoteSAT please visit: www.beamcommunications.com/support/RST100B See your Service Provider for pricing and availability of these quality accessories. -
Page 5: User Information
User information Please record your serial number here for future reference: Model: Beam RST1OOB Serial no: This number can be copied from the white shipping label on the RST100B box Eg. 100A2800 The following PIN codes may be required to use your RST100B, please complete these details for future reference. -
Page 6: Table Of Contents
OPTIONAL ACCESSORIES.......................4 USER INFORMATION ........................5 CONTENTS ............................6 SAFETY INFORMATION ......................8 CONVENTIONS IN THIS MANUAL ..................8 ABOUT BEAM COMMUNICATIONS ..................9 ABOUT THE RST100B ......................10 GETTING STARTED ........................13 WHAT IS A SIM CARD? ......................13 SIM CARD PROTECTION ......................13 INSTALLING & REMOVING THE SIM CARD ..............13 INSTALLING RST100B ......................15... - Page 7 REMOTE CONFIGURATION ....................27 ACCESSORIES & OPTIONS ....................28 BEAM RST970: INTELLIGENT HANDSET ................28 SPECIFICATION SUMMARY ....................29 RS232 SPECIFICATION ......................30 PHYSICAL CONNECTION .......................30 RS232 PORT SIGNAL SUPPORT AND HANDSHAKING ..........31 RS232 PORT ELECTRICAL PARAMETERS ................31 TROUBLESHOOTING ......................32 BEAM WARRANTY & CONDITIONS ..................35...
-
Page 8: Safety Information
IMPORTANT! Please read the following information carefully before installing and using this Beam equipment. Failing to follow instructions may compromise the safety of the product and may result in personal injury and/or equipment damage. Please consult your supplier if you have any further questions. -
Page 9: About Beam Communications
Australian Stock Exchange, is a world leader in design, manufacture and distribution of specialized communications equipment for the Iridium Satellite Network. Beam’s commitment to be at the forefront has continued to increase its share of the global satellite communications market. Its premium distribution network spans the world. -
Page 10: About The Rst100B
RST100B INSTALLATION & USER MANUAL About the RST100B The RST100B - Remote Satellite Terminal: • provides a reliable and cost effective telephone or data service connection when a wired connection is not available, via the Iridium network — a satellite-based, wireless communications network. - Page 11 B: Parallel RJ11 Phone Socket C: Intelligent Handset D: Comm (Data) Port E: Reset Button F: Iridium Antenna Port G: DC Power Input H: Remote Status Indicator – Not used I: Log Port – Configuration Port using Beam Management System...
- Page 12 RST100B INSTALLATION & USER MANUAL The RST100B Status Indicators The status indicators are located on the front panel of the RST100B. The LED lights on the front panel show the RST100B status. NOTE: The LEDs will blink in different combinations to indicate transmission status, signal strength and power.
-
Page 13: Getting Started
Getting Started What is a SIM Card? A SIM Card is a Subscriber Identity Module (computer chip) that contains identity information for accessing the Iridium network. It functions as the digital memory of the RST100B and also stores your personal information, including received SMS messages. SIM Card Protection Handle the SIM card with care, avoid exposing the card to static electricity, water or dirt. - Page 14 RST100B INSTALLATION & USER MANUAL Step 1: Using a phillips-head screwdriver, remove the holding screw and keep it in a safe place. Step 2: Slide-open the compartment cover. Step 3: Remove the screws with the allen key provided to expose the SIM holder of the RST100B Step 4: Gently insert the SIM card into the slot making sure CARD...
-
Page 15: Installing Rst100B
Installing RST100B This chapter explains how to install the RST100B. WARNING: Make sure the RST100B is switched off before you connect any cables. If you do not, the RST100B may be damaged. NOTE: Before you install the RST100B, determine if the unit is preconfigured or needs customer configuration. - Page 16 RST100B INSTALLATION & USER MANUAL Mounting the RST100B unit (continued): Step 1: Attach the two (2) mounting brackets securely to a suitable struc- ture making sure the space between the brackets is wide enough to smoothly slide in the RST100B. Step 2: Secure the RST100B to the mounting brackets using supplied screws.
-
Page 17: Connecting The Ac Power Cable
Connecting the AC Power Cable Make sure the AC power switch supplying the RST100B power pack is OFF Connect the AC plug-pack to the adapter cable. Plug in the power cable into the power jack located on the rear panel of the RST100B. -
Page 18: Connecting The Dc Power Cable
RST100B INSTALLATION & USER MANUAL Connecting the DC Power Cable Connect the DC termination terminal of the cable to your DC power source Plug the remaining end with the screw connector into the power jack located on the rear panel of the RST100B. Accessory Line Handset... -
Page 19: Connecting A Laptop Or Pc
Power Input 11-32V DC Log P Remote Status Indicator Antenna Made in Australia Figure: Serial cable connected to Comm Port For more information on accessing Iridium Data Services with your RST100B, please refer to the Beam Data Guide (available at www.beamcommunications.com) -
Page 20: Connecting To The Log Port
The Log Port cannot be used for communications or data services. The Log Port can also be used when using a Beam Alert/Monitoring Device, refer to the instruction provided with the accessory device for configuration and installation. Connecting an Antenna Cable Plug the antenna cable into the antenna jack located on the rear panel of the RST100B, as shown below. -
Page 21: Installing The External Antenna
Installing the External Antenna Refer to the separate “Iridium Antenna Installation Guide” for complete instructions. This guide is supplied with your RST100B, or available for download at www.beamcommunications.com/antennainstallationguide RJ11 / POTS Equipment The RST100B supports: • multiple variations of standard telephone equipment including: standard corded, cordless, multiple handset cordless, answering machines, and other external ringing devices. -
Page 22: Pin Codes
RST100B INSTALLATION & USER MANUAL PIN Codes To activate your RST100B to make and receive calls, you may need to enter a PIN code, described below. RST100B Signal LED Handset tone Action required Enter four digit SIM PIN Flashing Red LED Distinctive dial tone: two tones of equal length and await a change of tone... -
Page 23: Making A Phone Call
Making a phone call Logging on to Iridium Network With the power turned on, the RST100B will attempt to register with the Iridium network. The Signal LED uses colours to indicate how strong the Iridium signal is at your location. Signal LED colour Signal strength definition Green... -
Page 24: Accessing Vmail And Sms On Your Rst1Oob
SMS is ready to be read. The indicator is cleared when the SMS has been read and cleared from the RST100B memory. Note: Refer to the RST100B Configuration and Beam Management System Manual for details of how to connect a PC to the RST100RST100B to read and send SMS messages. - Page 25 Service Provider. Configuring the RJ11 port parameters The ability to configure the RJ11 port parameters is one of the major features of the RST100B. Port parameters can be configured using the Beam Management System (BMS). The BMS allows the configuration of: •...
-
Page 26: Configuring Sms-Pots Feature
(as mentioned in ‘Connecting a Handset or other POTS/RJ 11 device’ section of this document). Using the Beam Management System the RST100B must be configured to enable the SMS-POTS feature. For more information, consult the RST100B Configuration and Beam Management System Manual, Available for download from www.beamcommunications.com/support/RST100B... -
Page 27: Remote Configuration
Remote Configuration The Supervisor Menu items are available for remote configuration via a combination of the Iridium Short Burst Data and or SMS services. Refer to your Service Provider on how to register for this service. To configure your RST remotely you will need to know its Phone Number, Supervisor PIN and International Mobile Equipment Identifier (IMEI) number. -
Page 28: Accessories & Options
RST100B INSTALLATION & USER MANUAL Accessories & Options The RST100B is capable of supporting voice services on the Iridium network through the use of an (optional) Intelligent handset . This Intelligent Handset enables you to IRIDIU M access Voice and SMS services over the Iridium network in conjunction with the RST100B. -
Page 29: Specification Summary
Specification Summary Electrical Power 11-32V DC 2.5A Plug-pack (if provided) 90-250VAC 50/60Hz input Power Consumption (Average) 12Volt 24Volt Standby Mode 0.350A 0.165A Talk/Transmit Mode 0.515A 0.255A Subscriber Line Interface Ring Equivalence Number 3 REN Impedance 600 or TN12 2-wire interface Open circuit voltage -48V DC+- 5% Ring Voltage... -
Page 30: Rs232 Specification
RST100B INSTALLATION & USER MANUAL RS232 Specification The RST-100 is provided with two RS232 serial ports for log and data connection. Both are 9-pin D-type (female) sockets, wired DCE for connection to a standard PC with a 1:1 cable. Physical Connection The pin-out of both connectors is described in the following table: Signal Direction... -
Page 31: Rs232 Port Signal Support And Handshaking
RS232 Port Signal Support and Handshaking On the data logging port, DCD and DSR output signals are related to DTR input and CTS is tied to RTS as shown. The Data port supports full software XON/XOFF handshaking on data (AT commands bypass this as standard for Hayes modems) or full hardware handshaking on RTS/CTS with DCD carrier indication. -
Page 32: Troubleshooting
RST100B INSTALLATION & USER MANUAL Troubleshooting This chapter provides information to help you troubleshoot problems you may encounter while running the RST100B. No LEDs on RST100B Check power is connected and switched on at the wall. RST100B fails to register with the Iridium service after 30 seconds Press reset button No dial tone Check if a data call is in progress and power is connected and equipment is in a... - Page 33 You can’t receive calls Check to see that your phone is powered on. Check the antenna. Is it properly mounted? Do you have a clear view of the sky? Check the signal strength. If the signal is weak, move the vehicle to a more open area.
- Page 34 RST100B INSTALLATION & USER MANUAL Your terminal has the SIM card inserted but the display says: Enter Enter the PIN unblocking key (PUK1) or contact your service provider Your PIN is blocked Check Card or Insert Card. Check the card is inserted correctly Check the contacts of the card are clean Clean the chip with a soft cloth See your Service Provider if continues...
-
Page 35: Beam Warranty & Conditions
The Customer’s sole and exclusive remedy and the limit of Beam’s liability for any loss whatsoever, shall not exceed the purchase price paid by the Customer for the product to which a claim is made. - Page 36 7. Beam Communications will not accept responsibility for any invoiced goods or services that are not covered by a Beam Communications written purchase order. Under no circumstance does Beam Communications agree to pay for labor or other related expenses associated with the troubleshooting and/or repair of our product without prior specific written authorization.
- Page 37 This Product is covered by Australian warranty. This Limited Warranty is applicable in all countries and is enforceable in any country or region where Beam or its reseller offer warranty service for the Product. Outside of Australia, any different warranty terms, liabilities and/or legal requirements of the country in which the Product is sold are specifically disclaimed by Beam.
- Page 40 BEAM Communications GLOBAL HEAD OFFICE Tel: +61 3 8588 4500 Fax: +61 3 9560 9055 AMERICAS Tel: +1 800 250 5819 (USA toll free) Fax: +1 888 972 8037 EUROPE Tel: +44 208 144 1405 Fax: +44 208 289 3542 Info: info@beamcommunications.com...
