Beam RST100 Installation And User Manual

Remote satellite terminal
Hide thumbs Also See for RST100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, Installer and User Manual
Remote Satellite Terminal
RST100
Installation and User
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RST100 and is the answer not in the manual?

Questions and answers

Related Manuals for Beam RST100

Summary of Contents for Beam RST100

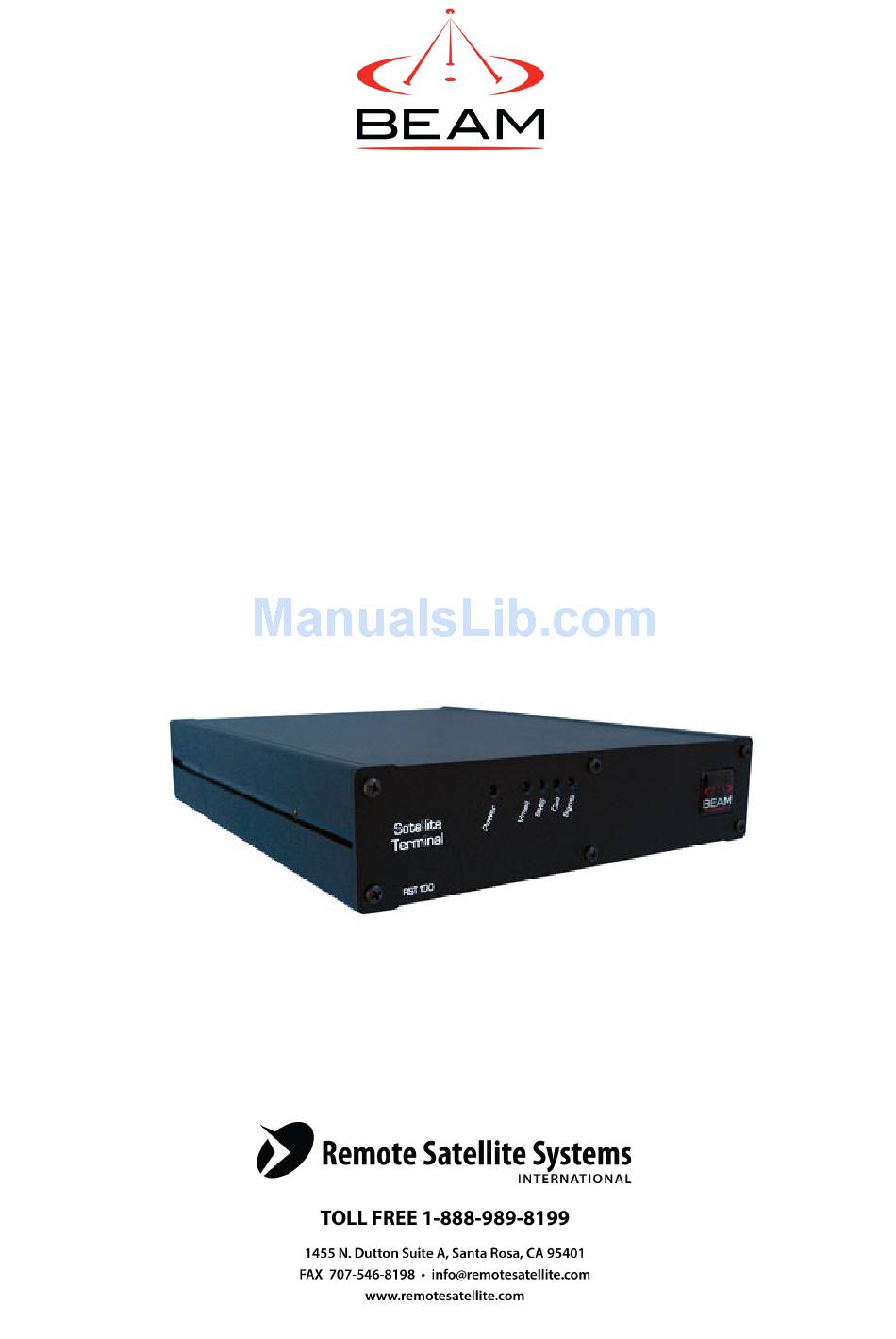

  • Page 1 Remote Satellite Terminal RST100 Installation and User Manual...
  • Page 2 Information furnished by BEAM Communications Pty Ltd (BEAM) is believed to be accurate and reliable. However, no responsibility is assumed by BEAM for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of BEAM.

  • Page 3: Package Contents

    RST970 - Intelligent handset o Cable Kit o Antenna o External Ringer Additional Information For the latest in supporting software and documentation for RST100 RemoteSAT please visit www.beamcommunications.com/support/RST100 See your Service Provider for pricing and availability of these quality accessories.

  • Page 4: User Information

    Model: BEAM RST100  Serial no.: This number can be copied from the white shipping label on the RST100 box Eg. 100A2800 The following PIN codes may be required to use your RST100, please complete these details for future reference.

  • Page 5: Table Of Contents

    RST100 INSTALLATION & USER MANUAL Contents PACKAGE CONTENTS .......................... 3 ........................3 PTIONAL CCESSORIES USER INFORMATION ..........................4 CONTENTS ............................. 5 SAFETY INFORMATION ........................6 ....................... 6 ONVENTIONS IN THIS ANUAL ABOUT BEAM COMMUNICATIONS ..................... 7 ABOUT THE RST100 ..........................8 GETTING STARTED ..........................

  • Page 6: Safety Information

    Please consult your supplier if you have any further questions. Your RST100 is a low power radio transmitter and receiver, when ON, it receives and sends out radio frequency (RF) signals.

  • Page 7: About Beam Communications

    Australian Stock Exchange, is a world leader in design, manufacture and distribution of specialized communications equipment for the Iridium Satellite Network. Beam’s commitment to be at the forefront has continued to increase its share of the global satellite communications market. Its premium distribution network spans the world.

  • Page 8: About The Rst100

    RST100 INSTALLATION & USER MANUAL About the RST100 The RST100 - Remote Satellite Terminal:  provides a reliable and cost effective telephone or data service connection when a wired connection is not available, via the Iridium network — a satellite-based, wireless communications network.
  • Page 9 A: RJ11 Phone Socket B: Parallel RJ11 Phone Socket C: Intelligent Handset D: Comm (Data) Port E: Reset Button F: Iridium Antenna Port G: DC Power Input H: Remote Status Indicator – Not used Log Port – Configuration Port using BEAM Management System...
  • Page 10 RST100 INSTALLATION & USER MANUAL The RST100 Status Indicators The status indicators are located on the front panel of the RST100. The LED lights on the front panel show the RST100 status. Note: The LEDs will blink in different combinations to indicate transmission status, signal strength and power.

  • Page 11: Getting Started

    What is a SIM Card? A SIM Card is a Subscriber Identity Module (computer chip) that contains identity information for accessing the Iridium network. It functions as the digital memory of the RST100 and also stores your personal information, including received SMS messages.
  • Page 12 RST100 INSTALLATION & USER MANUAL Step 1: Using a Phillips-head screwdriver, remove the holding screw and keep it in a safe place. Step2: Slide-open the compartment cover. Step 3: Remove the screws with the Allen Key provided to expose the SIM Holder of...

  • Page 13: Installing Rst100

    Before you install the RST100, determine if the unit is preconfigured or needs customer configuration. Mounting the RST100 The RST100 comes with two (2) right angle brackets that allow mounting for mobile and fixed positioning. Note: To ensure a secure installation: 1.
  • Page 14 RST100. Step 2: Secure the RST100 to the mounting brackets using supplied screws. Step 3: Carefully slot the RST100 between the two mounting brackets and secure with the retaining screws.

  • Page 15: Connecting The Ac Power Cable

    1. Make sure the AC power switch supplying the RST100 power pack is OFF. 2. Plug in the power cable into the power jack located on the rear panel of the RST100. 3. Secure the cable by tightening the plug collar.

  • Page 16: Connecting A Handset Or Other Pots/Rj 11 Device

    RST100 INSTALLATION & USER MANUAL Connecting a Handset or other POTS/RJ 11 device 1. Connect a telephone, answering machine or cordless phone into the Line or Accessory socket. This socket supports an RJ11 plug. Facsimile Messaging via a standard RJ11 connection is not supported on the Iridium Network –...

  • Page 17: Connecting A Laptop Or Pc

    The Log Port should only be used for configuration and control of the terminal equipment. The Log Port cannot be used for communications or data services. The Log Port can also be used when using a BEAM Alert/Monitoring Device, refer to the instruction provided with the accessory device for configuration and installation.

  • Page 18: Connecting An Antenna Cable

    1. Plug the antenna cable into the antenna jack located on the rear panel of the RST100, as shown below. Secure this cable by tightening the connector collar. 2. The specified cable being used must not exceed the Iridium 3dB maximum loss rating.

  • Page 19: Rj11 / Pots Equipment

    PIN Codes To activate your RST100 to make and receive calls, you may need to enter a PIN code, described below. RST100 Signal LED...

  • Page 20: Making A Phone Call

    Making a phone call Logging on to Iridium Network With the power turned on, the RST100 will attempt to register with the Iridium network. The Signal LED uses colours to indicate how strong the Iridium signal is at your location.

  • Page 21: Accessing Vmail And Sms On Your Rst100

    Connecting your RST100 with a PABX The RST100 RJ11 port presents as an FXS line, that is, it looks like an exchange or central office line to a standard DTMF telephone attached to the RJ11 analog port. If instead of a standard telephone, a PABX is connected, then the RST100 is performing the role of...

  • Page 22: Configuring Sms-Pots Feature

    RST100 INSTALLATION & USER MANUAL Configuring the RJ11 port parameters The ability to configure the RJ11 port parameters is one of the major features of the RST100. Port parameters can be configured using the BEAM Management System (BMS). The BMS allows the configuration of: •...

  • Page 23: Connecting An Configuring An Sms-Pots Telephone

    (as mentioned in ‘Connecting a Handset or other POTS/RJ 11 device’ section of this document). Using the BEAM Management System the RST100 must be configured to enable the SMS- POTS feature. For more information, consult the RST100 Configuration and Beam Management System...

  • Page 24: Accessories & Options

    RST100 INSTALLATION & USER MANUAL Accessories & Options BEAM RST970: Intelligent Handset The RST100 is capable of supporting voice services on the Iridium network through the use of an (optional) Intelligent handset . This Intelligent Handset enables you to access Voice and SMS services over the Iridium network in conjunction with the RST100.

  • Page 25: Specification Summary

    RST100 INSTALLATION & USER MANUAL Specification Summary Electrical Power 11-32V DC 2.5A Plug-pack (if provided) 90-250VAC 50/60Hz input Power Consumption 12Volt 24Volt (Average) Standby Mode 0.350A 0.165A Talk/Transmit Mode 0.515A 0.255A Subscriber Line Interface Ring Equivalence Number 3 REN Impedance 600 Ω...

  • Page 26: Rs232 Specification

    RST100 INSTALLATION & USER MANUAL RS232 Specification The RST-100 is provided with two RS232 serial ports for log and data connection. Both are 9-pin D-type (female) sockets, wired DCE for connection to a standard PC with a 1:1 cable. Physical Connection...

  • Page 27: Rs232 Port Signal Support And Handshaking

    RST100 INSTALLATION & USER MANUAL RS232 Port Signal Support and Handshaking On the data logging port, DCD and DSR output signals are related to DTR input and CTS is tied to RTS as shown. The Data port supports full software XON/XOFF handshaking on data (AT commands bypass this as standard for Hayes modems) or full hardware handshaking on RTS/CTS with DCD carrier indication.

  • Page 28: Troubleshooting

    RST100. No LEDs on RST100 Check power is connected and switched on at the wall. RST100 fails to register with the Iridium service after 30 seconds Press reset button No dial tone Check if a data call is in progress and power is connected and equipment is in a...
  • Page 29 RST100 INSTALLATION & USER MANUAL You can’t receive calls Check to see that your phone is powered on. Check the antenna. Is it properly mounted? Do you have a clear view of the sky? Check the signal strength. If the signal is weak, move the vehicle to a more open area.
  • Page 30 RST100 INSTALLATION & USER MANUAL Your terminal has the SIM card inserted but the display says: Enter PUK Enter the PIN unblocking key (PUK1) or contact your service provider Your PIN is blocked Check Card or Insert Card. Check the card is inserted correctly...

  • Page 31: Beam Warranty Conditions

    The Customer’s sole and exclusive remedy and the limit of BEAM liability for any loss whatsoever, shall not exceed the purchase price paid by the Customer for the product to which a claim is made.
