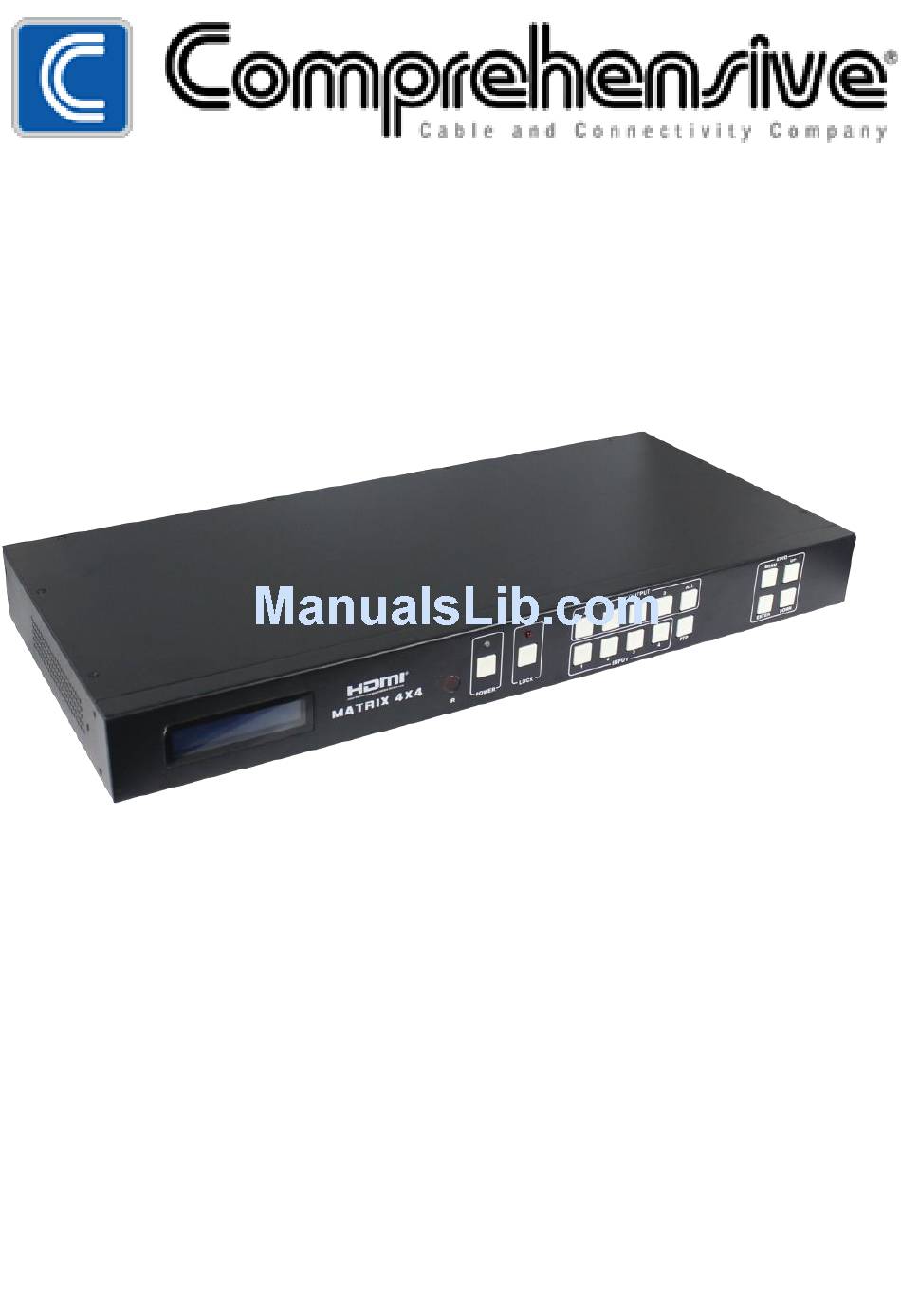

- Page 1 HDMI 4x4 True Matrix Switcher/Extender over single Cat5e/6 with EDID Operation Manual CSW-HD440NEXT CSW-HD440NEXT Page 1 of 19...
- Page 2 1. Introduction The Comprehensive CSW-HD440NEXT with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolutions up to 1080p Full HD) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and...
-
Page 3: Package Contents
ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 12 V/5 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 17.32” (W)× 7.87” (D)× 1.77” (H) Weight 4.01 lbs Chassis Material Metal CSW-HD440NEXT Page 3 of 19... -
Page 4: Panel Functions
LOCK: Press this button to lock all the buttons on the panel, press again to unlock. Part 3. OUTPUT/INPUT: Press the OUTPUT and INPUT button to select the output corresponding input. For example: Press OUPUT ALL>INPUT 1, The OUTPUT A,B,C,D will be CSW-HD440NEXT Page 4 of 19... - Page 5 3D, 1080p,DOLBY/DTS 5.1 3D,1080p, HD AUDIO 4k*2k, 2CH AUDIO 4k*2k, DOLBY/DTS 5.1 4k*2k, HD AUDIO DVI 1024x768 DVI 1920X1080 DVI 1920X1200 Copy from HDMI OUTPUT1 Copy from HDMI OUTPUT2 Copy from HDMI OUTPUT3 Copy from HDMI OUTPUT4 CSW-HD440NEXT Page 5 of 19...
-
Page 6: Rear Panel
The HDMI Matrix for has a multiple EDID management modes that will control how the EDID information from multiple devices/displays are combined, ignored, and routed. 5.2 Rear Panel CSW-HD440NEXT Page 6 of 19... - Page 7 IR IN/OUT: Super IR control system interface. for further details, please refer to the Super IR system control introduction. Part3: HDMI INPUT Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable. Part4: HDMI and CAT OUTPUT CSW-HD440NEXT Page 7 of 19...
-
Page 8: Remote Control
Plug the 12V/2.5A DC power supply into the unit and connect the adaptor to an AC outlet. 6. Remote Control 1. Press this button to power on the matrix or set it to standby mode. 2.Press these button to select output A,B,C,D for input 1,2,3,4 port. Super Control CSW-HD440NEXT Page 8 of 19... - Page 9 This is accomplished by placing a series of IR Emitters on devices to control and IR Receivers at all locations you wish to control from to enable the IR signal to travel both ways via the single Cat5e/6/7 cable. CSW-HD440NEXT Page 9 of 19...
- Page 10 02. At display end: Insert the IR RX Receiver jack into the IR RX port of the display receiver balun, with the receivers themselves placed in clear view on or CSW-HD440NEXT Page 10 of 19...
-
Page 11: Advanced Operation
8. HDMI CAT Receiver CSW-HD440NEXT Page 11 of 19... - Page 12 Matrix by RS232 COM port or TCP/IP to complete installation. Preparation Connect PC and Matrix by RS232 cable (headers of both sides of cable should be FEMALE) or TCP/IP(local area network) Power-up Matrix Double click MatirxController.exe icon to run it CSW-HD440NEXT Page 12 of 19...
- Page 13 Configure Matrix IP and MAC Enable or disable IR /beep Device information display area Click to refresh device status: include device information displayed in area and Input/Output Settings on “Matrix” page CSW-HD440NEXT Page 13 of 19...
- Page 14 Configure TCP After action of , edit form will pop-up as below: Select auto or static IP Rewrite the Matrix IP Rewrite the Matrix MAC CSW-HD440NEXT Page 14 of 19...
- Page 15 “Set” button to complete action. Select Output port Download EDID content to selected Input port or All Input ports, click “Download” button to complete action. Open EDID binary file Display EDID binary file path CSW-HD440NEXT Page 15 of 19...
- Page 16 “Matrix” page LED which display Input number for respective Output Click to select Input port for respective Output port Click to select previous or next Input port for respective Output port CSW-HD440NEXT Page 16 of 19...
- Page 17 Display the FW file path Displaying the progress of the software upgrade Click to upgrade the Matrix software Display the message of the software upgrade Clear the message of the software upgrade CSW-HD440NEXT Page 17 of 19...
- Page 18 1, to the E50IR Receiver display receivers (sold separately) (using well terminated or pre-terminated Cat5e/6 cables no longer than 160 ft) 3. If utilizing UTP, connect the output HDMI ports of the E50IR Receiver display receivers (sold separately) to high-definition displays such as an HDTV CSW-HD440NEXT Page 18 of 19...
- Page 19 If the IR remote function is not responding, check the emitters to ensure they are placed correctly and are plugged into the correct IR jacks on the Matrix Selector Switcher unit. 1-800-526-0242 sales@comprehensivecable.com Mailing Address: 80 Little Falls Road Fairfield, NJ 07004 CSW-HD440NEXT Page 19 of 19...
