PTN
m
Electronics
CSW-RGBHV88A Matrix Switchers System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSW-RGBHV88A and is the answer not in the manual?

Questions and answers

Related Manuals for Comprehensive CSW-RGBHV88A

Summary of Contents for Comprehensive CSW-RGBHV88A

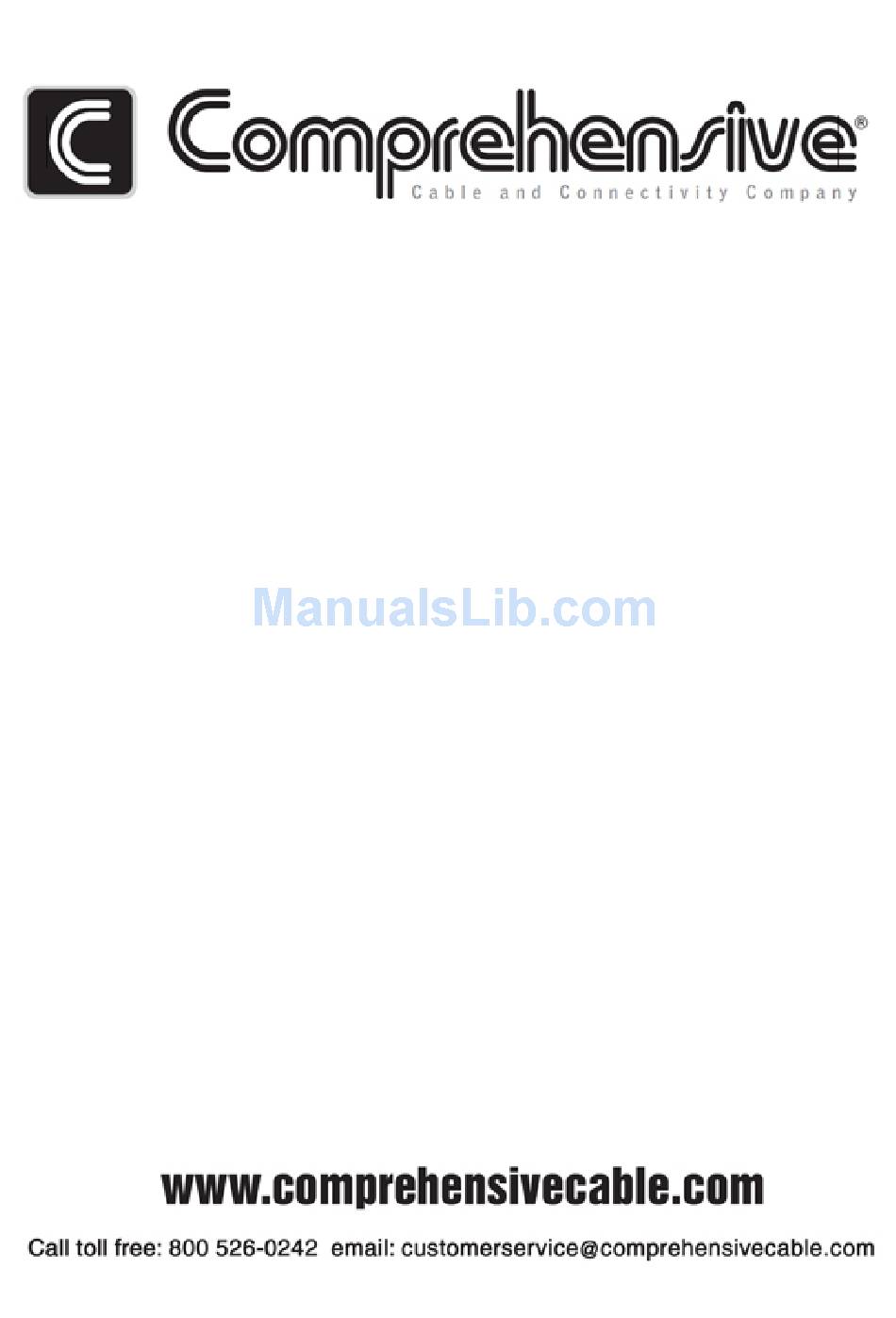

  • Page 1 Electronics CSW-RGBHV88A Matrix Switchers System User Manual...
  • Page 2 Notice： This RGBHV Matrix Switchers User Manual takes example of the Matrix model MRG88A. It can be use d as user ’s manual of other RGBHV matrix switcher models. This manual is only an instruction for operators, not for any maintenance u sage. The functions described in this version are updated till Jan 2010.
  • Page 3 RGBHV/Stereo Audio Matrix Switcher Safety Operation Guide SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: •...

  • Page 4: Table Of Contents

    RGBHV/Stereo Audio Matrix Switcher Contents 1. INTRODUCTION ..........................1 1.1 About MRG Matrix Switcher System ..................1 1.2 MRG Matrix Switcher Models ....................1 2. PACKING OF THE PRODUCT ......................3 3. INSTALLATION ..........................3 4. FRONT VIEW AND REAR VIEW OF THE PRODUCT ............... 4 4.1 Front View of the ....

  • Page 5: Introduction

    RGBHV/Stereo Audio Matrix Switcher 1. Introduction 1.1 About MRG Matrix Switcher System MRG series Matrix switcher is a high-performance professional computer and audio signal switcher that can be used for cross switching of multi computer and audio signal. Independent RGBHV component and balanced/unbalanced I/O terminals make each component signal transmit and switch separately;...
  • Page 6 RGBHV/Stereo Audio Matrix Switcher RS232 Specifications Video Inputs Video Outputs Audio Inputs Audio Outputs Interface Models MRG168 × × √ MRG168A √ MRG1616 × × √ MRG1616A √ MRG248 × × √ MRG248A √ MRG2416 × × √ MRG2416A √ MRG2424 ×...

  • Page 7: Packing Of The Product

    RGBHV/Stereo Audio Matrix Switcher 2. Packing of the Product MRG Matrix Switcher RS-232 Communication Cord Power Supply Cord CD with Application SWITCHER 2.0 3. Installation MRG matrix switchers adopt metal shell and can be stacked with other device. Moreover, they are rack-mountable enclosure and can be installed in the standard 19 inches case.

  • Page 8: Front View And Rear View Of The Product

    RGBHV/Stereo Audio Matrix Switcher 4. Front View and Rear View of the Product 4.1 Front View of the CSW-RGBHV88A 4.2 Rear View of the CSW-RGBHV88A...
  • Page 9 RGBHV/Stereo Audio Matrix Switcher 4.3 Front View of the CSW-RGBHV88A 4.4 Rear View of the CSW-RGBHV88A...

  • Page 10: Front View Of The

    RGBHV/Stereo Audio Matrix Switcher 4.5 Front View of the CSW-RGBHV88A 4.6 Rear View of the CSW-RGBHV88A...

  • Page 11: External Connection

    RGBHV/Stereo Audio Matrix Switcher Some more models: MRV 24 channels series MRV 32 channels series MRV 48 channels series MRV 64 channels series MRV 96 channels series MRV128 channels series 5. External Connection 5.1 Introduction of the Input and Output Connectors According to different type of matrix, computer signal I/O interface are make up of Channel 8 Channel 16 Channel 24 Channel 32 Channel 48 Channel 64 Channel 96 Channel 128 BNC...

  • Page 12: Connection With Control Systems

    RGBHV/Stereo Audio Matrix Switcher 5.2.1 Connection with Control Systems With the RS-232 port, the MRG matrix switchers can be control by several kinds of control systems. 5.2.2 Connection with Computer When the switcher connects to the COM1 or COM2 of the computer with control software, users can control it by that computer.

  • Page 13: Operation Of The Control Panel

    RGBHV/Stereo Audio Matrix Switcher Audio connection is complicated than video. It has two kinds of connection: balanced and unbalanced. The balanced connection transmits a pair of balanced signals with two signal cords. Because interferences will have the same intensity and the opposite phases on the two signal cords, it will be counteracted in the end.

  • Page 14: Command Format Of The Switching Operation

    RGBHV/Stereo Audio Matrix Switcher 6.2 Command Format of the Switching Operation With the front control panel, the switcher could be control directly and rapidly by pressing the buttons under below format. “Menu” +“Input Channel” +“Output Channel 1” “Menu”: “AV”, “Audio”, “Video” “Input Channel”: Fill with the number of input channel to be controlled “Output Channel”: Fill with the number of output channels to be controlled 6.3 Examples of Operation...

  • Page 15: Communication Protocol And Command Codes

    RGBHV/S Stereo Audi io Matrix Sw witcher The inputs channels, from 0~9, and plusing “1 0+” for more Menu, for switching source an function The outputs channels, f from 0~9, and plusing “10 0+” for more 8. C Comm munica ation Proto ocol...
  • Page 16 RGBHV/Stereo Audio Matrix Switcher Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Command Functions Types Codes /*Type; Inquire the models information. /%Lock; Lock the keyboard of the control panel on the Matrix. /%Unlock; Unlock the keyboard of the control panel on the Matrix. /^Version;...
  • Page 17 RGBHV/Stereo Audio Matrix Switcher actual operation. 3. Please remember to end the commands with the ending symbols “.” and “;”. Detail Examples: Transfer signals from an input channel to all output channels: [x1]All. Example: To transfer signals from the input channel No.3 to all output channels. Run Command: “3All.”...

  • Page 18: Technical Specifications

    RGBHV/Stereo Audio Matrix Switcher 16 Clear the preset command [Y]: Clear[Y]. Example: To clear the preset command No.5. Run Command: “Clear5.” 9. Technical Specifications Video Input Video Output Input 8 RGBHV Output 8RGBHV Input Connector Female BNC Output Connector Female BNC Return Loss <-30dB@5MHz Return Loss...

  • Page 19: System Diagram

    RGBHV/Stereo Audio Matrix Switcher 10. System Diagram 11. Troubleshooting & Maintenance When the output image in the destination device connected to the MRG Matrix has ghost, such as the projector output with ghost, please check the projector’s setting or try another high quality connection cord.
  • Page 20 RGBHV/Stereo Audio Matrix Switcher COM port number in the software and make sure the COM port is in good condition. If there is not “beep” sound when switching the I/O signal, please make sure the beeper is switched on. If so, the beeper inside the matrix may be broken. Please send it to the dealer for fixing. When switching , the beeper beeps but without any output image Check with oscilloscope or multimeter if there is any signal at the input end.
