CSW-HD442-4K60

HDMI 4x4 True

Matrix Switcher

Splitter with Control

Operation Manual

Need help?

Do you have a question about the CSW-HD442-4K60 and is the answer not in the manual?

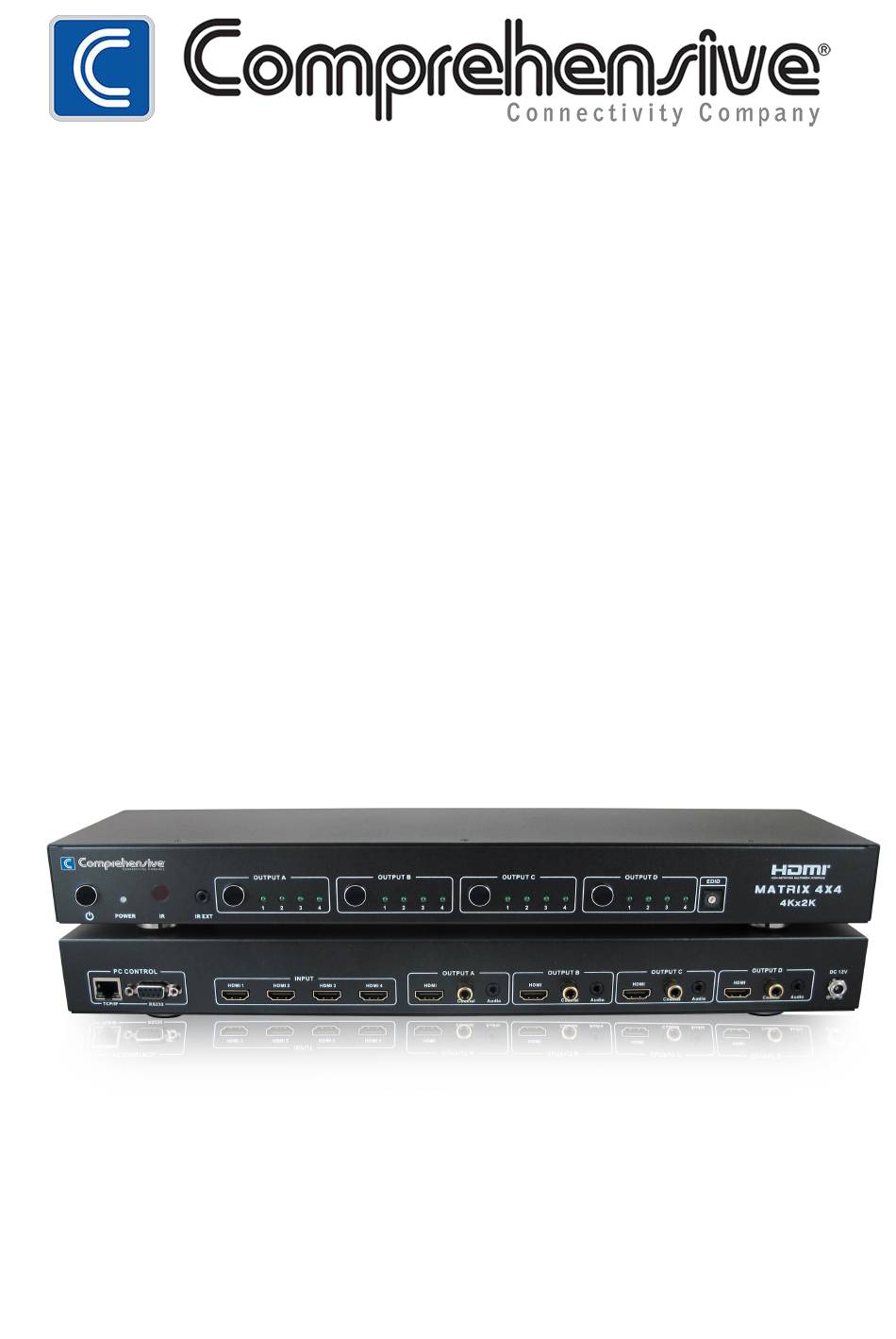

Page 1 CSW-HD442-4K60 HDMI 4x4 True Matrix Switcher Splitter with Control Operation Manual...
Page 9: Matrix Page
User manual Matrix Page 4x4 HDMI Matrix Controller General EDID FW Upgrade OUTPUT A OUTPUT OUTPUT OUTPUT AR:C ---- 1. LED which display Input number for respective Output 2. Click to select Input port for respective Output port 3. Click to select previous or next Input port for respective Output port 4.
Page 12 1.RS-232 Command: Baudrate：115200 Data width ： 8bit Parity: none Stop: 2bit Port switch command package length is 13byte: [0xa5+0x5b+0x02+0x03+input port(1~4)+0x00+output port(1~4)+0x00+0x00+0x00+0x00+0x00+checksum] All you need to change is just “input port”, ”output port”, ”checksum” Checksum = 0x100 – (0xa5+0x5b+0x02+0x03+input port+0x00+output port+0x00+0x00+0x00+0x00+0x00) For example: Set output 1 form input 2 command: A5 5B 02 03 02 00 01 00 00 00 00 00 F8 query...
Page 13 The blue mean the number, it should be 1~15. Edid index Edid index list: 1080p,Stereo Audio 2.0 1080p,Dolby/DTS 5.1 1080p,HD Audio 7.1 1080i,Stereo Audio 2.0 1080i,Dolby/DTS 5.1 1080i,HD Audio 7.1 3D,Stereo Audio 2.0 3D,Dolby/DTS 5.1 3D,HD Audio 7.1 4K2K30,Stereo Audio 2.0 = 10 4K2K30,Dolby/DTS 5.1 = 11...
Page 14 Send package: A5 5B 01 04 00 00 00 00 00 00 00 FA Receive package: A5 5B 01 04 01 00 00 00 00 00 00 FB The red mean the input port number, it should be 1~4. The blue mean this port is plug out, if mean plug in.
