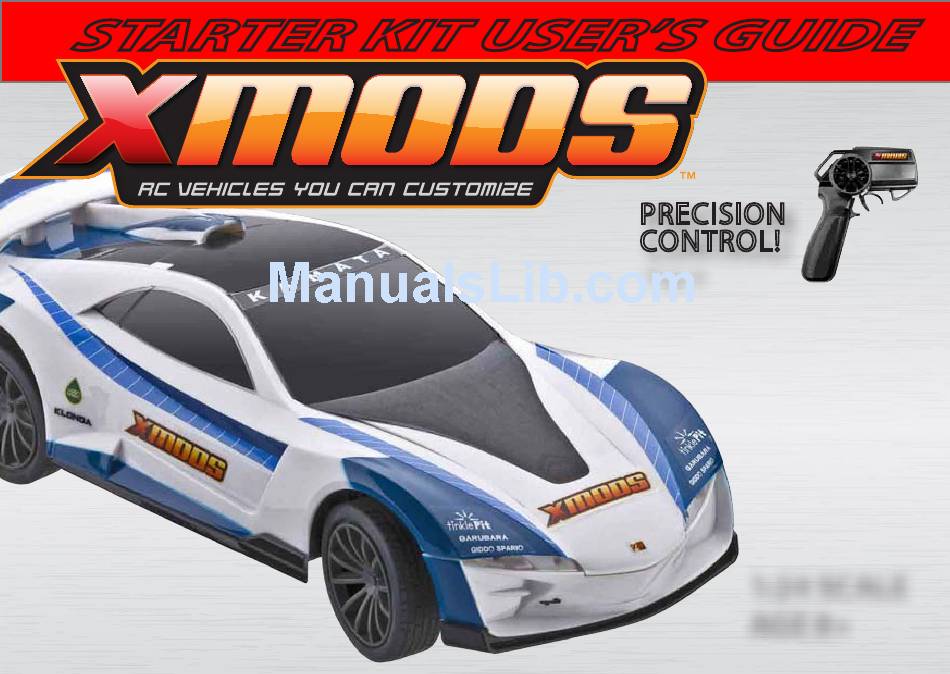

- Page 1 STARTER KIT USER’S GUIDE PRECISION CONTROL! Page 8. The 6000939 XMODS Starter Kit revs up your XMODS experience. 1:24 SCALE Please read this user’s guide before AGE 8+ building and using your new car.
-
Page 2: Table Of Contents
Contents XMODS Custom RC Starter Kit ......................... 3 Install the Car Batteries..........................4 Install the Controller Battery ........................4 Assembling Your XMODS Custom RC ....................5 Assembling the Car Chassis ........................5 Pairing Your Controller and the Car ....................6 Mounting the Car Body on the Chassis .................... -
Page 3: Xmods Custom Rc Starter Kit
XMODS Custom RC Starter Kit Thank you for purchasing your XMODS Custom RC Start Kit! Your starter kit features: • Four-wheel spring suspension to provide improved handling over uneven surfaces. • Decals to customize the body exterior. • Multiple frequency bands that allow up to eight people to race. -
Page 4: Install The Car Batteries
Install the Car Batteries 1. Make sure the power switch on the chassis is OFF. 2. Remove the screw on the battery compartment cover. Then carefully unlatch the battery compartment cover and remove the cover. 3. Insert four AA batteries (not included) in the compartment, matching the polarity symbols (+ and –) marked inside. -
Page 5: Assembling Your Xmods Custom Rc
• If you do not plan to use the vehicle for several days, remove the batteries. Batteries can leak chemicals that can destroy electronic parts. Assembling Your XMODS Custom RC Assembling the Car Chassis 1. Connect the terminal of the Front Unit to the terminal of the Battery Unit, and secure them with two screws. -
Page 6: Pairing Your Controller And The Car
Pairing Your Controller and the Car ON/OFF LED Indicator Your XMODS operates at a frequency of 2.4Ghz. Before driving the first time, you must pair the controller and car. 1. Turn on the controller. 2. Turn on the car (The power switch is under the chassis). -
Page 7: Mounting The Car Body On The Chassis
Mounting the Car Body on the Chassis 1. Insert the chassis tab into the slot inside the front bumper. 2. Lower the rear of the body so the tab near the back of the car body enters the slot behind the rear axle. -
Page 8: Driving Your Car And Adjusting Trim
To conserve battery life, turn off the controller and car after you finish driving. • Handle your XMODS car and controller carefully and do not drop them. Keep away from dust and dirt. Wipe your car and controller with a damp cloth occasionally to keep them looking new. -
Page 9: Xmods Upgrades
XMODS Upgrades Modify and personalize your XMODS car with these available kits. Check out the entire line of XMODS upgrades and accessories at your local RadioShack store and www.RadioShack.com. Body and Nitro Kit (6000944) Soup up your XMODS with a new body, featuring custom hubcaps, a hood scoop, and nitro booster. -
Page 10: Fcc Information
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 11 follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) damage or failure caused by loss of control, loss of signal between the toy and its controller due to excessive range or low power, impact, violent contact, collision or rough use;...
- Page 12 Car models for video games "Ridge Racer" series originally created by NAMCO BANDAI Games Inc. Ridge Racer™ & ©NAMCO BANDAI Games Inc. XMODS is a trademark used by RadioShack Corporation. 07A13 ©2013. RadioShack Corporation. All rights reserved. 6000939 RadioShack is a registered trademark used by RadioShack Corporation.
