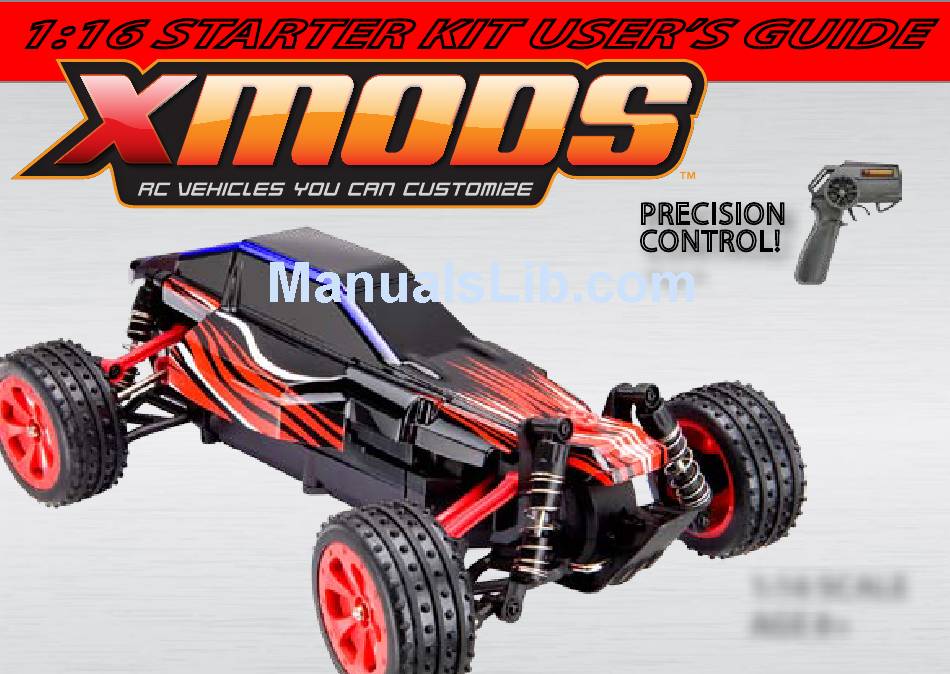

1:16 STARTER KIT USER'S GUIDE
Please read this user's guide before
building and using your new buggy.
PRECISION
CONTROL!
Page 9.
The 6000940 XMODS Starter Kit revs up
your XMODS experience.
1:16 SCALE
AGE 8+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1:16 STARTER KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XMODS 1:16 STARTER KIT

Summary of Contents for XMODS 1:16 STARTER KIT

  • Page 1 1:16 STARTER KIT USER’S GUIDE PRECISION CONTROL! Page 9. The 6000940 XMODS Starter Kit revs up your XMODS experience. 1:16 SCALE Please read this user’s guide before building and using your new buggy. AGE 8+...

  • Page 2: Table Of Contents

    Contents XMODS Custom RC Starter Kit ......................... 3 Installing Buggy Batteries ......................... 4 Install the Transmitter Battery ......................... 5 Assembling Your XMODS Custom RC ....................6 Assembling the Buggy Chassis ......................6 Pairing Your Transmitter and the Buggy ..................7 Mounting the Buggy Body on the Chassis ..................

  • Page 3: Xmods Custom Rc Starter Kit

    • Digitally proportional steering for optimal speed, acceleration, and maneuverability. To really get your motor running, customize your XMODS with optional upgrades for both performance and looks, available at your local RadioShack store. Check out the line-up of XMODS upgrades available online at www.RadioShack.com.

  • Page 4: Installing Buggy Batteries

    Install Buggy Batteries To install AA batteries: 1. Make sure the power switch on the chassis is OFF. 2. Remove the screw on the AA battery box cover. Then carefully unlatch and remove the cover. 3. Insert 6 AA batteries (not included) in the box, matching the polarity symbols (+ and –) marked inside.

  • Page 5: Install The Transmitter Battery

    Install the Transmitter Battery Your transmitter needs a 9V battery (not included). We recommend 9V alkaline batteries for better performance. If the LED is off or the range of your buggy decreases, replace the battery. 1. Make sure the power switch is OFF, then remove the screw on the battery compartment.

  • Page 6: Assembling Your Xmods Custom Rc

    2. Connect the terminal of the Rear Unit to the terminal of the Main Control Unit, and secure them with two screws. Note: When updating your buggy with new rubber tires, to run smoothly make sure you fit the tires aligned with the XMODS logo facing on the outside.

  • Page 7: Pairing Your Transmitter And The Buggy

    Pairing Your Transmitter and the Buggy ON/OFF LED Indicator Your XMODS operates at a frequency of 2.4Ghz. Before driving for the first time, you must pair the transmitter and buggy. The pairing should be made before mounting the body. 1. Turn on the transmitter. The LED indicator on the transmitter flashes slowly.

  • Page 8: Mounting The Buggy Body On The Chassis

    Mounting the Buggy Body on the Chassis Recommended Decal Placement 1. Place the buggy body on the chassis so that the body poles fit through the holes on the front and rear. 2. Clip the body clips onto the body poles. Body Clip Body Pole Body Pole...

  • Page 9: Driving Your Buggy And Adjusting Trim

    Driving Your Buggy and Adjusting Trim After you turn on both transmitter and buggy, squeeze the trigger to move forward and push the trigger away from the handle to go in reverse. If your buggy does not drive straight when you release the steering wheel, determine if the buggy steers too far right or left, and then adjust the trim: 1.

  • Page 10: Xmods Upgrades

    Note: • Handle your XMODS buggy and transmitter carefully and do not drop them. Keep away from dust and dirt. Wipe your buggy and transmitter with a damp cloth occasionally to keep them looking new. • Use and store only in normal temperature environments.

  • Page 11: Fcc Information

    FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 12: Limited Warranty

    Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES.
  • Page 13 EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF...
  • Page 14 Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. XMODS is a trademark used by RadioShack Corporation. 09A13 ©2013. RadioShack Corporation. All rights reserved. 6000940 RadioShack is a registered trademark used by RadioShack Corporation.
