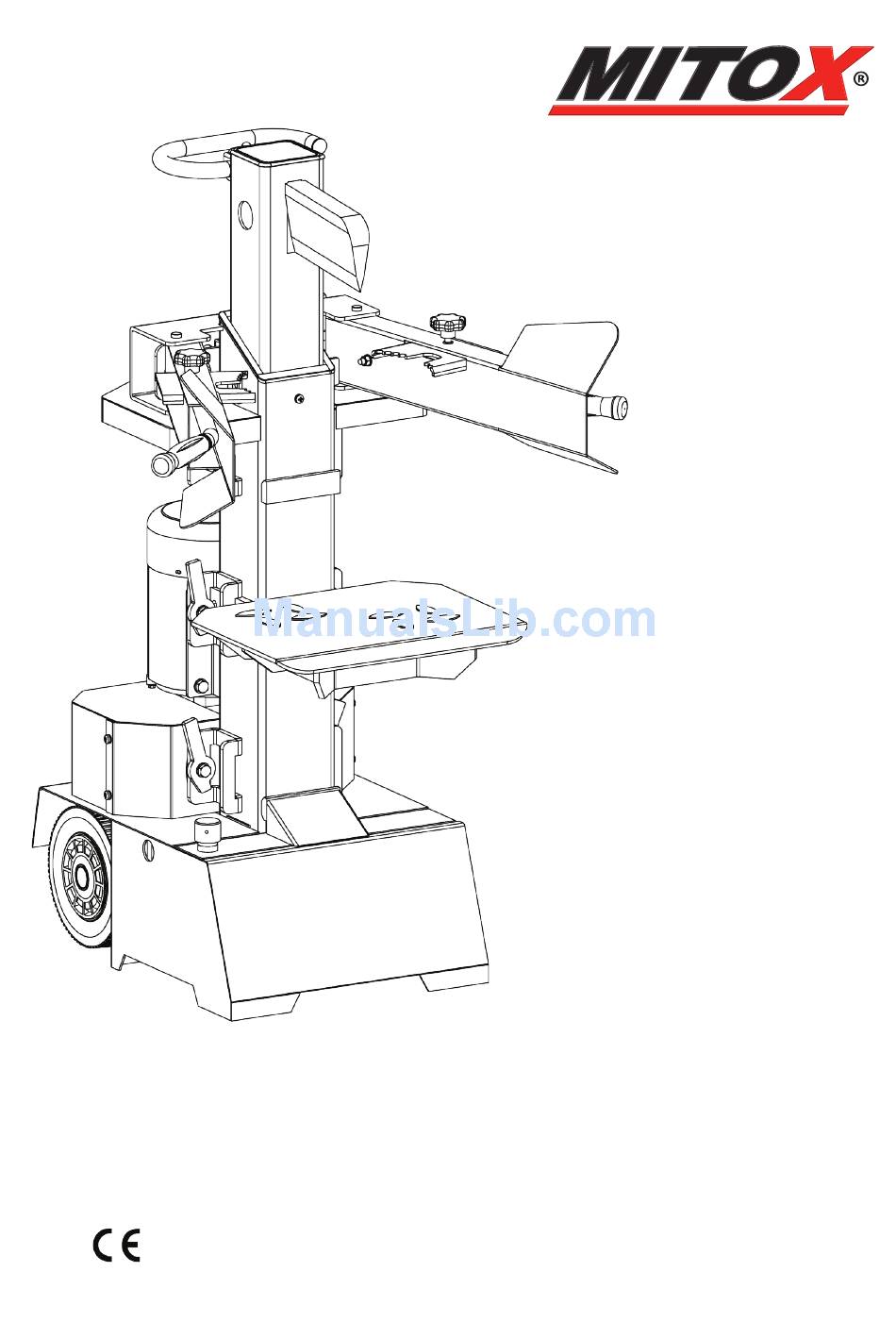

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts LS700 7 Ton Electric Logsplitter Read this manual carefully before operating the machine Original Instructions Version April 13...
  • Page 2: Safety Warnings & Cautions

    LS700 7 Ton Electric Logsplitter SAFETY WARNINGS & EXPLANATION OF SYMBOLS ON THE MACHINE UNDERSTAND YOUR LOG SPLITTER Read and understand the owner’s manual and labels affixed to the log splitter. Learn its application and limitations as well as the specific potential hazards peculiar to it.
  • Page 3 LS700 7 Ton Electric Logsplitter KEEP BYSTANDERS AWAY Allow only one person to load and operate the log splitter. Always keep bystanders, including visitors, children and pets away from the work area, especially when the log splitter is under operation. Only the operator should stand near the machine and only within the safe operating area prescribed in this manual.
  • Page 4: Table Of Contents

    LS700 7 Ton Electric Logsplitter MAINTAIN YOUR LOG SPLITTER WITH CARE Always clean the unit after each use. Keep the log splitter clean for best and safest performance. Follow the instructions for lubricating. Inspect all hydraulic seals, hoses and couplers for leaks prior to use. Control levers and power switch must be kept clean, dry and free from oil and grease at all times.
  • Page 5: Application Conditions

    LS700 7 Ton Electric Logsplitter DESCRIPTION OF MACHINE The log splitter is designed to be used in a domestic application. The log splitter is designed exclusively for the following applications: -Splitting freshly cut timber that does not exceed the dimensions specified in the technical data.
  • Page 6: Contents Of Container

    LS700 7 Ton Electric Logsplitter CONTENTS OF THE CONTAINER A. Log Splitter Frame …………........1 set B. Control Lever and Guard Assy........2sets C. Removable Support Table..…........1 pc D. Owner’s Manual ………..…….….....1 pc E. Cross Splitter ………..…….…......1 pc SET UP AND PREPARATION FOR OPERATION 1.
  • Page 7: Delivering Log Splitter To Work Site

    LS700 7 Ton Electric Logsplitter 3. Familiarize yourself with the controls and features of this log splitter as shown in the illustrations. 1. Transport Handle 2. Ram Travel Adjusting Rod 3. Split Wedge 4. Ram 5. Switchbox & Cable 6. Control Levers Connection Bracket 7.
  • Page 8: Log Splitter Operation

    LS700 7 Ton Electric Logsplitter LOG SPLITTER OPERATION 1. Plan your work site. Work safely and save effort by planning your work before hand. Have your logs positioned where they can be easily reached. Have a site located to stack the split wood or load it onto a nearby truck or other carrier.
  • Page 9: Replacing Hydraulic Oil

    LS700 7 Ton Electric Logsplitter 10. Place log onto splitter. Place the log onto the support table vertically and sitting flat on the support table. Be sure the wedge and support table will contact the log squarely on the ends. Never attempt to split a log at an angle.
  • Page 10: Sharpening Wedge

    LS700 7 Ton Electric Logsplitter Read dipstick to determine the maximum and minimum oil level. To check the hydraulic oil, unscrew the oil filler plug and wipe the dip stick rod with a clean cloth. Next insert the dip stick into oil tank without screwing it into the tank.
  • Page 11: Parts Schematic

    LS700 7 Ton Electric Logsplitter Original Instructions Version April 13...
  • Page 12 LS700 7 Ton Electric Logsplitter PART No DESCRIPTION PART No DESCRIPTION MILS700-01 WORK TABLE MILS700-45 VALVE TUBE NOZZLE MILS700-02 ROUND COVER MILS700-46 VALVE INJECTION NOZZLE MILS700-03 OPERATE HANDLE MILS700-47 OIL RETURN PIPE MILS700-04 LEVER HANDLE MILS700-48 CA VALVE MILS700-05 R/H GUARD ASSY...
  • Page 13 LS700 7 Ton Electric Logsplitter Original Instructions Version April 13...
  • Page 14: Declaration Of Conformity

    LS700 7 Ton Electric Logsplitter EC Declaration of Conformity We herewith declare that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
  • Page 15 LS700 7 Ton Electric Logsplitter For more information on the Mitox® range of garden products please visit our website: www.mitoxgm.co.uk Original Instructions Version April 13...
  • Page 16 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and/or consequential damages, and/or interest charges either directly or indirectly.
