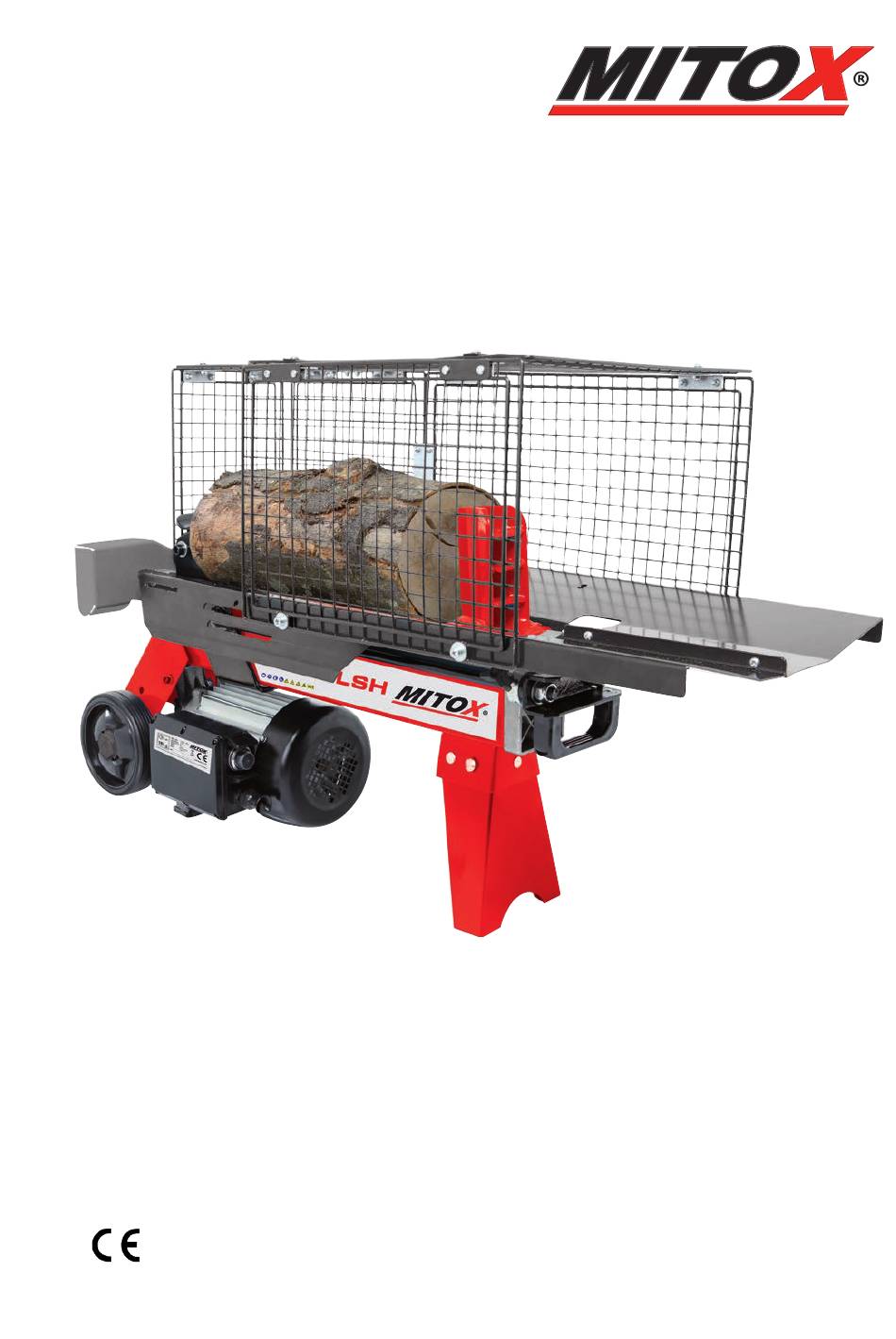

- Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 41 LSH Electric Logsplitter (Art No. MILS20) Read this manual carefully before operating the machine Original Instructions Version August 19...
- Page 2 41 LSH Electric Logsplitter SAFETY WARNINGS & EXPLANATION OF SYMBOLS ON THE MACHINE UNDERSTAND YOUR LOG SPLITTER Read and understand the owner’s manual and labels affixed to the log splitter. Learn its application and limitations as well as the specific potential hazards peculiar to it.
- Page 3 Don’t leave the tool until it has come to a complete stop. DISCONNECT POWER Unplug the log splitter when not in use, before making adjustments, changing parts, cleaning or working on the log splitter. Consult your local Mitox dealer before servicing. Original Instructions Version August 19...
-
Page 4: Table Of Contents
41 LSH Electric Logsplitter PROTECT THE ENVIRONMENT Take used oil to an authorized collection point or follow the stipulations in the country where the log splitter is used. Do not discharge into drains, soil or water. MAINTAIN YOUR LOG SPLITTER WITH CARE Always clean the unit after each use. -
Page 5: Specifications
41 LSH Electric Logsplitter DESCRIPTION OF MACHINE The log splitter is designed to be used in a domestic application. The log splitter is designed exclusively for the following applications: -Splitting freshly cut timber that does not exceed the dimensions specified in the technical data. - Page 6 41 LSH Electric Logsplitter 1. Guard 9. Support surface 2. Riving knife 10. Pressure plate 3. Tray table for split logs 11. Control lever protection 12. Control lever 4. Handle 13. Motor 5. Trunk guide plate 14. Transport wheels 6. Triggering button 7.
-
Page 7: Log Splitter Operation
41 LSH Electric Logsplitter M6 × 16 × 2 M6 × 12 × 1 M6 × 12 × 2 M6 × 12 × 1 M6 × 12 × 1 M6 × 12 × 1 M6 × 12 × 1 M6 × 12 ×... - Page 8 41 LSH Electric Logsplitter 4. Intended use The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kindcaused as a result of this.
- Page 9 41 LSH Electric Logsplitter • Operating personnel must be at least 18 years of age. Trainees must be at least 16 years of age, but may only operate the machine under adult supervision. • Children may not work with this device •...
- Page 10 41 LSH Electric Logsplitter • Avoid accidental starts of the machine: Do not press the start button while inserting the plug into the socket. • Use the tools recommended in this manual to obtain the best results from your machine.
- Page 11 41 LSH Electric Logsplitter 9.2 Installing the protective guard (L) (enclosed accessories bag b) 1. Fit the protective guard (L) to the trunk guide plate (5) and use the enclosed cylindrical screws and nuts to affix it. 2. Undo the cylindrical screw with washer that is located on the wheel bracket.
- Page 12 41 LSH Electric Logsplitter 5. Now guide the open end of the strut (N) between the screw and the foot bracket, tighten the screw slightly. 6. Repeat the process on the other side. 7. Align both tables in relation to each other and use the Phillips head screws and nuts (e) to affix them.
- Page 13 41 LSH Electric Logsplitter 3. Now fasten the guards (E + F) on the top. Fasten them with eight Phillips head screws, clamping brackets and nuts. 4. Fasten the guards (E + F) together using two Phillips head screws, clamping brackets and nuts.
- Page 14 41 LSH Electric Logsplitter 10.2 Ventilation screw Before operating your machine, the bleed screw (7) should be loosened by some rotations until air can go in and out of the oil tank smoothly. Failed to loosen the bleed screw will keep the sealed air in hydraulic system being compressed after being decompressed.
- Page 15 41 LSH Electric Logsplitter 10.6 Jammed log Do not try to knock the jammed log off. Knocking about will damage the machine or may launch the logand cause accident. 1. Release both controls. 2. After the log pusher moves back and completely...
- Page 16 41 LSH Electric Logsplitter AC motor 230 V/ 50 Hz Mains voltage 230 Volt / 50 Hz. • The mains connection and the extension cable have to be three-core cables = P + N + SL. - (1/N/ PE). • Extension cables must have a minimum cross-section of 1.5 mm².
- Page 17 41 LSH Electric Logsplitter When must the oil be changed? Change the oil after 150 working hours. Oil change. 1. Move the log splitter into the start position and pull out the mains plug. 2. Undo the oil drain screw with dipstick (8) and put it to one side.
- Page 18 41 LSH Electric Logsplitter Dispose of the used oil in a correct manner at a public collection facility. It is prohibited to drop old oil on the ground or to mix it with waste. We recommend oil from the HLP 32 range.
-
Page 19: Sharpening Wedge
41 LSH Electric Logsplitter 17. Troubleshooting The table below contains a list of error symptoms and explains what you can do to solve the problem if your tool fails to work properly. If the problem persists after working through the list, please contact your nearest service workshop. - Page 20 41 LSH Electric Logsplitter Original Instructions Version August 19...
- Page 21 41 LSH Electric Logsplitter PART No DESCRIPTION MI3905201026 NUT - (LEVER) MI3905201027 LEVER MI3905201073 GUARD MI3905201057 HOUSING WITH CONTROL VALVE MI5905206013 O-RING MI3905201028 CONTROL VALVE ASSEMBLY MI5905206014 O-RING MI5905206016 SPRING MI3905201023 PISTON SET MI3905201029 OIL CAP MI3905202142 SEAL MI16040394 BLEED SCREW...
- Page 22 41 LSH Electric Logsplitter PART No DESCRIPTION MI3905201040 MOTOR HOOD MI3905201044 FOOT MI5905206012 CABLE WITH PLUG MI02798114 SCREW MI5905211001 SWITCH BOX COVER MI3905201042 SEAL MI3905201043 CLAMP MI52017101 CAPACITOR 25UF MI16040424 CAPACITOR 30UF MI3905201046 SWITCH MI5905211002 SWITCH BOX COVER MI3905201048 RUBBER FOOT L/H...
-
Page 23: Declaration Of Conformity
41 LSH Electric Logsplitter EC Declaration of Conformity We herewith declare that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us. - Page 24 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
