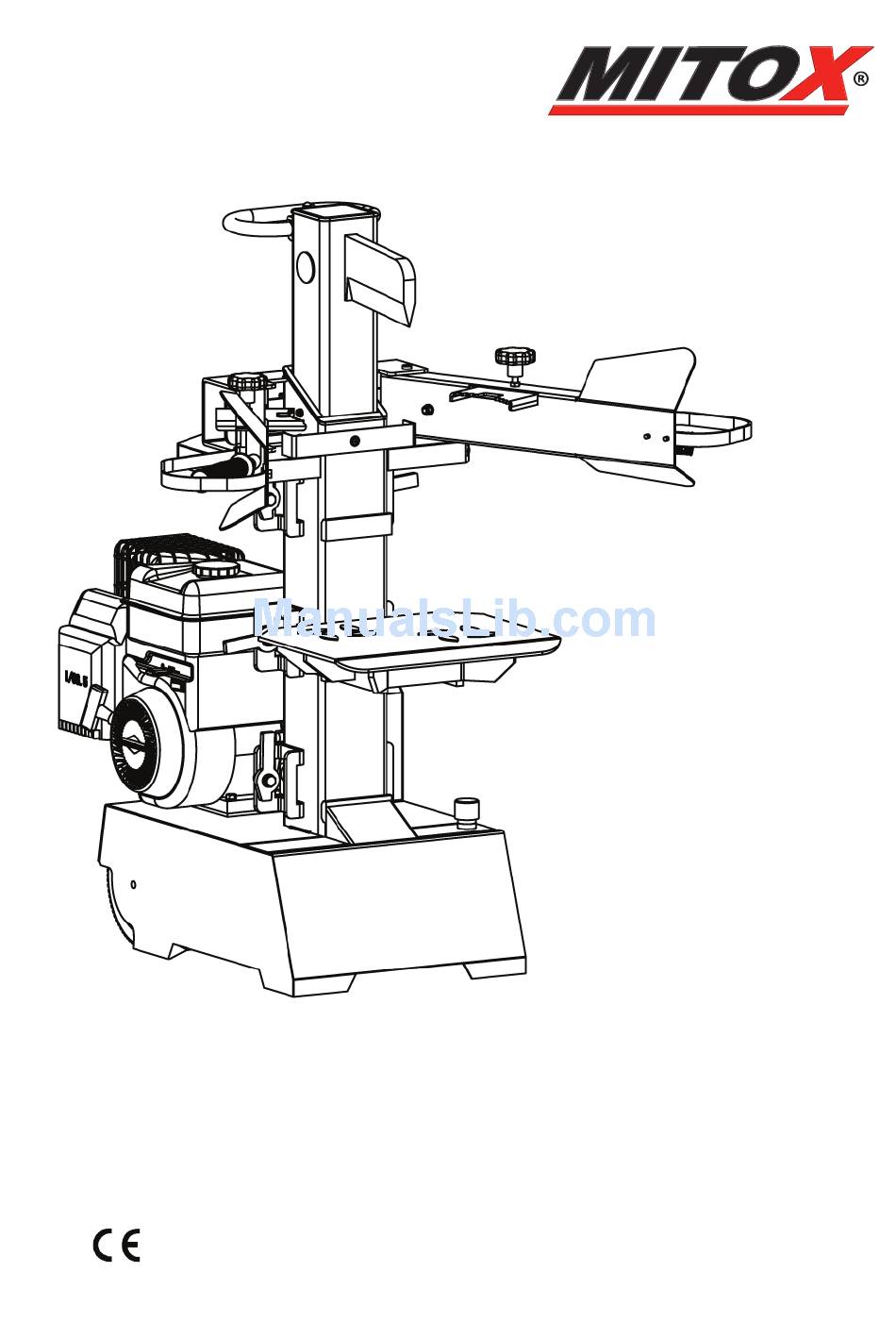

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts LS700BS 7 Ton Petrol Logsplitter Read this manual carefully before operating the machine Original Instructions Version April 13...
  • Page 2 LS700BS 7 Ton Petrol Logsplitter SAFETY WARNINGS & EXPLANATION OF SYMBOLS ON THE MACHINE UNDERSTAND YOUR LOG SPLITTER Read and understand the owner’s manual and labels affixed to the log splitter. Learn its application and limitations as well as the specific potential hazards peculiar to it.
  • Page 3 LS700BS 7 Ton Petrol Logsplitter DON’T OVERREACH Keep a proper footing and balance at all times. Never stand on the log splitter. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted. Do not store anything above or near the log splitter where anyone might stand on the tool to reach it.

  • Page 4: Table Of Contents

    LS700BS 7 Ton Petrol Logsplitter UNDERSTAND YOUR MACHINE Read and understand the operator’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards peculiar to it. Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

  • Page 5: Application Conditions

    LS700BS 7 Ton Petrol Logsplitter DESCRIPTION OF MACHINE The log splitter is designed to be used in a domestic application. The log splitter is designed exclusively for the following applications: -Splitting freshly cut timber that does not exceed the dimensions specified in the technical data.
  • Page 6 LS700BS 7 Ton Petrol Logsplitter FUEL SAFETY Fuel is highly flammable, and its vapours can explode if ignited. Take precautions when using the log splitter to reduce the chance of serious personal injury. When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor area. Do not smoke, or allow sparks, open flames or other sources of ignition near the area while adding fuel or operating the unit.

  • Page 7: Set Up And Preparation For Operation

    LS700BS 7 Ton Petrol Logsplitter CONTENTS OF THE CONTAINER A. Log Splitter Frame …………........1 set B. Control Lever and Guard Assy........2sets C. Removable Support Table..….......1 pc D. Owner’s Manual ………..…….….....1 pc E. Cross Splitter ………..…….…......1 pc SET UP AND PREPARATION FOR OPERATION 1.
  • Page 8 LS700BS 7 Ton Petrol Logsplitter 3. Familiarize yourself with the controls and features of this log splitter as shown in the illustrations. 1. Transport Handle 2. Ram Travel Adjusting Rod 3. Split Wedge 4. Ram 5. Control Levers Connection Bracket 6.

  • Page 9: Log Splitter Operation

    LS700BS 7 Ton Petrol Logsplitter LOG SPLITTER OPERATION 1. Plan your work site. Work safely and save effort by planning your work before hand. Have your logs positioned where they can be easily reached. Have a site located to stack the split wood or load it onto a nearby truck or other carrier.

  • Page 10: Replacing Hydraulic Oil

    LS700BS 7 Ton Petrol Logsplitter 9. Place log onto splitter. Place the log onto the support table vertically and sitting flat on the support table. Be sure the wedge and support table will contact the log squarely on the ends. Never attempt to split a log at an angle.

  • Page 11: Sharpening Wedge

    LS700BS 7 Ton Petrol Logsplitter Read dipstick to determine the maximum and minimum oil level. To check the hydraulic oil, unscrew the oil filler plug and wipe the dip stick rod with a clean cloth. Next insert the dip stick into oil tank without screwing it into the tank.
  • Page 12 LS700BS 7 Ton Petrol Logsplitter Original Instructions Version April 13...
  • Page 13 LS700BS 7 Ton Petrol Logsplitter PART No DESCRIPTION MICCQ01 UPRIGHT TUBE WELDMENT - B&S MIGB/T41-2000 THIN NUT MICCQ62 PUMP GUARD MIGB/T95-1987 WASHER M8 MIGG/T93-1987 SPRING WASHER M6 MICCA.09.001 CONTROL LINK PLATE MIGB/T822-2000 SCREW M6X12 MIGB/T802 MIGB3452.1-92 O-RING 23.6X3.55G MICCA.07.109(0) DRAW ROD LOCK COVER MICCA.00.101...

  • Page 14: Declaration Of Conformity

    LS700BS 7 Ton Petrol Logsplitter EC Declaration of Conformity We herewith declare that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
  • Page 15 LS700BS 7 Ton Petrol Logsplitter For more information on the Mitox® range of garden products please visit our website: www.mitoxgm.co.uk Original Instructions Version April 13...
  • Page 16 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and/or consequential damages, and/or interest charges either directly or indirectly.
