Yamaha CD-S3000 Owner's Manual

Compact disc player.
Hide thumbs

Advertisement

U
Compact Disc Player
Lecteur Compact Disc
OWNER'S MANUAL
MODE D'EMPLOI

Advertisement

   Also See for Yamaha CD-S3000

   Related Manuals for Yamaha CD-S3000

   Summary of Contents for Yamaha CD-S3000

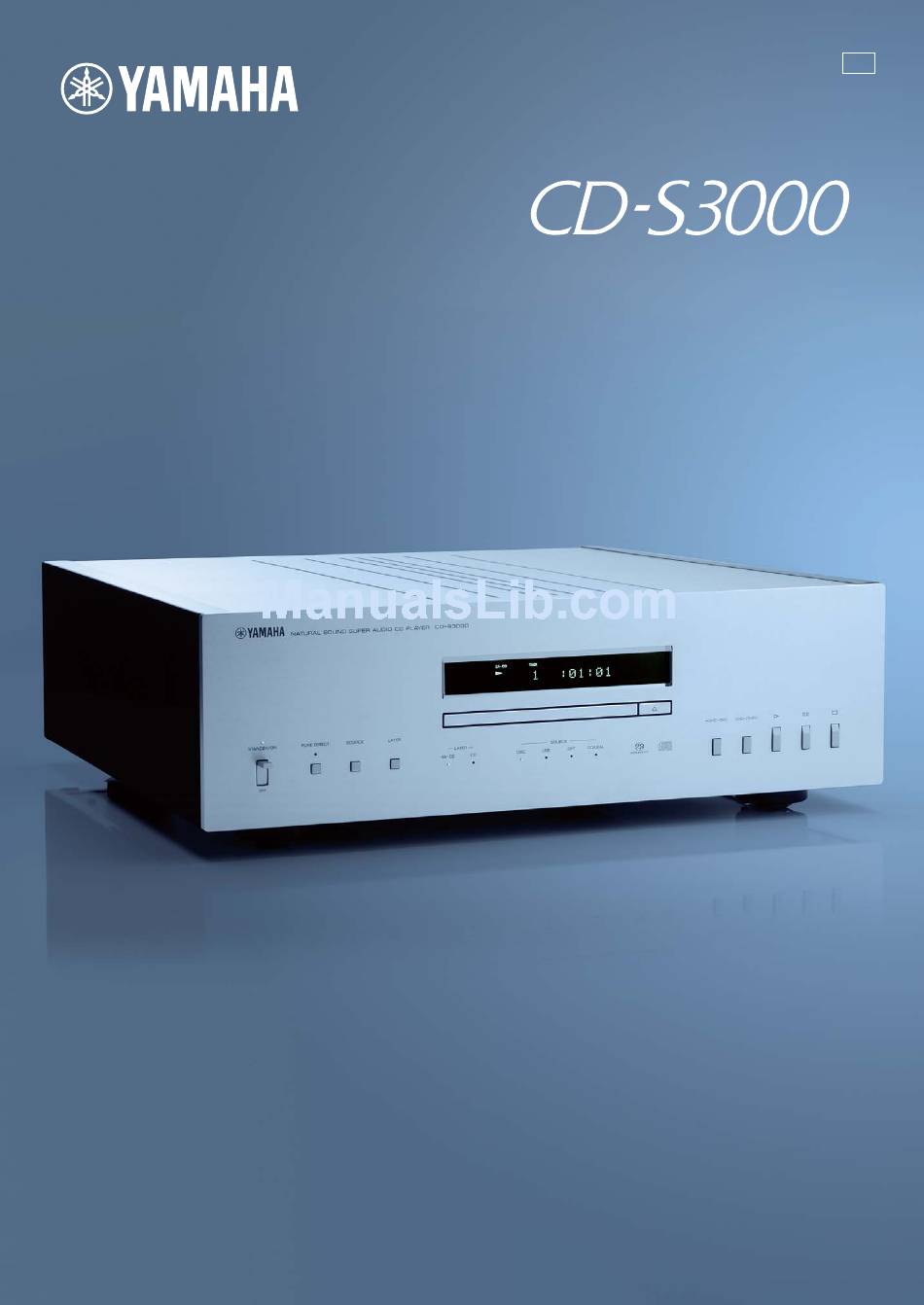

  • Page 1

    Compact Disc Player Lecteur Compact Disc OWNER’S MANUAL MODE D’EMPLOI...

  • Page 2

    The technician performs exhaustive listening tests and every component is considered, in order to finally achieve the ideal sound. Yamaha’s tradition of audio quality stretches back over 125 years, and continues to live on in all Yamaha products today.

  • Page 3

    NS-10M Studio Monitor Speaker Became of the most popular studio monitors in the world. A-1 Integrated Amplifier PX-2 Turntable Yamaha’s first straight arm turntable. B-6 Power Amplifier Pyramid-shaped power amplifier. GT-2000/L Turntable First CD Player (CD-1) introduced in 1983 B-2x Power Amplifier...

  • Page 4: Table Of Contents

    CD reproduction ◆ Independent power supplies with digital and analog completely separated ◆ Exclusive Yamaha loading mechanism and high precision CD drive ◆ Left-right symmetrical design with rigid, stable construction ◆ Pure Direct ◆ Super sound from Super Audio CDs ◆...

  • Page 5: Controls And Functions

    CONTROLS AND FUNCTIONS Controls and functions In this chapter, you will learn the controls and functions of CD-S3000.

  • Page 6

    Controls and functions ■ Front panel (pages 6 to 9) SA-CD HYBRID TRACK TOTAL REMAIN PROG SHUFFLE REP OFF S ALL A-B STANDBY/ON PURE DIRECT SOURCE LAYER LAYER SOURCE SA-CD DISC OPTICAL COAXIAL 1 STANDBY/ON/OFF switch 2 STANDBY/ON indicator Turns on or off this unit. Lit brightly: STANDBY/ON (upper position): Shows that the power of the unit is ON.

  • Page 7

    5 SOURCE key Selects the audio source to be played back. Each time you press this key, the audio source is switched. (coaxial digital input) (optical digital input) The audio source setting is retained even if you turn off this unit.

  • Page 8

    Controls and functions ■ Front panel (pages 6 to 9) SA-CD HYBRID TRACK TOTAL REMAIN PROG SHUFFLE REP OFF S ALL STANDBY/ON PURE DIRECT SOURCE LAYER LAYER SOURCE SA-CD DISC OPTICAL COAXIAL 9 Disc tray (Skip/Search backward) key Loads a disc. Press the key once to skip back to the beginning of the current track.

  • Page 9

    F Display The brightness can be adjusted with the DIMMER key on the remote control (page 12). (playback) / (pause) indicator Lights in the playback/pause mode. H Disc type indicator Indicates the type (SA-CD/CD/HYBRID) of the disc in the disc tray. I Time display mode indicator Indicates the time display mode of the display.

  • Page 10: Rear Panel

    Controls and functions ■ Rear panel OPTICAL COAXIAL OPTIC BALANCED OUT ANALOG OUT BALANCED OUT DIGITAL IN SYSTEM CONNECTOR REMOTE +HOT - COLD AC IN 8 SYSTEM CONNECTOR See page 18 for connection information. Use this connector to connect a product testing device for servicing.

  • Page 11

    OPTICAL COAXIAL DIGITAL OUT A Foot The feet of this unit include built-in spikes. Using the spikes can reduce the effect of vibrations on the set. When using the spikes, remove the transport tape, then remove the magnet foot by pulling it. Spike Transport tape...

  • Page 12: Remote Control

    Controls and functions ■ Remote control OPEN/CLOSE key Opens or closes the disc tray. 4 p AMP key Turns the Yamaha amplifier ON or switches it to STANDBY mode. OPEN/CLOSE Note Some Yamaha amplifiers cannot be controlled with the DIMMER PURE DIRECT DISPLAY p AMP key of this remote control.

  • Page 13

    When this unit is in the PURE DIRECT mode: Note • The PURE DIRECT indicator lights. Some Yamaha amplifiers cannot be controlled with the keys • No signal is output from the DIGITAL OUT of this remote control. (OPTICAL and COAXIAL) jacks on the rear panel (page 10).

  • Page 14: Program Playback

    Controls and functions ■ Program playback ■ Setting the DPLL (Digital Phased Lock In the program playback mode, you can play back tracks Loop) bandwidth in a programmed sequence. The audio DAC (ES9018) of this unit employs DPLL to generate accurate clock signals synchronized with the Notes clock of the input digital audio signal.

  • Page 15

    ■ Setting the AUTO POWER STANDBY Press ENTER. function The setting value flashes for 3 seconds, then the unit The AUTO POWER STANDBY function can be set to resumes to normal mode. ON or OFF. When set to ON, if the unit is not operated for To cancel the setting, press CLEAR.

  • Page 16

    Controls and functions ■ Installing batteries in the remote control Remove the battery compartment cover. Insert the two batteries (AAA, R03, UM-4) according to the polarity markings (+ and -) on the inside of the battery compartment. Reinstall the battery compartment cover.

  • Page 17: Connections

    Connections In this section, you will make connections between CD-S3000 and your amplifier.

  • Page 18

    Connections OPTICAL COAXIAL BALANCED OUT ANALOG OUT BALANCED OUT DIGITAL IN SYSTEM CONNECTOR REMOTE +HOT - COLD AC IN If your amplifier is equipped with XLR balanced input jacks, we recommend balanced connection for optimum audio performance. When the SA-CD layer is played, the audio signals are output only from the BALANCED OUT and ANALOG OUT jacks.

  • Page 19

    OPTICAL COAXIAL OPTICAL COAXIAL BALANCED OUT DIGITAL IN DIGITAL OUT LINK CONTROL AC IN Component equipped with a AV receiver equipped with a digital output (PCM) jack digital input jack Note Only PCM signals can be input to the DIGITAL IN (OPTICAL/COAXIAL) jacks of this unit.

  • Page 20: Connecting The Power Cable

    AC IN 3: cold When connecting, be sure to match the pins and insert the Rear panel of CD-S3000 connector of the “female” XLR balanced cable. When disconnecting, pull out the “female” XLR balanced cable while pressing down the latch lock on the plug.

  • Page 21

    REMOTE IN jack of the other component to the REMOTE IN/OUT jacks of this unit, using cables with monaural miniplugs. Up to three Yamaha components (including this unit) can be connected. Rear panel of CD-S3000 Rear panel of CD-S3000...

  • Page 22: Playback Of Music Files Stored On A Pc

    PC. • The “Yamaha Steinberg USB Driver” is subject to change • Operations may not be executed correctly if the PC is connected without prior notice. For details and the latest information, refer to this unit before the driver is installed.

  • Page 23

    • The music files stored on a PC cannot be controlled from this unit or the remote control of this unit. Operate them on the PC. Set the audio output destination of the PC to “Yamaha CD Player.” With Windows OS: Control Panel → Sound → [Playback] tab With Mac OS: System Preferences →...

  • Page 25: Specifications

    Specifications In this section, you will find technical specifications for CD-S3000.

  • Page 26

    • Output Level (1 kHz, 0 dB) Taking care of this unit SA-CD/CD ..............2.0 ± 0.3 V Polish finish on the side panels Use of Yamaha Unicon cloth (sold separately) is LASER DIODE PROPERTIES recommended. For heavy dirt, use Yamaha Piano • Wavelength Unicon (sold separately).

  • Page 27: Playable Disc Format

    Playable disc format ■ Supported disc types CD-R, CD-RW digital audio discs This unit is designed to play back compact discs bearing the marks shown below. Never attempt to load any other types of discs into this unit. This unit can also play back 8- cm (3-inch) compact discs.

  • Page 28: Handling Compact Discs

    Playable disc format ■ About MP3 and WMA discs ■ Handling compact discs You can play back MP3 and WMA files recorded on a • Always handle a disc with care so that its surface is not CD-R or CD-RW with similar uses as a music CD. scratched.

  • Page 29: Troubleshooting

    Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off this unit, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center. Problem...

  • Page 30

    “USB” while the music application and start playback. music application is running on the PC. The dedicated “Yamaha Steinberg USB Driver” Install the “Yamaha Steinberg USB Driver” has not been installed correctly. again, following the correct procedure.

  • Page 31

    Status No disc is set on the disc tray. NO DISC The dedicated “Yamaha Steinberg USB Driver” has not been installed correctly. Or, the audio output Check Cable of the computer has not been set to “Yamaha CD Player.” The audio signal from the computer cannot be recognized.

  • Page 32

    © 2013 Yamaha Corporation Printed in Malaysia ZK20370...

  • Page 33

    NOTICE • “foobar2000” is not Yamaha product. Yamaha cannot be held responsible for any damages arising out of the use of the software. • “foobar2000” is installable only on Windows computers. The procedures described in this documentation are based on Windows 7.

  • Page 34

    Double-click the downloaded file “foobar2000_v*.*.*.exe” to start installation. Follow the on-screen instructions to install the software. Installing Yamaha Steinberg USB Driver and configuring its settings Download “Yamaha Steinberg USB Driver” at the following Yamaha website. http://download.yamaha.com/ Install “Yamaha Steinberg USB Driver” on your computer, connect the unit to your computer, then open its control panel.

  • Page 35: Installing “asio Support” Component

    Installing the “ASIO support” component Download the “ASIO support” component (foo_out_asio) at the following website. http://www.foobar2000.org/components/view/ foo_out_asio  Run foobar2000, then select [File] [Preferences].  Click [Components] [Install]. Select the downloaded component “foo_out_asio.fb2k-component”, then click [Open]. Playing back DSD audio using foobar2000...

  • Page 36

    Click [Apply]. In the dialog box, click [OK] to restart foolbar2000.  If foolbar2000 is restarted, click [File]  [Preferences] [Components], then confirm “ASIO support” is listed in “Installed components”. Installation of the “ASIO support” component is now completed. Playing back DSD audio using foobar2000...

  • Page 37

    Installing the “Super Audio CD Decoder” component Download the latest version of “foo_input_sacd- 0.*.*.zip” at the following website. http://sourceforge.net/projects/sacddecoder/ files/foo_input_sacd/ Uncompress the downloaded file “foo_input_sacd-0.*.*.zip”. In the uncompressed folder, double-click “ASIOProxyInstall-0.*.*.exe” to start installation. Follow the on-screen instructions to install the component.

  • Page 38

    Select the downloaded component “foo_input_sacd-0.*.*.zip”, then click [Open]. Click [Apply]. In the dialog box, click [OK] to restart foolbar2000.  If foolbar2000 is restarted, click [File]  [Preferences] [Components], then confirm “Super Audio CD Decoder” is listed in “Installed components”. Installation of the “Super Audio CD Decoder”...

  • Page 39

    Click [Output] [ASIO], then double-click “foo_dsd_asio” in “ASIO drivers”. Configure the following settings. ASIO Driver: Yamaha Steinberg USB ASIO DSD Playback Method: ASIO Native Fs: DSD64 (normal speed playback) or DSD128 (double speed playback) Click [X] (close button) to close the window.

  • Page 40

    Compact Disc Player Lecteur Compact Disc SAFETY BROCHURE BROCHURE SUR LA SECURITE...

  • Page 41: Important Safety Instructions

    We Want You Listening For A Lifetime Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion –...

  • Page 42

    Modifications not expressly approved by following measures: Yamaha may void your authority, granted by the FCC, to use the product. Relocate either this product or the device that is being 2 IMPORTANT: When connecting this product to affected by the interference.

  • Page 43

    12 Only voltage specified on this unit must be used. Using this of power. unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha WARNING will not be held responsible for any damage resulting from use TO REDUCE THE RISK OF FIRE OR ELECTRIC of this unit with a voltage other than specified.

  • Page 44

    ■ Handling the remote control CAUTION • The area between the remote control and this unit must be clear Use of controls or adjustments or performance of procedures of large obstacles. other than those specified herein may result in hazardous •...

  • Page 45

    © 2013 Yamaha Corporation Printed in Malaysia ZG15910...
