Chapter 4. ZIO Control Panel
The ZIO Control Panel is a GUI application that allows most features of ZIO to be tested without
writing code.
When the control panel is started, the application prompts for the serial device name of the ZIO
motherboard, as show in Figure 4.1, "Serial Device Input". Select the serial device and click on OK .
The control panel window as shown in Figure 4.2, "Control Panel Screenshot" is displayed. The
control panel has multiple sub-panels, one for each module.

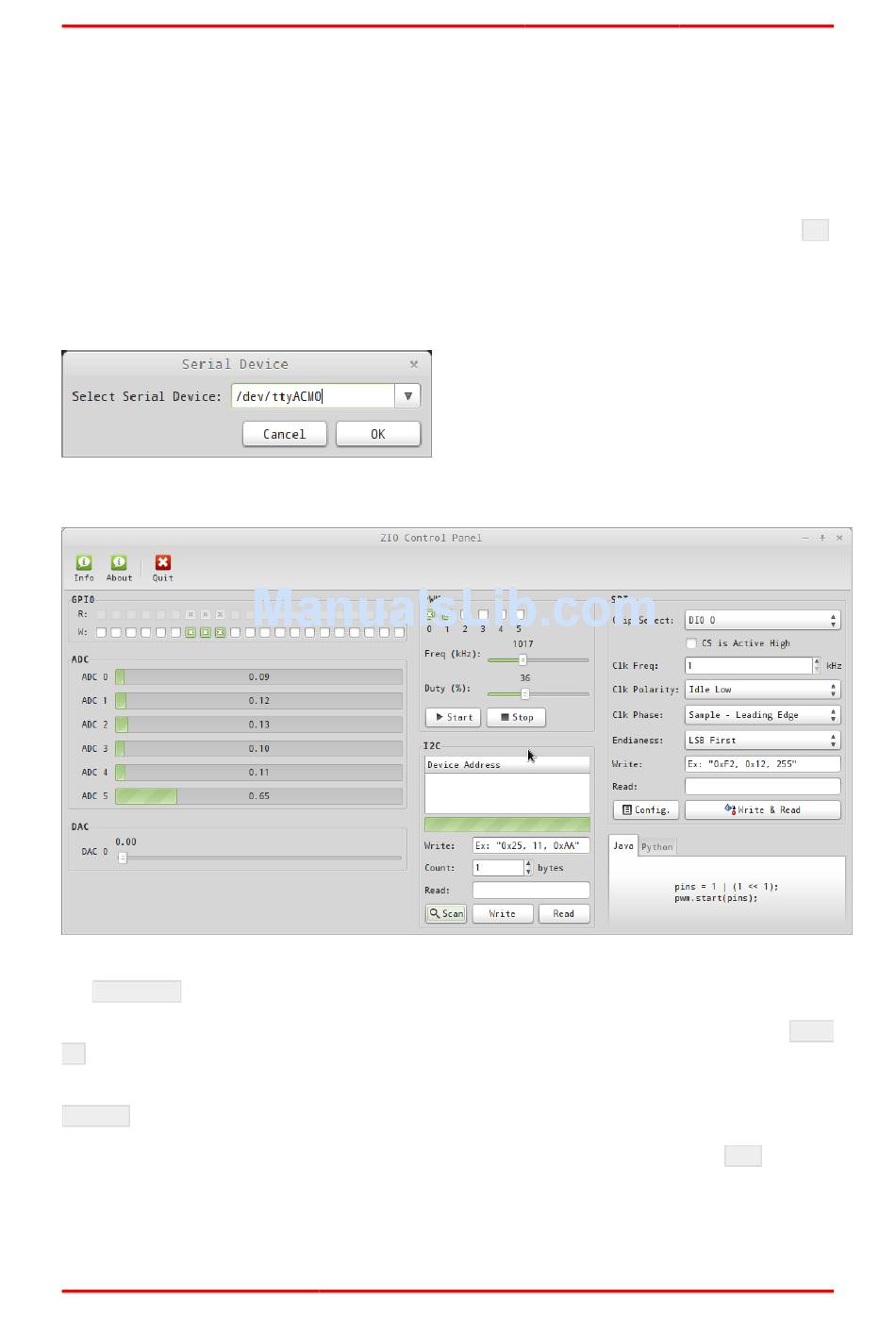

Figure 4.1. Serial Device Input
Figure 4.2. Control Panel Screenshot
Controlling GPIO Outputs.
the GPIO Out panel.
Reading GPIO Inputs.
In panel.
Reading Sensor Inputs.
Sensor panel.
Controlling PWM Outputs. PWM signals can generated using the controls in the PWM panel,
1. Select the PWM channels, by toggling the checkboxes.
2. Set the PWM frequency, in the frequency slider.
3. Set the PWM duty cycle, in the duty cycle slider.
The GPIO outputs can be controlled by toggling the check box on
The GPIO inputs can be read by inspecting the check box on the GPIO
The Sensor inputs can be read by inspecting the progress bar on the
