ZIO, Motherboard User Manual Rev. 2.0

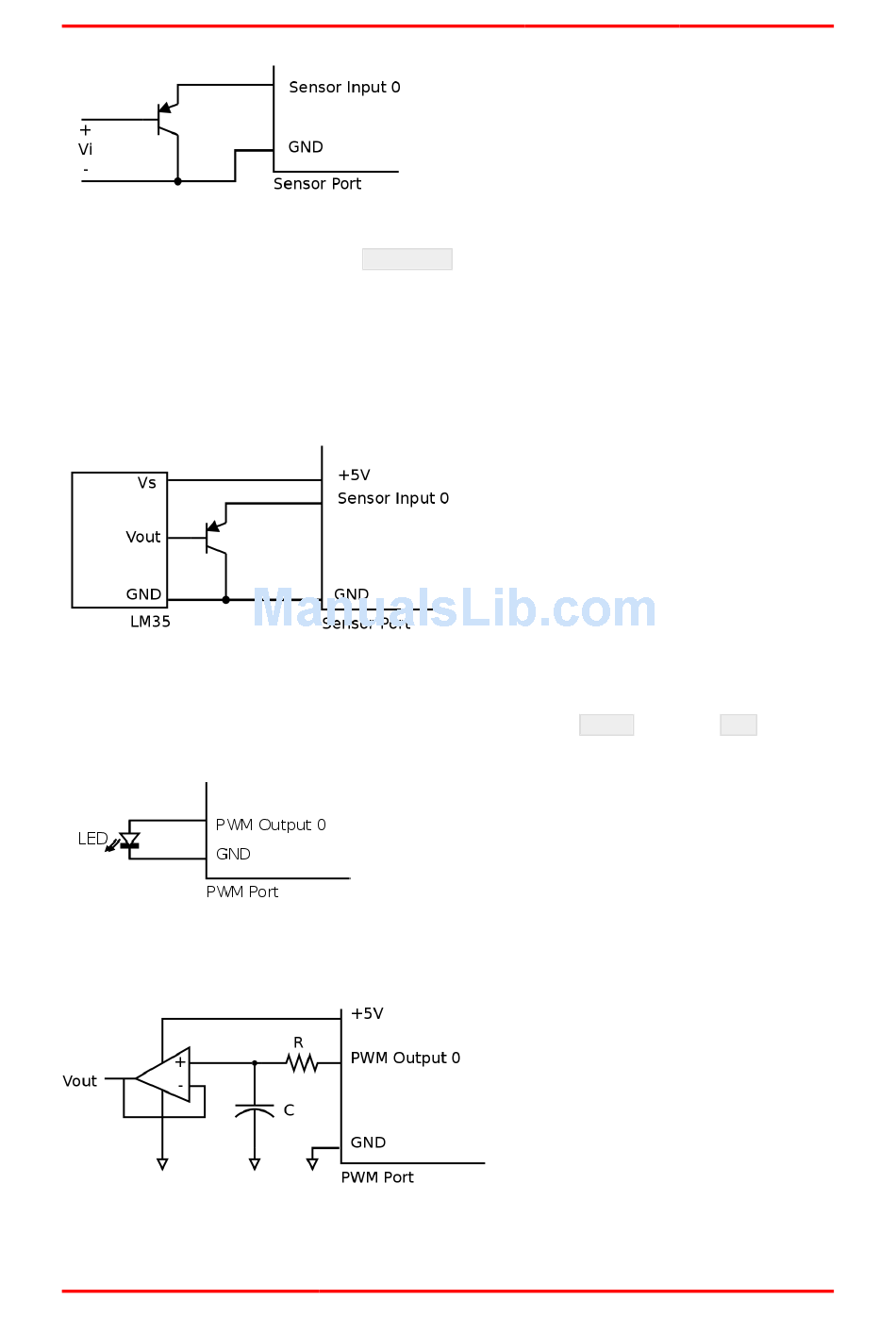

This is a PNP emitter follower, where the emitter voltage is almost equal to the base voltage. For
a V range of 0 to 4.4V, the voltage at Sensor 0 is (V + 0.6). To compensate for the added 0.6V,
i i
subtract 0.6 to the obtained voltage.
Temperature Sensor. The LM35 is an example of an non-resistive sensor. The LM35 produces a
voltage that is proportional to the temperature. The voltage output by the LM35, increases by 10mV
o o
for every degree Celsius rise in temperature. As the temperature changes from 2 C to 150 C, the
voltage rises from 0V to 1.5V. The LM35 can be connected to the Sensor port using the transistor
buffer and is shown in the following circuit.
5. PWM Port
LED Brightness Control. An LED can be connected between the PWM N signal and GND as shown
in the following diagram. When the duty cycle is varied the LED brightness varies accordingly.
One Bit DAC. An analog output can be generated from the PWM signal, using a low pass filter
circuit. The low pass filter circuit with an op-amp buffer is shown in the following diagram.
If the analog output has a frequency of F, the PWM frequency should be much higher than F. The
values of R and C are given by the following formula.
Zilogic Systems Page 15
