Summary of Contents for oticon Intiga Rite

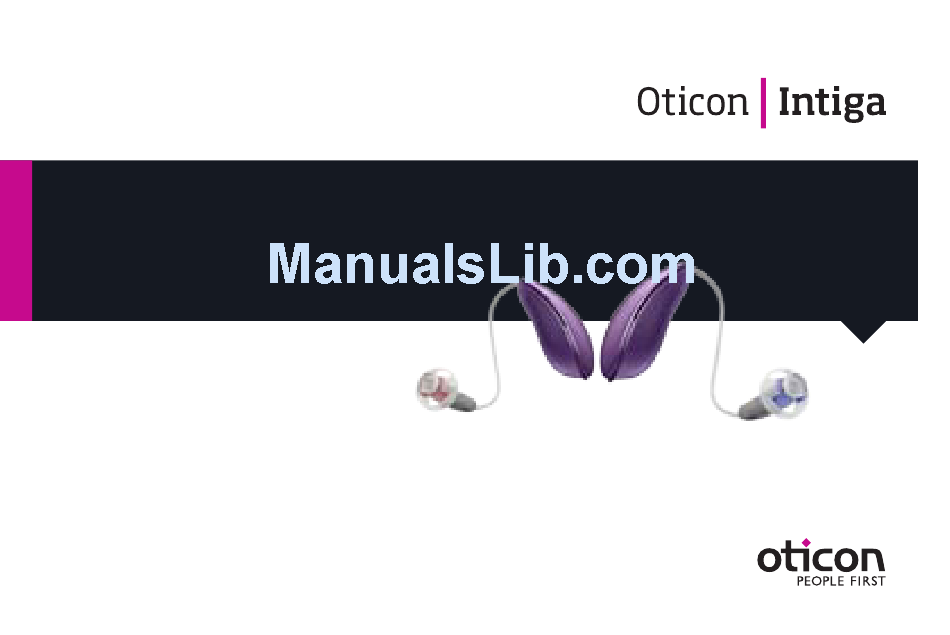

- Page 1 InstructIons for use rItE...
- Page 2 thank you Indications for use Thank you for choosing our product as your means to better hearing. The intended use of your hearing instrument is to amplify and transmit sound to the ear and hereby compensate for impaired hearing. To support your efforts, we have put great care and attention into making sure that your new hearing instruments are of the highest quality and that they are easy to use and Your hearing instrument is indicated for: hearing losses within mild to moderate range.
-
Page 3: Table Of Contents
contents Instrument view Warnings Activating the hearing instrument for the first time Changing batteries Turning your instruments ON and OFF Left/Right ear marking Putting on your instrument Programs (Optional - via Streamer) Volume control (Optional - via Streamer) Caring for your hearing instrument Daily maintenance with mould Daily maintenance with domes Seven easy steps to better hearing... -
Page 4: Instrument View
Mobile Phone Instrument view Technical information Microphone openings Your ear piece Settings overview for your hearing instrument Open dome: 10mm Plus dome Speaker unit Power dome: Sound outlet 10mm Important notIcE Battery door 12mm Wax protection Please familiarise yourself with the entire contents of this booklet before using your hearing instru ments. -
Page 5: Warnings
Warnings • Batteries have occasionally been mistaken for pills. Therefore check your medicine carefully before swallowing any pills. You should familiarize yourself fully with the following general warnings and the entire • Never put your hearing instrument or batteries in your mouth for any reason, as they contents of this booklet before using your hearing instrument. - Page 6 Active implants electrotherapy or surgery as your hearing instruments may be damaged when exposed • Oticon shows caution and advise to follow the guideline as recommended by manufac- to strong fields. turers of implantable defibrillators and pacemakers regarding use of mobile phones.
-
Page 7: Activating The Hearing Instrument For The First Time
activating the hearing instrument for the first time changing batteries A hearing instrument is a miniature electronic device that runs on special batteries. The correct battery size appears in the “Instrument View” in To activate the hearing instrument, you must insert a fresh battery in the battery the first section of this document. -
Page 8: Turning Your Instruments On And Off
turning your instruments on and oFF To replace the battery, follow these instructions: • Open the battery door completely by pushing the raised edge on the bottom of the Turn on your hearing instrument by closing the battery door completely with the battery instrument. -
Page 9: Left/Right Ear Marking
Left/right ear marking putting on your instrument Hearing instruments are fitted to the uniqueness of each ear, which means if you have 1. Place the speaker, with the ear piece attached, into two instruments then your left hearing instrument is programmed differently from your your ear. -
Page 10: Programs (Optional - Via Streamer)
programs (optional - via streamer) When switching between the different programs, your hearing instrument will beep. The number of beeps will indicate which program you are using. Your hearing instrument can have up to 4 different programs. The number and type ... -
Page 11: Volume Control (Optional - Via Streamer)
Your ear canal produces ear wax (cerumen) which may clog up the earpiece. Therefore You can adjust the volume control by using the Oticon ConnectLine Streamer. The your hearing instrument contains a filter to prevent wax accumulation. Consult your... -
Page 12: Important Notice
Cleaning the instruments A range of dedicated cleaning tools are prepared for the special purpose of cleaning your instruments. The MultiTool should be used to ensure the best care and performance of your hearing instruments. multitool Screwdriver Magnet Cover Brush Handle Replace the brush when necessary. -
Page 13: Daily Maintenance With Mould
Daily maintenance with mould Replace the WaxStop protection system The Mould should be cleaned regularly: The WaxStop filter should be changed: • When you can see that the filter placed in the Mould is clogged. • Clean the ventilation opening by pressing the brush through the hole while twisting • When the hearing instrument does not sound normal. -
Page 14: Daily Maintenance With Domes
Daily maintenance with domes Changing the dome The dome is easy to replace. Replace it whenever needed. Clean the speaker unit on a regular basis. Use the cloth and rub off any earwax. 1. Use your finger tips and hold the bottom of the dome. Then pull it off. The dome should not be cleaned. - Page 15 avoiding heat, humidity and chemicals Under the dome you will notice a white wax filter attached to the end of the speaker. This is a wax filter that will keep debris from damaging the speaker. If this filter becomes clogged, contact your Hearing Care Professional for service and replacement of the filter. Your hearing instrument must never be exposed to extreme heat e.g.
-
Page 16: Seven Easy Steps To Better Hearing
seven easy steps to better hearing Over the first days and weeks of using your hearing instruments, you will experience sounds that will be new to you, especially if you have not worn hearing instruments previously. Now is the time to experiment with listening to these new or long-forgotten sounds. - Page 17 If you find it difficult to listen to TV or radio, ask your Hearing Care Professional for more into the hearing instrument’s microphone opening. This way, the information regarding the Oticon ConnectLine system and other available accessories. hearing instruments will not whistle, and you ensure the best conditions to understand the conversation.
- Page 18 If you find it difficult to obtain a good result while using your mobile telephone, ask your improve a hearing impairment resulting from a physiological condition. What they will Hearing Care Professional for more information regarding the Oticon ConnectLine system give you, however, is help towards making better use of the hearing ability that you have.
-
Page 19: Common Problems And Their Solutions
common problems and their solutions Symptom Possible causes Solutions no sound Worn-out battery Change battery pg. 13 & 14 Clogged sound outlet Clean mould pg. 24 Consider replacing WaxStop protection or dome pg. 25 & 27 Intermittent Clogged sound outlet Clean mould pg. -
Page 20: Wireless Accessories
For detailed information on the ConnectLine system ask your Hearing Care Professional damage due to foreign objects entering the device, or incorrect adjustments are NOT or visit www.oticon.com covered by the limited warranty and may void it. The above warranty does not affect any legal rights that you might have under applicable national legis lation governing sale of consumer goods. -
Page 21: Mobile Phone
mobile phone Warranty certificate Name of Owner: Some hearing aid users have reported a buzzing sound in their hearing aids when they are using mobile phones, indicating that the mobile phone and hearing aid may not be Dispenser: compatible. Dispenser Address: According to the ANSI C63.19 standard (ANSI C63.19-2006 American National Standard Methods of Measurement of Compatibility Between Wireless Communications Devices Dispenser Phone:... -
Page 22: Technical Information
technical information The hearing instrument contains a radio transmitter using short range magnetic induction technology working at 3.84 MHz. The magnetic field strength of the transmitter is < -42 dBμA/m @ 10m. The emission power from the radio system is well below international emission limits for Human Exposure. - Page 23 The hearing instrument contains a module with: Hereby, Oticon A/S declare that this hearing instrument is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Declaration of conformity is available at: FCC ID: U28FURIT04 IC: 1350B-FURIT04 Oticon A/S The device complies with Part 15 of the FCC rules and RSS-210 of Industry Canada.
-
Page 24: Settings Overview For Your Hearing Instrument
settings overview for your hearing instrument Hearing program no. Hearing program description Hearing Instrument Left Volume control indicators Right Beeps at min/max volume Clicks when changing volume Beeps at preferred volume Battery indicators Low battery warning You can adjust the volume as well as shifting programs when using ConnectLine Streamer. - Page 25 people First People first is our promise to empower people to communicate freely, interact naturally and participate actively...
