zBoost
®
User Manual
zBoost
®
products have a 30-day money back guarantee when purchased directly from
zBoost. If product is purchased from a reseller or third party, the purchaser is subject to the
policies of the third party.
1 year manufacturer warranty. Warranty registration at www.zBoost.com

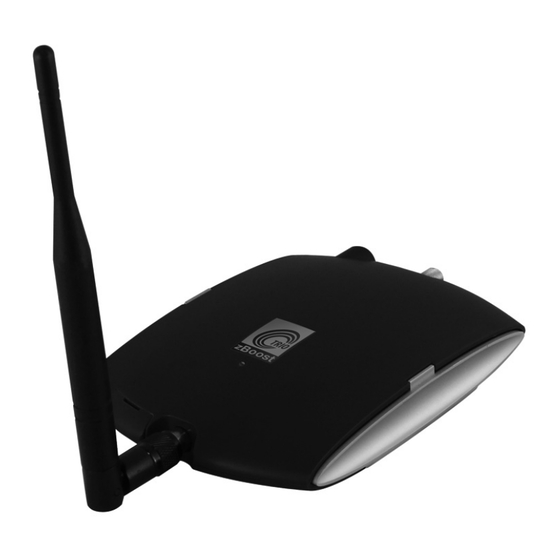

TRIO ZB575
Models:
• ZB575-A
• ZB575-V
v.0814
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for zBoost ZB575-A
Summary of Contents for zBoost ZB575-A
-
Page 1: User Manual
® products have a 30-day money back guarantee when purchased directly from zBoost. If product is purchased from a reseller or third party, the purchaser is subject to the policies of the third party. 1 year manufacturer warranty. Warranty registration at www.zBoost.com... -
Page 2: Fcc Requirements
Warning: Changes or modifi cations to this device not expressly approved by zBoost could void the Le fabricant nominale de la puissance de sortie de ce matériel est simple transporteur. Pour les user’s authority to operate the equipment. -
Page 3: Safety And Product Warranty Information
® Package Contents Safety and Product Warranty Information Before you begin, make sure all of the following parts came with your zBoost TRIO: Safety Guidelines Literature Contents: In accordance with FCC requirements of human exposure to radiofrequency fi elds, the radiating ①... -
Page 4: Table Of Contents
® ® Optional Accessories Table of Contents The following accessories are authorized for this zBoost product. Please see our website for a complete selection. To order, call 1-800-871-1612, or visit, www.zBoost.com. FCC Requirements ........................i FCC Information ..........................i Broadcast Antennas - Indoor Industry Canada Regulations .......................ii... -
Page 5: Overview
While cell phone providers have tried to place cell phone towers to provide the best overall Before placing a zBoost in your home, make sure that you can place calls on the outside of your coverage, local ordinances and terrain features can impose restrictions on where these home, in the attic, at roof level or wherever you plan to place the External Antenna. - Page 6 If the distance between the External Antenna and the Base Unit exceeds 50 feet, extension cables are available on our website. The included cable is RG-6. The zBoost TRIO base unit MUST only be used with The total cable length should not exceed 65 feet unless upgraded cable and/or upgraded External the provided power adaptor.
-
Page 7: First: Mount The External Antenna
Avoid draping the coax near the antenna. Note: The Base Unit can be easily mounted on a wall by fi rst removing the bracket from the Base Unit (see “zBoost Base Unit Assembly” above) and using 2 mounting screws (not provided) to affi x Note to wall - keeping the antenna vertical. -
Page 8: Fourth: Connect The Zboost Base Unit To Power
FOURTH: Connect the zBoost Base Unit to Power Improving Your Coverage Area Connect the zBoost Base Unit to the provided power supply and plug into a power outlet. Should you desire to improve coverage, you may: Upon initial power up, the LED will cycle RED, GREEN and ORANGE for 30 seconds. After 30 seconds, a series of GREEN fl... -
Page 9: Zboost Base Unit Light Indicators
After Initial Power Up Coverage (open areas) Up to 2,500 sq. ft. Light Mode Status Solution SOLID zBoost is ready. Product Specifi cations for zBoost TRIO ZB575-A GREEN Flashing zBoost is in use. N/A AT&T LTE/Band 12 GREEN Uplink: 1850... -
Page 10: Frequently Asked Questions
Does the zBoost work if you have no bars? this limited warranty. No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your • Product that has been modifi ed or adapted to enable it to operate in any country other than best signal is 1 bar at the External Antenna, your coverage will be limited to a small room. - Page 11 If still solid red, call customer support 1-800-871-1612. To get warranty service… Warranty service will be provided by zBoost. If you believe you need service for your unit, contact zBoost at 1-800-871-1612 or support@zBoost.com. A representative will go through a diagnostic checklist with you.
