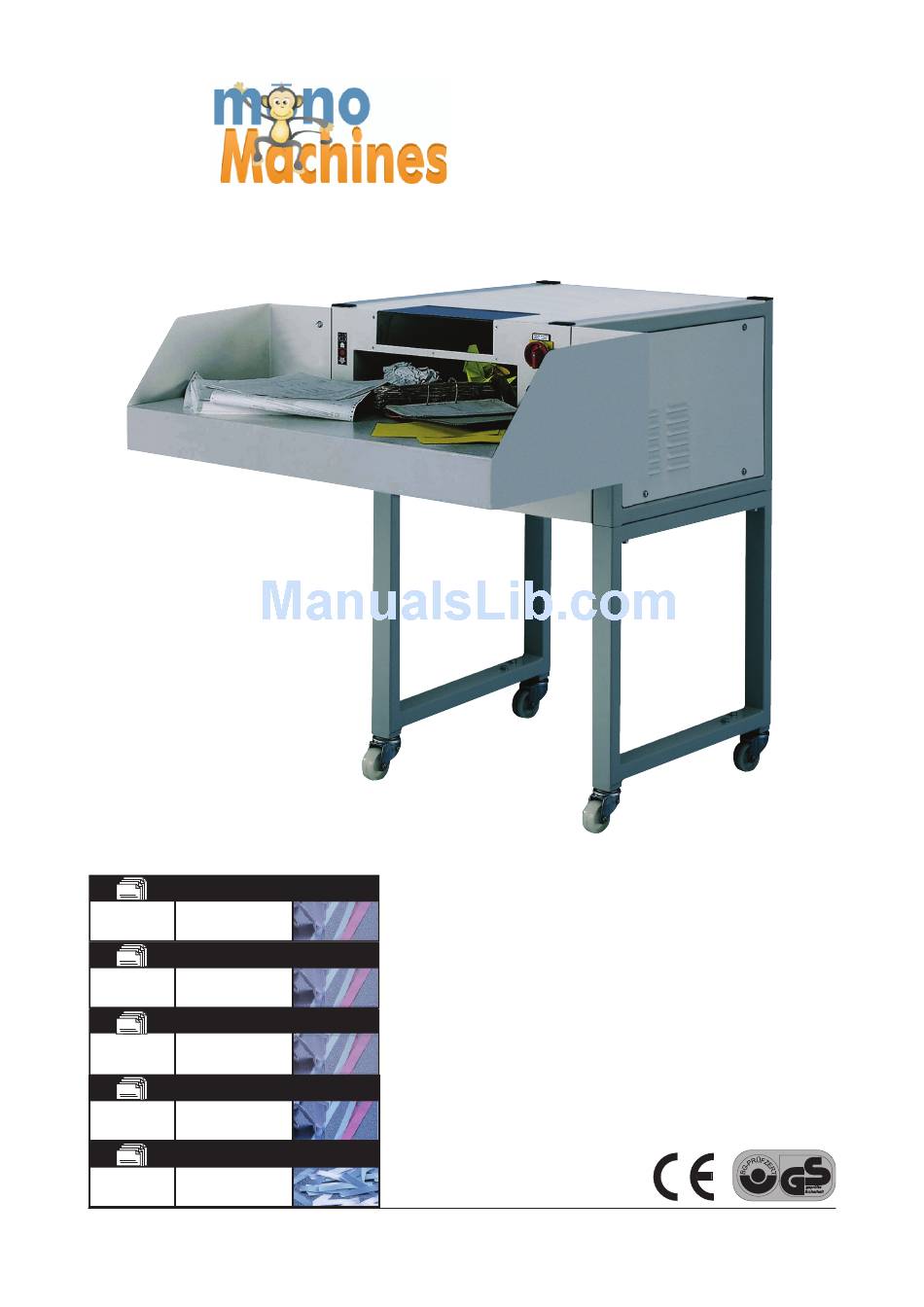

Mono Machines Paper Shredder Operating Instructions Manual

Hide thumbs Also See for Paper Shredder:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
http://www.monomachines.com
For More Info
Click Here --->
Cut
230
3/8"
Cut
160
1/4"
Cut
420
3/8" x 1 1/2" - 3"
Cut
9/32" x 1 1/2" -
300
3 5/32"
Cut
3/16" x 1 1/2" -
200
2 3/4"
Keep this instruction for future use!
http://www.monomachines.com
Strip Cut
Strip Cut
Cross Cut
Cross Cut
Cross Cut
OPERATING INSTRUCTIONS
PAPER SHREDDER
1.612.999.120 – 0501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paper Shredder and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mono Machines Paper Shredder

Summary of Contents for Mono Machines Paper Shredder

  • Page 1 http://www.monomachines.com For More Info OPERATING INSTRUCTIONS Click Here ---> PAPER SHREDDER Strip Cut 3/8" Strip Cut 1/4" Cross Cut 3/8" x 1 1/2" - 3" Cross Cut 9/32" x 1 1/2" - 3 5/32" Cross Cut 3/16" x 1 1/2" - 2 3/4" Keep this instruction for future use! 1.612.999.120 –...

  • Page 2: Table Of Contents

    http://www.monomachines.com Contents Proper use, warranty....................3 Safety instructions....................3 Overview ........................4 Dimensions ......................5 Transportation, installation ..................6 Operator controls .....................7 Checking the safety devices ..................8 Start-up ........................11 Malfunctions......................12 10. Maintenance and care ...................13 11. Technical data ......................16 12. Electric wiring diagrams for Solo- and Combination-version .........17 For More Info Click Here --->...

  • Page 3: Proper Use, Warranty

    http://www.monomachines.com Proper use, warranty The shredder is exclusively designed for destroying paper, paperboard and cardboard, as well as small quantities of store cards, credit cards, CD-ROMs and floppy disks. Its sturdy drive mechanism is not damaged by paper clips and staples. We provide a warranty for the device in accordance with our general sales and delivery terms.

  • Page 4: Overview

    http://www.monomachines.com Overview Combination with HSM KP 80 Main switch (only solo-version) Keypad Emergency stop button Loading tray Intake conveyor, paper feed opening Braking swivel castors Nameplate For More Info Click Here ---> http://www.monomachines.com...

  • Page 5: Dimensions

    http://www.monomachines.com For More Info Click Here ---> Dimensions 101.5” 66.9” 41.7” 25.2” 34.6” 41.7” 25.2” Combination-version Solo version 39.4” 106.3” Combination-version 39.4” 2 x 330.7 lbs. 2 x 330.7 lbs. 140.9” Stand alone-version Space requirements for operation and maintenance Load on rollers http://www.monomachines.com...

  • Page 6: Transportation, Installation

    Transportation, installation Caution! During transport, observe the high centre of gravity of the paper shredder! • Place the shredder in its packaging on a smooth, level surface. • Remove the packaging. • Roll the Shredder off the pallet. • If you need to move the shredder through narrow doors, you can wait until it is at its final location before fitting the loading tray.
  • Page 7 http://www.monomachines.com Fitting the loading tray • Fasten the supports (1) to the frame with the hexagon head screws (2). • Apply the table (3) and screw it to the frame (4). Take care that the webs of the conveyor belt run centrically in the strip bar (7).

  • Page 8: Operator Controls

    http://www.monomachines.com Operator controls Main switch (only Solo-version) In the "0" position, the shredder is switched off. The main switch can be secured with a pad- lock. In the "I" position, the machine is ready for operation. Emergency stop button In the event of danger, press the emergency stop button immediately! This switches off the shredder, and stops the cutting block and feed belt.

  • Page 9: Checking The Safety Devices

    If any defect arises during operation stop the machine immediately and make sure it is corrected. Switching on the paper shredder for checking safety devices • Pull out the emergency stop button. • Solo-version: Turn the main switch to the "I" position.
  • Page 10 http://www.monomachines.com Safety switch on the dust tray Pull out the dust tray. The shredder must switch off immediately and the "Safety circuit interrupted" LED must light up. The machine will only start again once you have pu- shed in the dust tray completely. Safety switch on the inspection door (only stand alone-version) Open the inspection door.

  • Page 11: Start-Up

    The shredder switches to standby mode. Switching off the shredder • Turn the main switch on the paper shredder or the baling press to "0". You can secure the main switch in this position using a padlock. For More Info Click Here --->...

  • Page 12: Malfunctions

    http://www.monomachines.com Malfunctions Check the following before calling customer service: • Is the power plug connected? • Is the shredder switched on? • Is there a paper jam in the shredder? • Has the motor been overloaded? Paper jam You have fed in too much paper. The red LED on the keypad blinks.

  • Page 13: Maintenance And Care

    Emptying the dust tray Paper dust and particles accumulate in the paper shredder during operation. To facilitate cleaning, the ground plate of the paper shredder was designed as a tray. This tray must be emptied every week. Attention: The paper shredder cannot be switched on unless the dust tray is fully pushed in.
  • Page 14 Danger Cutter rolls! Cutting injuries are possible even when the paper shredder is idle. Always wear protec- tive gloves! Check whether the stripping device is flush with the conveyor belt. Otherwise it must be readjusted: • Loosen the countersunk screws of the clamping strip - this allows to move the stripping device.
  • Page 15 http://www.monomachines.com Checking the feed belt for wear The surface of the feed belt can become worn after long periods of use. If you can see the fabric inlay in the belt, it must be replaced. Please notify our customer service. Tightening the feed belt The feed belt should not slip when loaded with material.

  • Page 16: Technical Data

    http://www.monomachines.com 11. Technical Data Cutting type Strip cut Cross cut Cut size (inches) 3/8“ 1/4“ 3/8 x 1 1/2-3 9/32 x 3/16 x 5/23 1 1/2-3 5/32 1 1/2-2 3/4 Security level DIN 32757 – 1 Cutting capacity (sheets), 70g/m DIN A4 Cutting speed 46 ft./min.

  • Page 17: Electric Wiring Diagrams For Solo- And Combination-Version

    http://www.monomachines.com For More Info Click Here ---> 12. Electric wiring diagrams Legend: =AV: Shredder in switch cabinet +MA: on machine +BF: Keypad http://www.monomachines.com...
  • Page 18 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
  • Page 19 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
  • Page 20 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
  • Page 21 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
  • Page 22 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
  • Page 23 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
  • Page 24 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
  • Page 25 http://www.monomachines.com STANDARD PRODUCT WARRANTY Quality is part of the company philosophy and all products are manufactured to the highest quality standards. All technical data and measurements are approximate values and based upon single shift operations. All products are subject to different limits and specifications due to operation length, paper size, grain, weight, misuse/abuse and power configurations.
