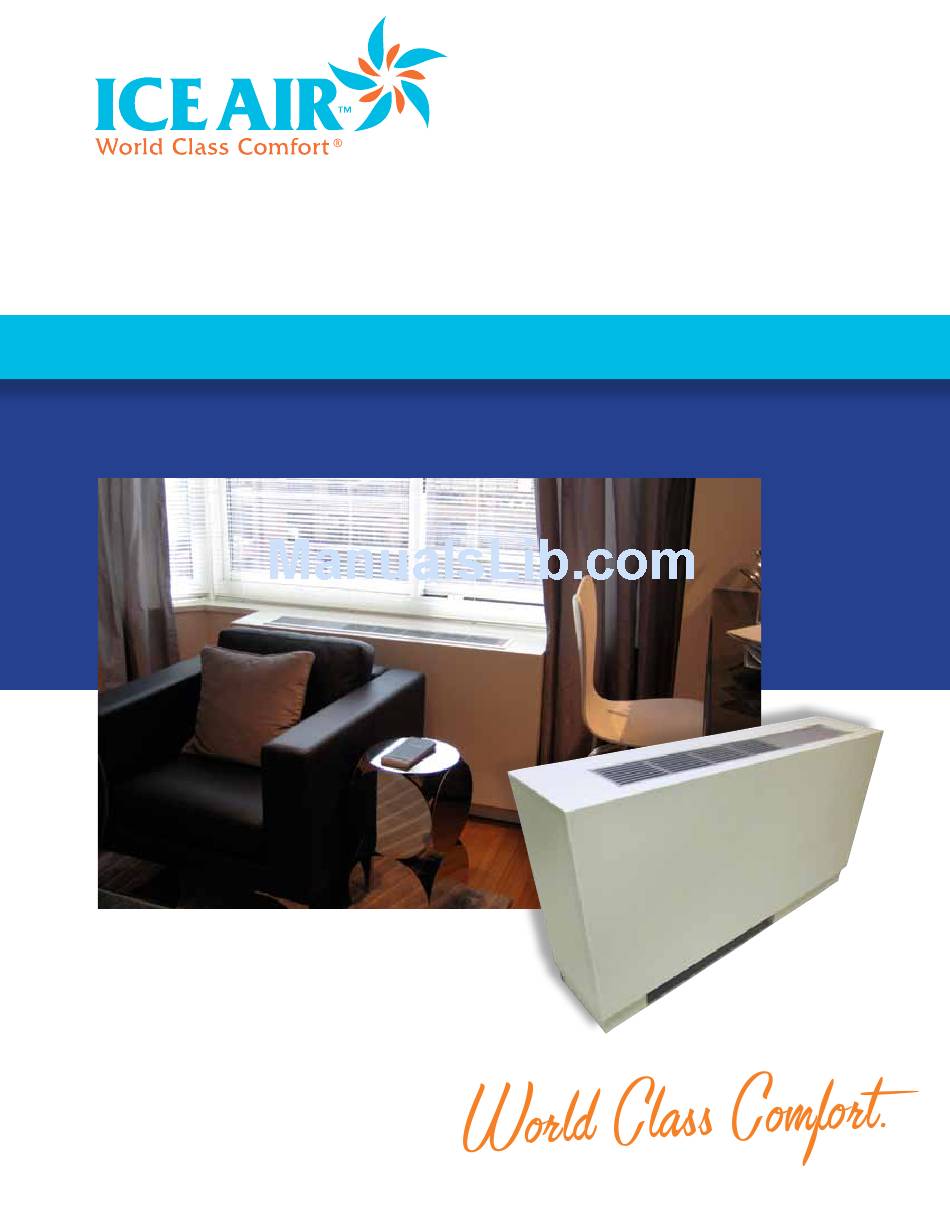

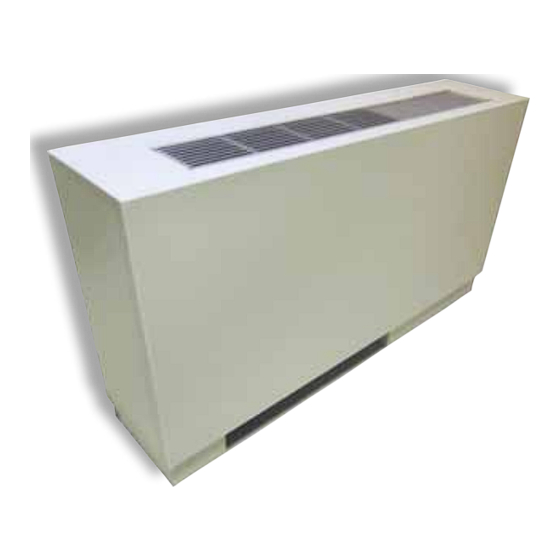

- Page 1 OPERATING & MAINTENANCE MANUAL Console Water Source Heat Pump (WSHP)
- Page 2 & maintenance manual – console water source heat pump (wshp) SUB-8270 RIGHT HAND PIPE & ELECTRIC AREA (5 1/2") SPACE FOR PIPING (5") TOP VIEW CONTROL ACCESS DOOR 4 " 2" 2 " 8 " 1" 8 "(TYP) JUNCTION 1"...
-
Page 3: Living Room
& maintenance manual - console water source heat pump (wshp) welcome conSumer reFerence inFormation Congratulations on your selection of ICE AIR We recommend that you record the following Water Source Heat Pumps (WSHPs) for your information about your ICE AIR WSHP products: comfort conditioning requirements. -
Page 4: Electrical Data
& maintenance manual – console water source heat pump (wshp) Therefore: • Your ICE AIR unit must be properly installed and commissioned to operate correctly. Improper unit - Do not place furniture, rugs or objects directly installation, adjustment or commissioning, and / or... -
Page 5: Feature List
& maintenance manual - console water source heat pump (wshp) lcD programmaBle tHermoStat controlS operating inStructionS & SeQuence oF operationS All standard ICE AIR WSHP units are equipped with unit mounted digital controls. (If your unit has optional wall mounted or remote controls, see the separate operating instructions supplied with those controls). -
Page 6: Operation
& maintenance manual – console water source heat pump (wshp) Auto Mode operation eVent tIme heat cool Normal Mode Press [ON/OFF] to turn on thermostat. mon- waKe 6:00 am 70º F (21º c) 78º F (26º c) Press [Mode] to change the system mode. -
Page 7: Temporary Program Override
& maintenance manual - console water source heat pump (wshp) time Setting 7. Press [Fan] when complete. The cool limit setting Set Clock/Day is flashing should be at least 4°F higher than the heat limit setting. 1. Press [Mode] key to select Edit “Clock/Day.”... -
Page 8: Maintenance And Service
& maintenance manual – console water source heat pump (wshp) operating Specifications Have your unit periodically inspected by a • Temperature measurement properly trained service professional or building maintenance staff person. The unit °C ~ 40°C / 32°F ~ 99°F •... - Page 9 & maintenance manual - console water source heat pump (wshp) DO NOT OPERATE UNIT WITHOUT FILTER. Drain pan / Drain HoSe cleaning This practice will damage and/or seriously impair The condensate pan is located directly under the the performance of your unit and could void your evaporator coil.
-
Page 10: Troubleshooting
& maintenance manual – console water source heat pump (wshp) COMPRESSOR trouBleSHooting 1. If unit is not operating, conduct the following checks: • If a flashing “A” appears on the display, contact a trained technician. • Check the electrical connections. -
Page 11: Led Green Red
& maintenance manual - console water source heat pump (wshp) trouBleSHooting error coDe menu wSHp Board error codes Yellow (V4.7 & up) green normal High pressure flash low pressure flash evaporator flash flash too cold coaxial winter flash protection... -
Page 12: Safety Warnings
SaFetY warningS: • MUST BE INSTALLED BY QUALIFIED, TRAINED INSTALLATION PERSONNEL • MUST BE INSTALLED IN ACCORDANCE WITH ICE AIR INSTALLATION MANUAL AND PROCEDURES • MUST BE SERVICED BY QUALIFIED, TRAINED PERSONNEL • ELECTRIC SHOCK HAZARD – DISCONNECT FROM LIVE ELECTRIC CIRCUIT BEFORE SERVICING •...
