ICE AIR CHPW Installation Manual

Water source heat pump unit
Hide thumbs Also See for CHPW:

Advertisement

CHPW
Installation Manual
Slope or Flat Top
Console Unit
Water Source Heat Pump
(WSHP) Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHPW and is the answer not in the manual?

Questions and answers

Summary of Contents for ICE AIR CHPW

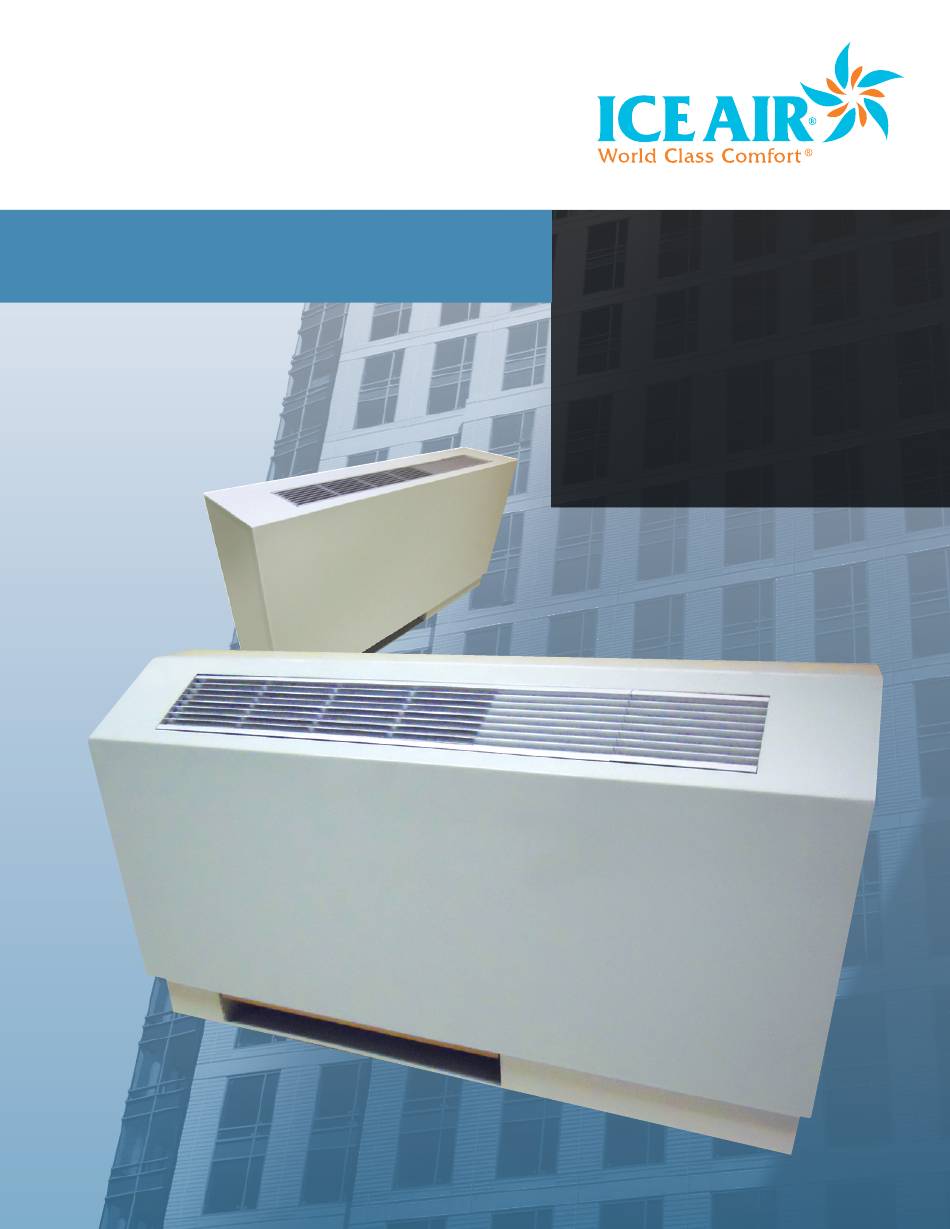

  • Page 1 CHPW Installation Manual Slope or Flat Top Console Unit Water Source Heat Pump (WSHP) Unit...
  • Page 2: Table Of Contents

    National Electric Code. The proper installation of this unit is described in the following sections. Following the steps in the order presented should ensure proper installation. Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 3: Overview/Application Note/Inspection

    Overview Ice Air Water Source Heat Pumps are quality units, which should only be installed by a trained professional. Please ensure all sections are read thoroughly before installing the unit. Application Note It is important for heating/cooling systems to be properly sized for each application in order to achieve desired temperature and humidity levels.
  • Page 4: Physical Data

    Return Air Min DB/WB 65/60 Return Air Max DB/WB 95/75 Entering Water Min*-Max 60-110 60-90 * Additional insulation may be required Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 5: Performance Data

    8CHPW13 8CHPW16 8CHPW19 7CHPW09 7CHPW13 7CHPW16 7CHPW19 Voltage/Phase/Frequency 115/60-1 208-230/60-1 265-277/60-1 Total Unit FLA 15.5 10.2 19.0 10.1 12.3 10.3 MOCP Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 6: Before You Begin

    FILTER LOCATED INSIDE AIR INLET AREA supplemental heating and cooling source AND AT TOP OF during construction. AIR INTAKE AREA Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 7: Storage

    37.5 24.5 5.125 8CHPW19-ZS 24.5 5.125 ISOMETRIC VIEW SLOPE TOP FLAT TOP TOP VIEW 4.875 RIGHT VIEW RIGHT VIEW FRONT VIEW Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 8: Piping Installation

    Water piping terminates in the same location regardless of the connection and valve options. Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 9: Optional Valve Accessories

    Purge Valve Purge valves facilitate the removal of excess or unwanted liquids/ gases within a piping system, storage tank, or other container. Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 10: System Startup Prep

    8. Completely drain the system. filtering will be necessary. Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 11: General Wiring

    RELAY3 = EVAP. BLOWER MOTOR RELAY(HI) COOL FAN3 RELAY4 = REVERSING VALVE RELAY HEAT FAN4 HI-FAN YEL/GRE FAN5 LOW- FAN RT PPL YEL/GRE Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 12: System Start

    For operational control please see Ice Air’s thermostat manual. Please review 3rd party thermostat manuals when controls are provided by others. Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 13: System Check List

    Pressure Differential (PSI) Flow Rate (GPM) Supply Voltage at Contactor (V) Transformer Low Side Volts (V) Compressor Amps (A) Motor Amps (A) Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 14: Troubleshooting

    Site voltage unstable, bad transformer Condensate over flow Clogged condensate drainage Coaxial water too cold Water too cold during on mode, low gas Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 15: Preventative Maintenance

    Slime buildup, and dust/sediment deposits, can prevent proper condensate disposal. Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 16: Product Nomenclature

    VALVE SHIPPING Shipped Loose Powder Coated Galvanized Drain Pan OPTIONS No Valves DRAIN PAN Stainless Steel Drain Pan No Drain Pan Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 17 Notes or Technical Comments Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 18 Notes or Technical Comments Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 19 Notes or Technical Comments Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
  • Page 20: Warranty/Contact Information

    © 2023 by Ice Air, LLC ICE6066.2–11/23 Due to Ice Air’s ongoing product development programs, the information in this document is subject to change without notice.
