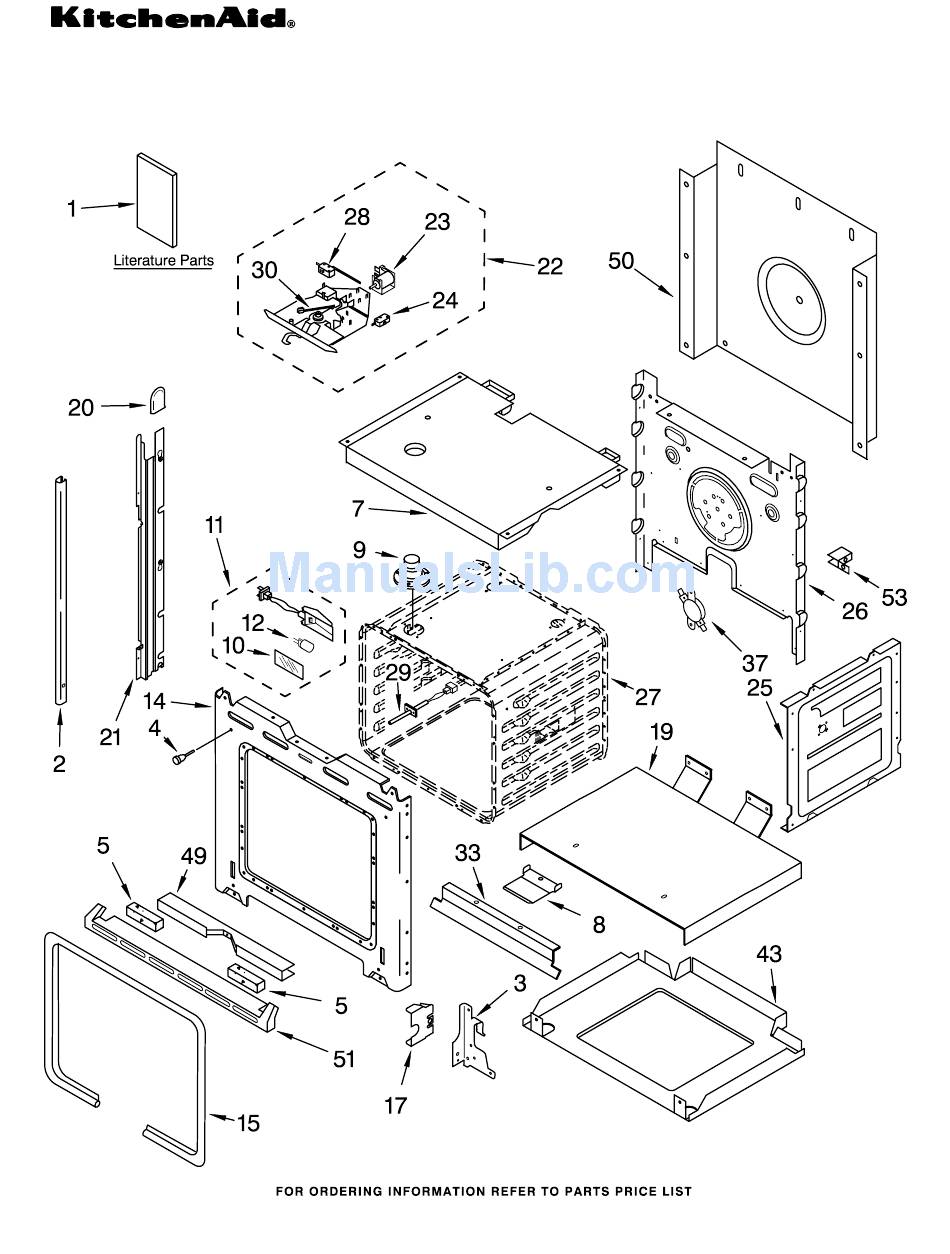

Page 1: Oven Parts
OVEN PARTS 24" BUILT−IN ELECTRIC SINGLE OVEN For Models:KEBC147KBL0, KEBC147KWH0 THERMAL CONVECTION (Black) (White) SELF−CLEAN Part No. 8185909 4−02 Litho in U.S.A. (cre) - Page 2 4448520 Bumper, Door 4452490 Spacer, Foam 4455863 Top Chassis 4449809 Screw Deflector, Vent Box 4455807 Black 4452489 Stainless Steel OVEN PARTS For Models:KEBC147KBL0, KEBC147KWH0 (Black) (White) Illus. Part DESCRIPTION 4452158 Tube, Vent 3196176 Screw 4452163 Lens, Light 4448972 Oven Light Assy...
-
Page 3: Control Panel Parts
8185909 CONTROL PANEL PARTS For Models:KEBC147KBL0, KEBC147KWH0 (Black) (White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 8300815 Black Model 8300816 White Model Switch, Membrane... -
Page 4: Oven Door Parts
4455616 Liner, Door Hinge, Door 8300569 R.Side 8300570 L.Side 4449743 Screw 4449247 Glass, Inner 4451720 Insulation, Door OVEN DOOR PARTS For Models:KEBC147KBL0, KEBC147KWH0 (Black) (White) Illus. Part DESCRIPTION 4449251 Glass, Inner 4451668 Retainer, Glass 4449809 Screw Door Glass, Assy... - Page 5 3147563 Grill, Broiler 3147845 Pan, Broiler 3181534 Rack, Roasting 4448716 Rack, Oven 4452155 Element, Bake 4448881 Nut, Hex 8185909 INTERNAL OVEN PARTS For Models:KEBC147KBL0, KEBC147KWH0 (Black) Illus. Part DESCRIPTION 4451583 Fan, Convection 4449154 Screw 4452226 Blade, Fan 4448882 Washer, Lock...
- Page 6 4451759 Vent, Exhaust 4455178 Elbow, Vent−Top 4455334 Blower 4455352 Bracket, Blower 4451758 Foam, Block 6610122 Transformer, Light 4449809 Screw TOP VENTING PARTS For Models:KEBC147KBL0, KEBC147KWH0 (Black) (White) Illus. Part DESCRIPTION 4451789 Plate, Mounting 4455177 Elbow, Vent−Bottom 8300642 Transformer,...
-
Page 7: Optional Parts
350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) 8185909 OPTIONAL PARTS For Models:KEBC147KBL0, KEBC147KWH0 (Black) (White) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
