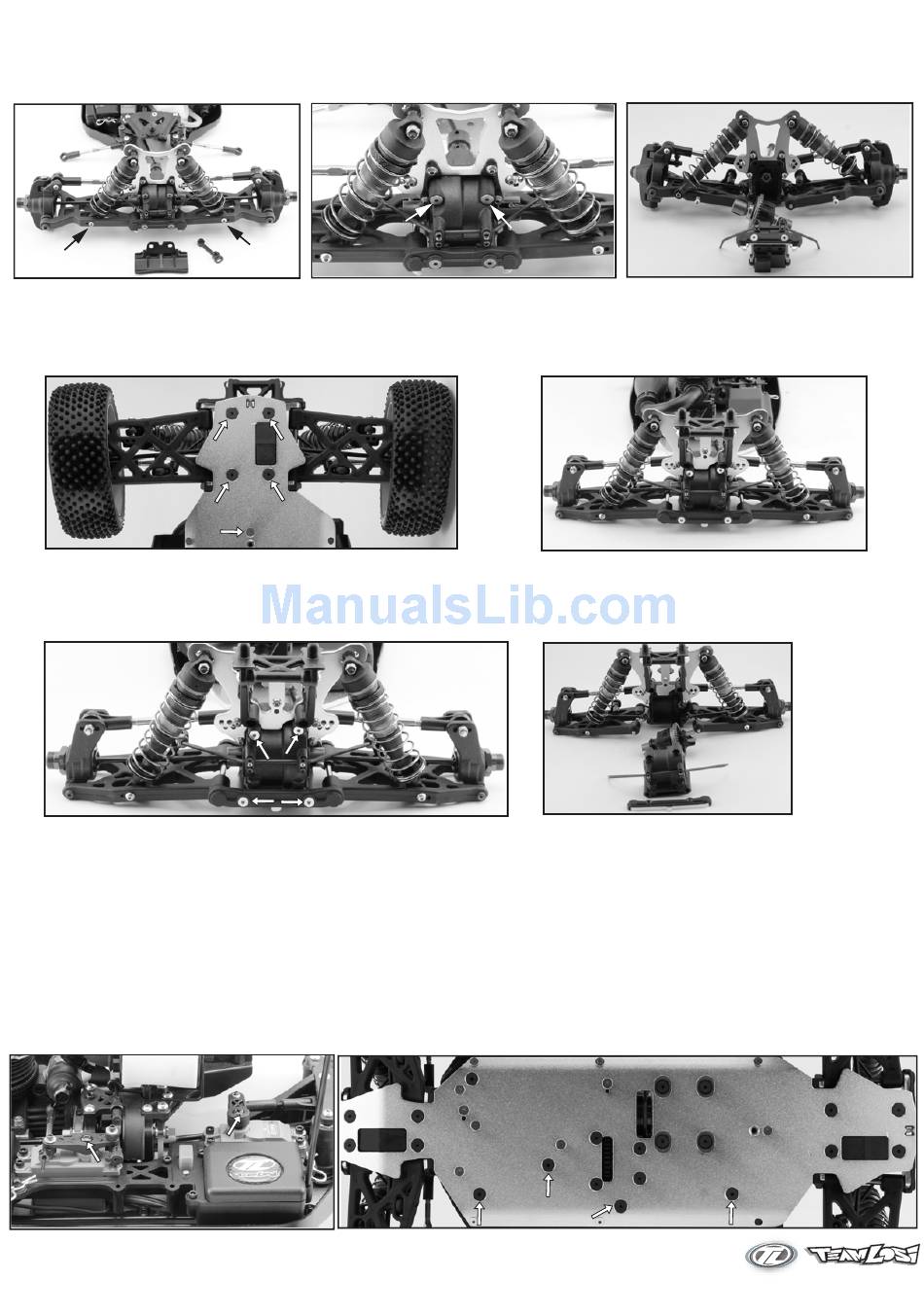

Removing The Front Differential - continued
Remove the 5-40 shock screws from the suspension arms. (fig. 3) Loosen the 5-40 set screws on the sway bar ball
ends. Remove the two 5-40 flathead screws from the front of the diff cover (fig. 4), and remove the two 5-40
caphead screws from the bottom of the diff cover. Slide the diff cover off of the bulkhead and remove the diff. (fig. 5)
3
Removing The Rear Differential
To remove the rear differential, the "rear clip" of your 8IGHT RTR has to be removed. Remove four 8-32 flathead screws from
the chassis and the 5-40 flathead screw from the brace (fig. 6). Lift the rear clip up and off of the chassis (fig. 7).
6
Loosen the 5-40 setscrews on the sway bar ball ends and remove the ball ends from the sway bar. Remove four 5-40
flathead screws from the rear clip (fig. 8). Slide the pivot support and rear diff cover off of the bulkhead and remove
the diff (fig. 9).
8
Removing The Center Differential
To remove the center differential, the radio tray on your 8IGHT RTR has to be removed.
• Turn on the transmitter and receiver.
• Note the position of the throttle and steering servo horns. This is important so you know where
to position the servo horns during re-assembly.
• Remove the 3mm Phillips head machine screw, (fine threads), from the steering servo and the 3mm self
tapping screw, (coarse threads), from the throttle servo, (fig.10). Remove the servo horns leaving the
inserts on the servos. Turn the transmitter and receiver off.
• Remove the four 8-32 x 3/8" flathead screws from the radio tray, (fig. 11).
10
4
Front
11
Page 6
5
7
9
