KitchenAid KBHS109SSS00 Parts List

KitchenAid KBHS109SSS00 Parts List

30" built−in microwave
Hide thumbs Also See for KBHS109SSS00:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual

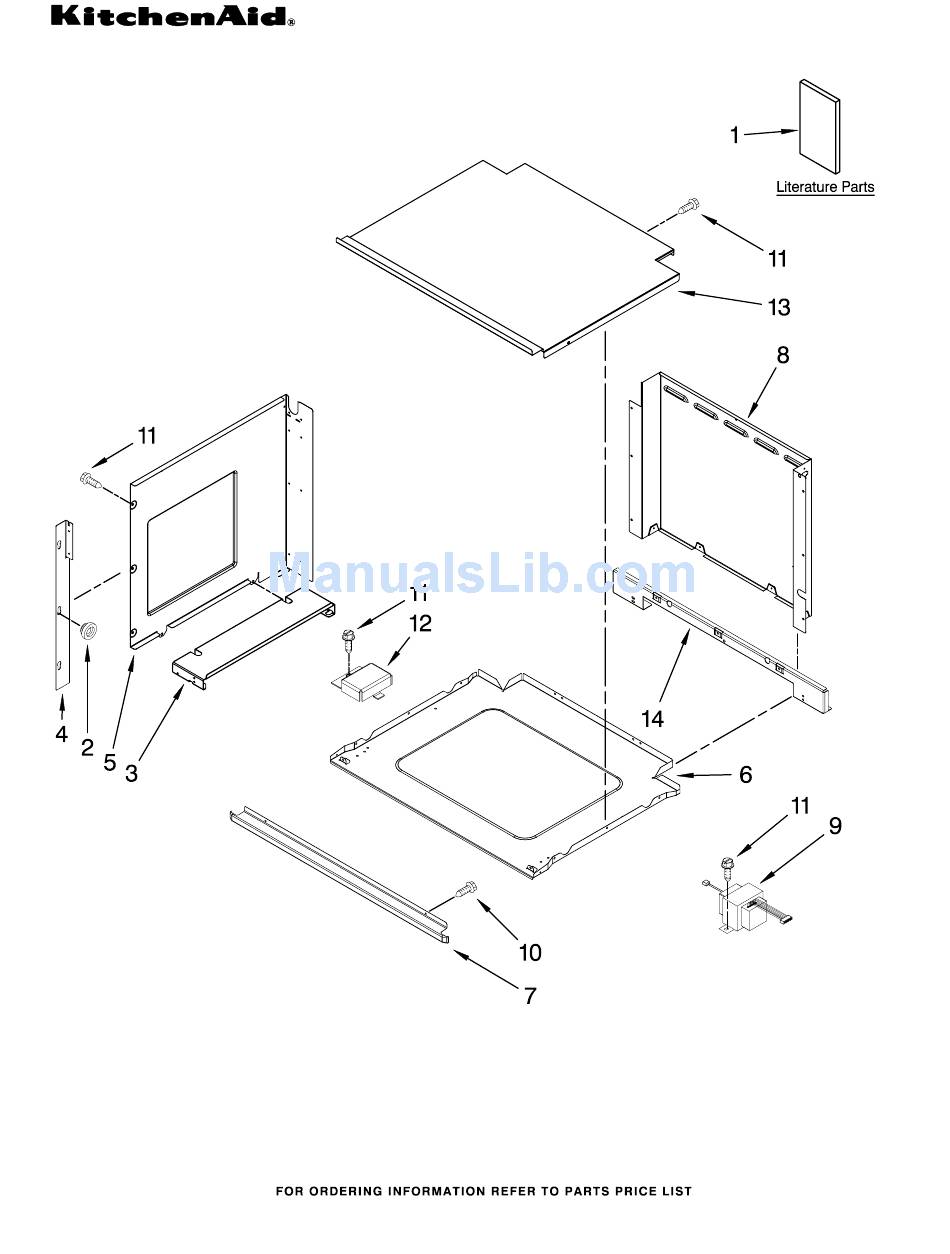

OVEN PARTS

30" BUILT−IN MICROWAVE
For Models: KBHS109SSS00
(Stainless)
6−07 Litho in U.S.A. (amd)
1
Part No. W10129035 Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the KBHS109SSS00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KBHS109SSS00

Summary of Contents for KitchenAid KBHS109SSS00

  • Page 1: Oven Parts

    OVEN PARTS 30" BUILT−IN MICROWAVE For Models: KBHS109SSS00 (Stainless) 6−07 Litho in U.S.A. (amd) Part No. W10129035 Rev. B...
  • Page 2 OVEN PARTS For Models: KBHS109SSS00 (Stainless) Illus. Part DESCRIPTION Literature Parts 8304424 Installation Instructions 8304369 Use & Care Guide Tech Sheet 8304418 English 8304419 French 8304375 Easy Set Guide Safer Cooking Tips 3191638 English 9759133 French 4448444 Grommet, Mounting Rail...

  • Page 3: Control Panel Parts

    W10129035 CONTROL PANEL PARTS For Models: KBHS109SSS00 (Stainless) Illus. Part DESCRIPTION 1 8303716SS Panel, Control 9760749 Bumper, Door 8303797 Bracket, Glass Touch 8304334 Keyboard, Glass Touch 5 W10118736 User Inferface 8303719 Backer, Control 8303887 Bracket,Enclosure 4449154 Screw 3400805 Screw 4449809 Screw...
  • Page 4 MICROWAVE DOOR PARTS For Models: KBHS109SSS00 (Stainless) Illus. Part DESCRIPTION 8304588BL Button, Plug (2) 4449809 Screw 3 W10120487 Door, Microwave 4449154 Screw (4) 8303033 Bracket, Handle 8304454 Glass Assembly 8303774SS Handle, Door 8304603SS Badge 9 W10143304 Screw W10129035...
  • Page 5 CABINET AND STIRRER PARTS For Models: KBHS109SSS00 (Stainless) W10129035...
  • Page 6 4375321 Fuse 4375231 Block, Fuse 19 W10130897 Bracket, Support 8205653 Filter, Noise 8205654 Thermostat 22 W10120113 Magnetron 23 W10130895 Plate, Air 4375319 Spring, Lamp For Models: KBHS109SSS00 (Stainless) Illus. Part DESCRIPTION 8205685 Spring 8205658 Housing, Lamp 4375348 Lamp 28 W10120222 Thermostat...
  • Page 7 INTERNAL MICROWAVE PARTS W10129035 For Models: KBHS109SSS00 (Stainless) Illus. Part DESCRIPTION 1 W10120480 Crisp Plate 2 W10120484 Steamer 4452220 Rack, Convection 4 W10120486 Plate, Baking 5 W10120483 Rack 8205676 Turntable 8205678 Ring 8205677 Drive, Turn Table 9 W10120481 Handle, Pan...

  • Page 8: Optional Parts

    OPTIONAL PARTS For Models: KBHS109SSS00 (Stainless) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black FOLLOWING PARTS NOT ILLUSTRATED 482338 Sealer, Silastic (3 oz.) WIRING HARNESS PARTS...
