EWM alpha Q 330 Progress puls MM TKM Operating Instructions Manual page 19

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
099-005388-EW501
19.03.2014

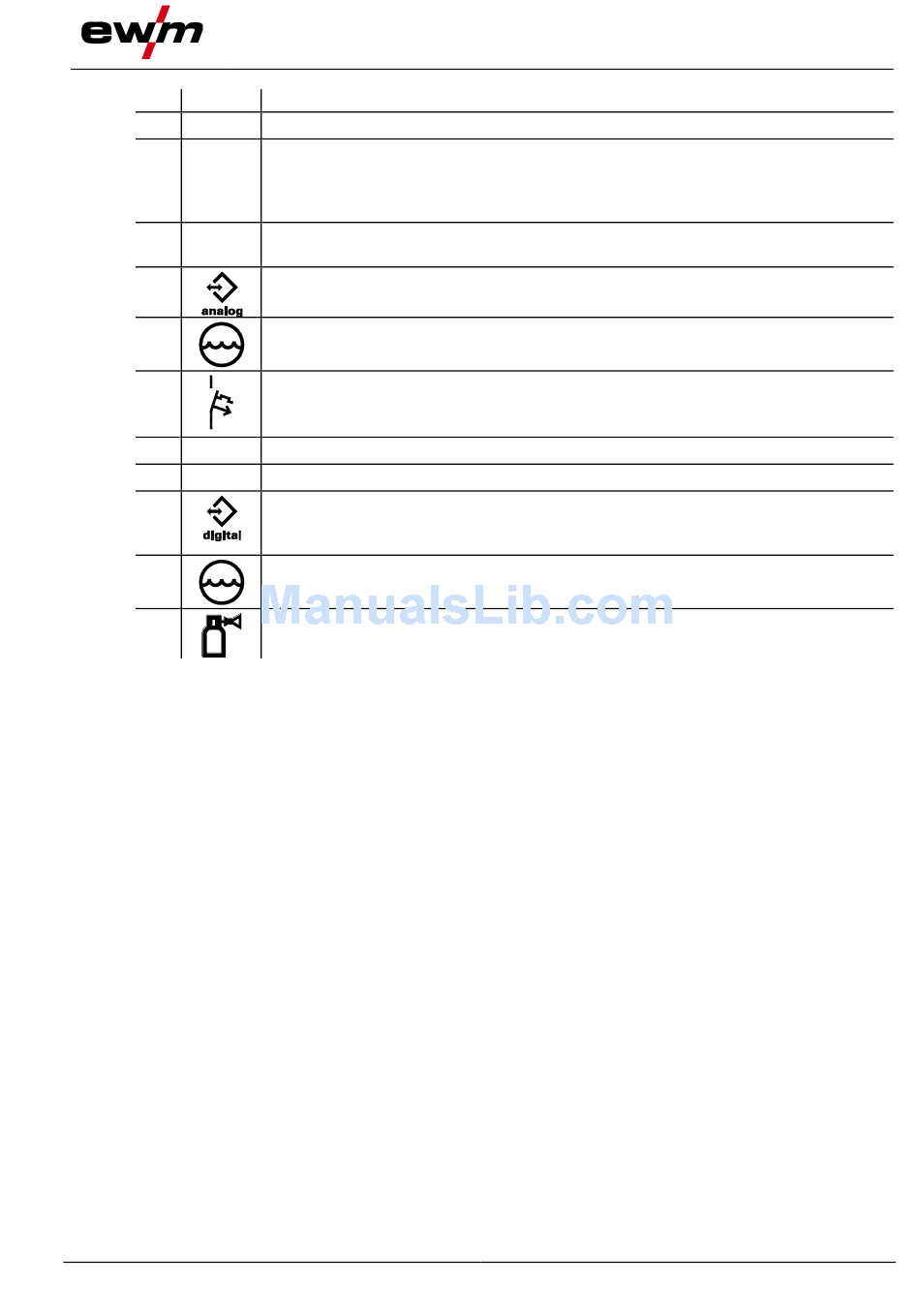

Machine description – quick overview
Description 0
Slide latch, lock for the protective cap
Protective cap
Cover for the wire feed mechanism and other operating elements.
Depending on the machine series, additional stickers with information on the
replacement parts and JOB lists will be located on the inside.
Wire spool inspection window
Check wire supply
19-pole mechanised welding interface (analogue)
(See chapter entitled "Design and function > interfaces".)
8-pole connection socket
Cooling unit control lead
Key button, automatic cutout
Wire feed motor supply voltage fuse
press to reset a triggered fuse
Cooling air outlet
Mains connection cable
7-pole connection socket (digital)
For connecting digital accessory components (documentation interface, robot interface
or remote control, etc.).
4-pole connection socket
Cooling unit voltage supply
Connecting nipple G¼, shielding gas connection
Rear view
