Worx WX333 Safety And Operating Manual

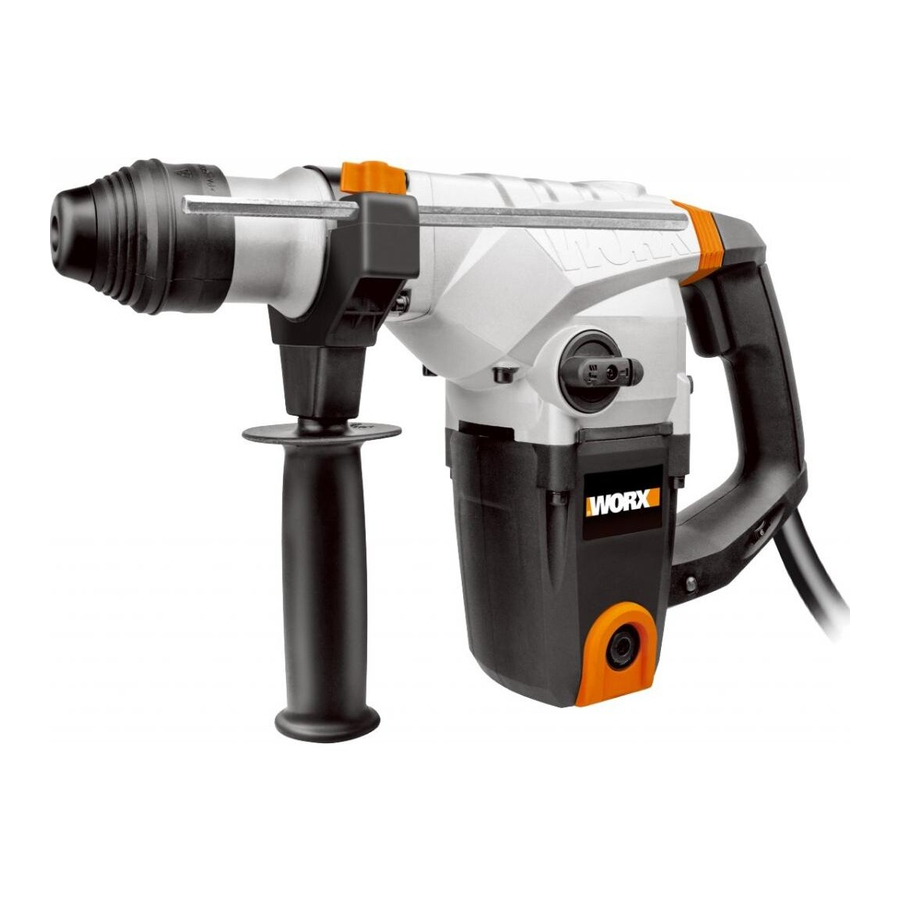

Rotary hammer
Hide thumbs Also See for WX333:
Table of Contents

Advertisement

Quick Links

See also: Manual
物料号：
材料：80克双胶纸
颜色：1色（黑）
尺寸：A5
页数：1 P
装订方式：骑马钉
备注：
特别提示：
此小页为说明书印刷要求，不需要输出菲林,
不作为印刷内容。

Advertisement

Table of Contents
loading

Related Manuals for Worx WX333

Summary of Contents for Worx WX333

  • Page 1 物料号： 材料：80克双胶纸 颜色：1色（黑） 尺寸：A5 页数：1 P 装订方式：骑马钉 备注： 特别提示： 此小页为说明书印刷要求，不需要输出菲林, 不作为印刷内容。...
  • Page 2 SAFETY AND OPERATING MANUAL Rotary hammer WX333...

  • Page 3: General Safety Rules

    The correct power tool will 6) If operating a power tool in a damp do the job better and safer at the rate for location is unavoidable, use a residual which it was designed. Rotary hammer WX333...
  • Page 4 17. Your hand must hold on the handle when to avoid a safety hazard. you are working. Always use the auxiliary handles supplied with the tool. Loss of control can cause personal injury. Rotary hammer WX333...

  • Page 5: Torque Limiter

    Double insulation As soon as the torque limiter actuates, switch off the tool immediately. This will help prevent premature wear of the tool. Warning Wear ear protection Wear eye protection Wear dust mask RCM approval mark Rotary hammer WX333...
  • Page 6 SDS DRILL bITS* SPANNER 10. KEy CHUCK WITH ADAPTOR, CHUCK KEy* 11. PLASTIC CONTAINER GREASE* 12. DUST COVER* 13. CHISELS (POINT & fLAT)* 14. AUxILIARy HANDLE * Not all the accessories illustrated or described are included in standard delivery. Rotary hammer WX333...

  • Page 7: Technical Data

    TECHNICAL DATA Voltage 220-240V~50/60Hz Power input 1250W Rated no load speed 0-750/min Impact rate 0-3700/min Rated impact energy 5.0J Chuck type SDS-plus Max drilling capacity Steel 13mm Masonry 32mm Wood 40mm Protection class Machine weight 6.1kg Rotary hammer WX333...
  • Page 8 Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Rotary hammer WX333...

  • Page 9: Operating Instructions

    3-jaw chuck. It enables you to work with non-SDS drill bits/tools. WARNING! The 3-jaw chuck is designed for wood and metal DRILLING work only. NEVER use this chuck with rotary hammer or chisel. THIS Rotary hammer WX333...
  • Page 10 “ pointing to the triangle . (see I) 2) Turn the hammer or drilling action selector switch pointing to the hammer action “ “ position. (see J) 3) You are now set up for chisel work using Chisel action. Rotary hammer WX333...

  • Page 11: Working Hints For Your Tool

    Open the grease box lid at the top of the hammer using the pin spanner provided. Then refill approx 30g grease provided with your tool. The grease specification is general purpose lithium based. Use only Worx genuine hammer grease (optional accessory). CAUTION: Keep the container of grease away from children.

  • Page 12: Maintenance

    MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place.
  • Page 13 Copyright © 2009, Positec. All Rights Reserved.
